RM36D0EC _52 Drivetrain _083071 AXLE AND DIFFERENTIAL _0403012 STEERING KNUCKLE A

AXLE AND DIFFERENTIAL  STEERING KNUCKLE  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during steering knuckle removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model:)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Front wheel alignment adjustment
1.

Perform "Reset Memory"

2.

Perform "Calibration"


·

DTCs are stored

·

ABS warning light illuminates

·

Brake warning light / yellow (minor malfunction) illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system disabled or malfunctions


(Click here)

HINT:
for HV Model:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane tracing assist system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power back door function Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -

·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model:)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Front wheel alignment adjustment
1.

Perform "Reset Memory"

2.

Perform acceleration sensor zero point calibration and store system information memorization


·

VSC is disabled or malfunctions

·

DTCs are output

·

Slip indicator light illuminates

·

ABS warning light illuminates


(Click here)

HINT:
for Gasoline Model:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 43212 3.REMOVE STEERING KNUCKLE LH

a.

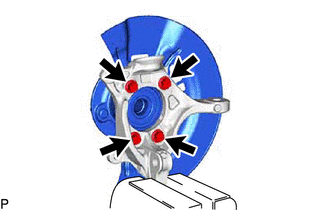

C407445

Secure the front axle assembly between aluminum plates in a vise.

NOTICE:

Do not overtighten the vise.



b.

Remove the 4 bolts, front axle hub sub-assembly and front disc brake dust cover from the steering knuckle.

NOTICE:
·

Do not drop the front axle hub sub-assembly.

·

Be careful not to damage the speed sensor rotor or contact surfaces.

·

Do not allow foreign matter to contact the speed sensor rotor or contact surfaces.
