RM36D0EC _58 Vehicle Interior _083094 THEFT DETERRENT / KEYLESS ENTRY _0403000 SMART ENTRY AND START SYSTEM(for Start Function, Gasoline Model) D

THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Start Function, Gasoline Model)  OPERATION CHECK


CHECK CUSTOMIZE PARAMETERS




CHECK PUSH-BUTTON START FUNCTION


a.

Check the push-button start function:

i.

Get into the vehicle while carrying the electrical key transmitter sub-assembly with the ignition switch off. With the shift position in P, check that the key indicator display is displayed when the brake pedal is depressed. Check that the engine starts when the engine switch is pressed after the key indicator display is displayed on the multi-information display.


ii.

While carrying the electrical key transmitter sub-assembly, check that the power source mode changes in the following order when the engine switch is pressed with the brake pedal released: off → ACC → ON → off.

HINT:

If the engine switch is pressed with the ignition switch ON and the shift position not in P, the power source mode will change to off, and shift position will change to P.



iii.
B581609C06
0.646,1.146 2.667,0.406 2.667,0.406 3,0.406 false 2.073,1.167 2.656,0.417 false 3.042,0.333 3.271,0.583 0.229,0.25 10 false *a
*a Electrical Key Transmitter Sub-assembly Inspection Point

The illustrations shown are examples only.

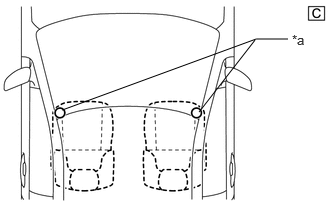

Check the push-button start function operation range for the front side. Place the electrical key transmitter sub-assembly at either inspection point so that it is facing the direction shown in the illustration, and then check that the engine can be started.

NOTICE:

Even if the electrical key transmitter sub-assembly is in a vehicle interior detection area, it may not be properly detected if it is on the instrument panel, in the glove box or on the floor.


HINT:
·

Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the No. 1 indoor electrical key antenna assembly (front floor).

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, Gasoline Model)>PARTS LOCATION

·

Perform this inspection for both inspection points.




iv.
B581610C06
0.688,0.375 2.677,1.417 2.677,1.417 3.01,1.417 false 2.042,0.396 2.667,1.417 false 3.052,1.344 3.281,1.594 0.229,0.25 10 false *a
*a Electrical Key Transmitter Sub-assembly Inspection Point

The illustrations shown are examples only.

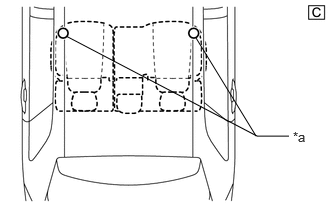

Check the push-button start function operation range for the rear side. Place the electrical key transmitter sub-assembly at either inspection point so that it is facing the direction shown in the illustration, and then check that the engine can be started.

NOTICE:

Even if the electrical key transmitter sub-assembly is in a vehicle interior detection area, it may not be properly detected if it is on the instrument panel, in the glove box or on the floor.


HINT:
·

Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the center of the No. 1 indoor electrical key antenna assembly (rear floor).

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, Gasoline Model)>PARTS LOCATION

·

Perform this inspection for both inspection points.




v.
B581612C03
1.365,1.677 2.667,0.333 2.667,0.333 3,0.333 false 1.958,1.292 2.667,0.333 false 3.052,0.271 3.281,0.521 0.229,0.25 10 false *a
*a Electrical Key Transmitter Sub-assembly Inspection Point

The illustrations shown are examples only.

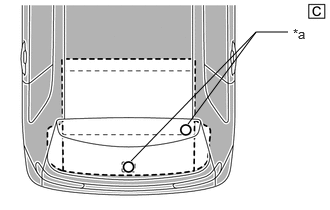

Check the push-button start function operation range for the luggage compartment. Place the electrical key transmitter sub-assembly at either inspection point so that it is facing the direction shown in the illustration, and then check that the engine can be started.

NOTICE:

Even if the electrical key transmitter sub-assembly is in a vehicle interior detection area, it may not be properly detected if it is on the instrument panel, in the glove box or on the floor.


HINT:
·

Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the center of the No. 1 indoor electrical key antenna assembly (inside luggage compartment).

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, Gasoline Model)>PARTS LOCATION

·

Perform this inspection for both inspection points.






CHECK POWER SOURCE MODE CHANGING FUNCTION


a.

Check that the power source mode changes according to the chart below.

Shift Position Brake Pedal Power Source Mode when Engine Switch Pressed
P Released Off → ACC → ON → off
P Released Engine running → off
P Depressed Off → engine starts
P Depressed ACC → engine starts
P Depressed ON → engine starts
P Depressed Engine running → off
Not P Released ON → off
Not P Released Engine running → off
Not P Depressed ON → off
Not P Depressed Engine running → off



CHECK TRANSMITTER BATTERY SAVING MODE FUNCTION


a.

Check the transmitter battery saving mode function:

i.

Press the unlock switch of the electrical key transmitter sub-assembly twice while pressing the lock switch and check that the electrical key transmitter sub-assembly LED blinks 4 times and enters transmitter battery saving mode.


ii.

Check that the smart entry and start system does not operate while in transmitter battery saving mode.

HINT:

To cancel transmitter battery saving mode, press a switch of the electrical key transmitter sub-assembly.





CHECK ENTRY CANCEL FUNCTION


a.

Disable the smart entry and start system and check that all functions of the smart entry and start system no longer operate.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function, Gasoline Model)>CUSTOMIZE PARAMETERS

HINT:

When the smart entry and start system is disabled, it is possible to lock and unlock the doors with the wireless function, and the engine can be started by holding the electrical key transmitter sub-assembly near the engine switch.
