SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM(for SFTM Made)  B009583  Right Frontal Restraints Sensor Value of Signal Protection Calculation Incorrect


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Test Mode / Check Mode
B009583 Right Frontal Restraints Sensor Value of Signal Protection Calculation Incorrect One of the following conditions is met:
·

Front airbag sensor RH malfunction

·

Airbag ECU assembly malfunction


·

Front airbag sensor RH

·

Airbag ECU assembly


Comes on Not applicable

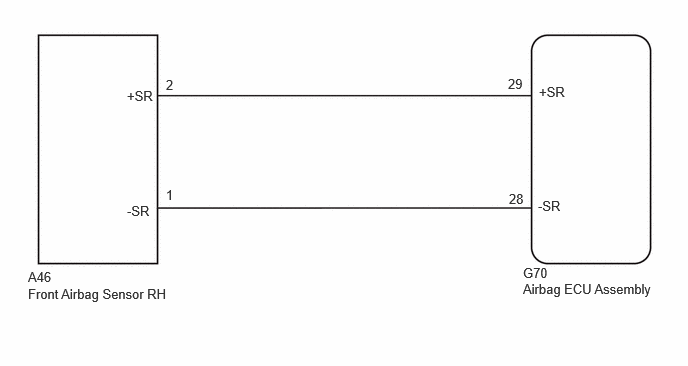

WIRING DIAGRAM

E511531E03
5.448,2.927 7.052,3.156 1.604,0.229 10 false Airbag ECU Assembly 5.448,2.76 5.906,2.927 0.458,0.167 10 false G70 5.292,0.792 5.75,1.094 0.458,0.302 10 false 29 5.302,1.99 6.052,2.365 0.75,0.375 10 false 28 5.615,0.875 6.073,1.177 0.458,0.302 10 false +SR 5.604,2.063 6.354,2.438 0.75,0.375 10 false -SR 1.729,0.802 2.188,1.104 0.458,0.302 10 false 2 1.729,1.948 2.188,2.25 0.458,0.302 10 false 1 1.323,0.917 1.781,1.219 0.458,0.302 10 false +SR 1.323,2.115 2.073,2.49 0.75,0.375 10 false -SR 0.292,2.802 0.958,2.979 0.667,0.177 10 false A46 0.292,2.979 1.948,3.188 1.656,0.208 10 false Front Airbag Sensor RH

CAUTION / NOTICE / HINT

NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

After replacing the airbag ECU assembly, refer to initialization.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE



PROCEDURE

1.CHECK DTC
a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444

Result:
Proceed to
DTC B009583 is output
DTC B009583 is not output



DTC B009583 is output

2.CHECK CONNECTION OF CONNECTORS

DTC B009583 is not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


2.CHECK CONNECTION OF CONNECTORS
a.

Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


c.

Check that the connectors are properly connected to the airbag ECU assembly and front airbag sensor RH.

OK:

The connectors are properly connected.



Result:
Proceed to
OK
NG



OK

3.CHECK FRONT AIRBAG SENSOR RH

NG

CONNECT CONNECTORS PROPERLY

3.CHECK FRONT AIRBAG SENSOR RH
a.
C413953C01
0.646,1.292 0.958,1.49 0.313,0.198 10 false *1 2.365,1.385 2.677,1.583 0.313,0.198 10 false *2 1.552,0.594 1.865,0.792 0.313,0.198 10 false *3
*1 Front Airbag Sensor LH
*2 Airbag ECU Assembly
*3 Wire Harness


Connect the airbag ECU assembly connector.


b.

Interchange the front airbag sensor RH with LH and connect the connectors.


c.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


e.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444

f.

Turn the ignition switch off.


g.

Turn the ignition switch to ON, and wait for at least 60 seconds.


h.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Proceed to
DTC B009583 is output
DTC B009083 is output



i.

Turn the ignition switch off.


j.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


k.

Return the front airbag sensor RH and LH to their original positions and connect the connectors.



DTC B009583 is output

REPLACE AIRBAG ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


DTC B009083 is output

REPLACE FRONT AIRBAG SENSOR RH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT AIRBAG SENSOR>REMOVAL
