OPERATION OF OUTER REAR VIEW MIRROR INDICATOR AND RCTA BUZZER

Initial check

When the blind spot monitor system is turned on with the ignition switch ON, the outer rear view mirror indicators on the outer rear view mirror assembly illuminate for 3 seconds.

ii.

When the ignition switch is turned from off to ON with the blind spot monitor system on, the outer rear view mirror indicators on the outer rear view mirror assembly illuminate for 3 seconds.

Operation for each function

Operation for blind spot monitor function

When a sensor detects a vehicle in the blind spot area or a vehicle is rapidly approaching the blind spot from behind the vehicle, the outer rear view mirror indicator on the outer rear view mirror assembly illuminates.

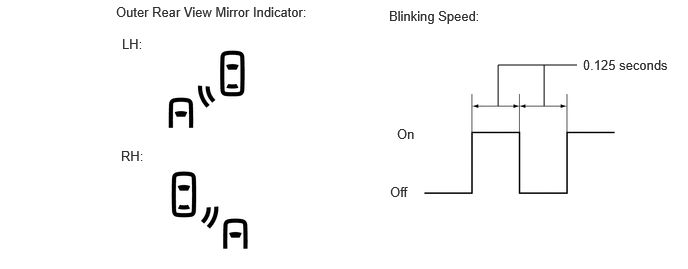

If the turn signal switch is operated, while the sensor is detecting a vehicle in the detection area and the outer rear view mirror indicator on the outer rear view mirror assembly is illuminated, the indicator starts blinking as shown in the illustration.

5.188,1.104 5.188,0.677 5.188,0.677 6.01,0.677 false 5.667,1.104 5.667,0.677 false 1.208,0.042 3.51,0.365 2.302,0.323 10 false Outer Rear View Mirror Indicator: 1.271,0.375 1.729,0.573 0.458,0.198 10 false LH: 1.26,1.542 1.719,1.74 0.458,0.198 10 false RH: 4.052,0.083 5.198,0.344 1.146,0.26 10 false Blinking Speed: 4.135,1.313 4.594,1.51 0.458,0.198 10 false On 4.063,1.917 4.521,2.115 0.458,0.198 10 false Off 6.073,0.594 7.042,0.917 0.969,0.323 10 false 0.125 seconds

ii.

Operation for RCTA function

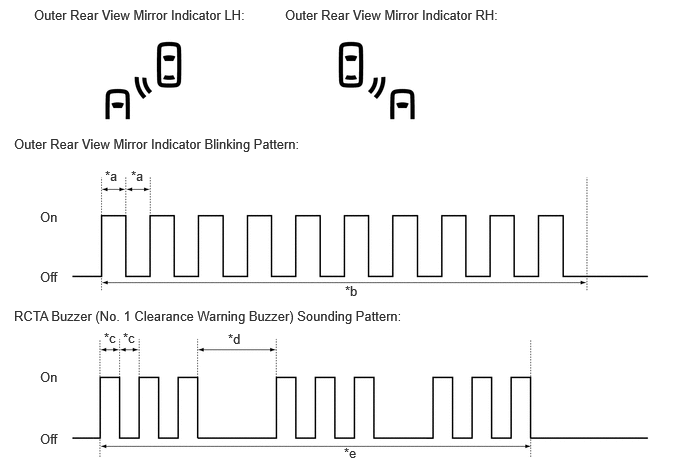

When all of the operation conditions for the RCTA function are met, the outer rear view mirror indicators on the outer rear view mirror assembly blink for 2.5 seconds and the RCTA buzzer (No. 1 clearance warning buzzer) sounds for 2.3 seconds as shown in the illustration.

2.969,0.073 5.229,0.26 2.26,0.188 10 false Outer Rear View Mirror Indicator RH: 0.354,0.073 2.615,0.26 2.26,0.188 10 false Outer Rear View Mirror Indicator LH: 0.146,1.417 3.219,1.604 3.073,0.188 10 false Outer Rear View Mirror Indicator Blinking Pattern: 0.146,3.208 4.927,3.417 4.781,0.208 10 false RCTA Buzzer (No. 1 Clearance Warning Buzzer) Sounding Pattern: 0.417,2.177 0.729,2.375 0.313,0.198 10 false On 0.417,3.844 0.729,4.042 0.313,0.198 10 false On 0.417,2.802 0.729,3 0.313,0.198 10 false Off 0.417,4.49 0.729,4.688 0.313,0.198 10 false Off 1.094,1.75 1.333,1.969 0.24,0.219 10 false *a 1.365,1.75 1.604,1.969 0.24,0.219 10 false *a 3.594,2.948 3.833,3.167 0.24,0.219 10 false *b 1.083,3.438 1.323,3.656 0.24,0.219 10 false *c 1.281,3.438 1.521,3.656 0.24,0.219 10 false *c 2.375,3.448 2.615,3.667 0.24,0.219 10 false *d 3.583,4.635 3.854,4.792 0.271,0.156 10 false *e

*a	0.125 Seconds	*b	2.5 Seconds
*c	0.1 Seconds	*d	0.4 Seconds
*e	2.3 Seconds	-	-
