Suspension
_083075
TIRE PRESSURE MONITORING
_0403331
TIRE PRESSURE WARNING SYSTEM
U
TIRE PRESSURE MONITORING TIRE PRESSURE WARNING SYSTEM TERMINALS OF ECU
CHECK TIRE PRESSURE WARNING ECU AND RECEIVER
2.156,0.854 2.625,1.083
0.469,0.229
2.302,0.896 2.615,1.094
0.313,0.198
10
false
M8
0.156,0.135 0.469,0.333
0.313,0.198
10
false
*a

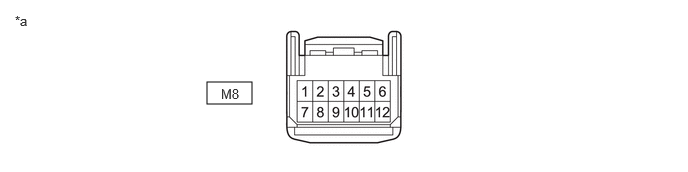

| *a | Front view of wire harness connector
(to Tire Pressure Warning ECU and Receiver) |
- | - |
a.
Disconnect the tire pressure warning ECU and receiver connector and measure the voltage or resistance on the wire harness side.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
|
*1: except Gasoline Model without Smart Entry and Start System *2: for Gasoline Model without Smart Entry and Start System |
|||
| M8-1 (IG*1) - M8-12 (GND) | IG power source | Ignition switch ON | 10 to 16 V |
| M8-1 (IGR*2) - M8-12 (GND) | IG power source | Ignition switch ON | 10 to 16 V |
| M8-7 (+B) - M8-12 (GND) | Power supply (from battery) | Always | 10 to 16 V |
| M8-9 (CANH) - M8-10 (CANL) | CAN communication line | Ignition switch off | 54 to 69 Ω |
| M8-12 (GND) - Body ground | Ground | Always | Below 1 Ω |
