RM36D0EC _52 Drivetrain _138817 K121F CVT _0584988 SHIFT LEVER POSITION SENSOR A

K121F CVT  SHIFT LEVER POSITION SENSOR  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during shift lever position sensor removal/installation are shown below.

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane tracing assist system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Power back door system

Power back door function* Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -



PROCEDURE

Hide 1.SECURE VEHICLE

a.

Fully apply the parking brake and chock a wheel.

CAUTION:
·
C332327

Make sure to apply the parking brake and chock a wheel before performing this procedure.

·

If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.




Hide 33820B 5.DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

a.

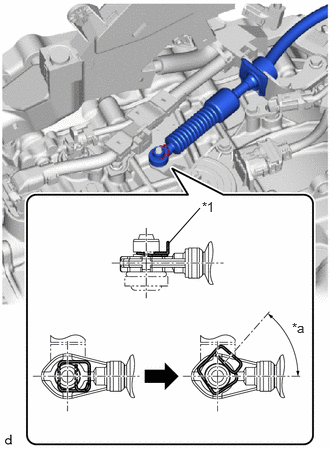

C398811C01
1.75,2.542 2.083,2.167 false 2.104,2.073 2.417,2.229 0.313,0.156 10 false *1 3.042,3.333 3.354,3.49 0.313,0.156 10 false *a
*1 Clip
*a 45° to 60°


While disengaging the clip as shown in the illustration, disconnect the transmission control cable assembly from the transmission control shaft lever together with the clip.


b.

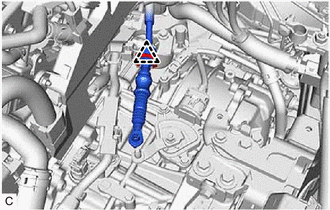

C400909

Remove the clip and disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.


Hide 84540 6.REMOVE SHIFT LEVER POSITION SENSOR

a.

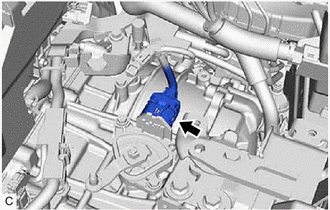

C400910

Disconnect the shift lever positon sensor connector.


b.

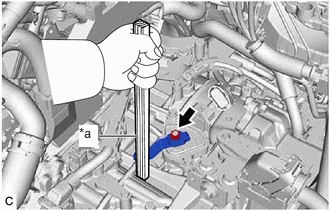

C416212C01
1.031,1.417 1.417,1.417 true 0.823,1.302 1.021,1.531 0.198,0.229 10 true *a
*a Piece of Wood or Equivalent


Using a piece of wood or equivalent to secure the transmission control shaft lever to prevent it from rotating, remove the nut, washer and transmission control shaft lever from the manual valve lever shaft.


c.

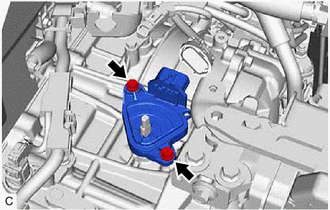

C400912

Remove the 2 bolts and shift lever positon sensor from the transaxle case sub-assembly.
