K121F CVT OIL COOLER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the transmission oil cooler removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedure	Effect/Inoperative when not Performed	Link
CVT fluid	ATF thermal degradation estimate reset	The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	(202409,999999,_52,_138817,_0596468,RM100000002NRBH,)
CVT fluid	Air bleed oil pump with motor assembly	Stop and start system	(202409,999999,_51,_083056,_0402418,RM100000002NSFT,)

PROCEDURE

Hide Display 53895B 1.REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0303,

Hide Display 53896B 2.REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0304,

Hide Display 51441 3.REMOVE NO. 1 ENGINE UNDER COVER

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0003,

Hide Display 51420 4.REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0004,

Hide Display 53737D 5.REMOVE FRONT FENDER APRON SEAL LH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0141,

Hide Display 6.DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

Click hereDrivetrain>K121F (CVT)>OIL PAN>REMOVAL202409,999999,_52,_138817,_0584980,RM100000002NGKD_02_0033,

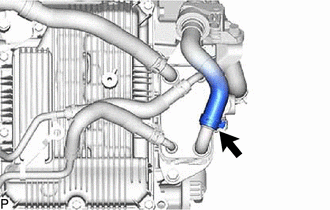

Hide Display 16261G 7.DISCONNECT NO. 1 WATER BY-PASS HOSE

Slide the hose clip and disconnect the No. 1 water by-pass hose from the transmission oil cooler.

Hide Display 16264D 8.DISCONNECT NO. 2 WATER BY-PASS HOSE

Slide the hose clip and disconnect the No. 2 water by-pass hose from the transmission oil cooler.

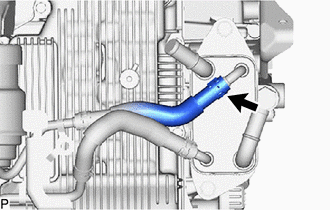

Hide Display 32942N 9.DISCONNECT NO. 1 OIL COOLER OUTLET HOSE

Slide the hose clip and disconnect the No. 1 oil cooler outlet hose from the transmission oil cooler.

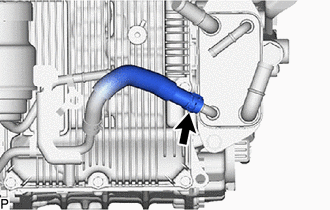

Hide Display 32941R 10.DISCONNECT OIL COOLER INLET HOSE

Slide the hose clip and disconnect the oil cooler inlet hose from the transmission oil cooler.

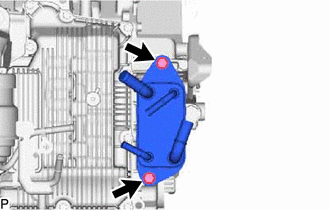

Hide Display 33493C 11.REMOVE TRANSMISSION OIL COOLER

Remove the 2 bolts and transmission oil cooler from the continuously variable transaxle assembly.

HINT:: Use a container to catch any coolant and CVT fluid which flow out of the transmission oil cooler.
