The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front seat outer belt assembly removal/installation are shown below.
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.
for HV Model:
Learning completes when vehicle is driven
| Effect/Inoperative Function when Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Lane tracing assist system | Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. | ( 201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
|
| Pre-collision system |
Learning completes when vehicle is operated normally
| Effect/Inoperative Function when Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Power back door function | Fully close the back door by hand.
|
( 202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
|
| Power door lock control system | If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. | ( 202409,999999,_58,_083092,_0403003,RM100000002NS90,)
|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor standard position is recognized | - |
for Gasoline Model:
Learning completes when vehicle is driven
| Effect/Inoperative Function when Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Stop and start system | Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). | ( 202409,999999,_51,_083056,_0402418,RM100000002NSFO,)
|
| Lane tracing assist system | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. | ( 201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
|
| Pre-collision system |
Learning completes when vehicle is operated normally
| Effect/Inoperative Function when Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
|
*: w/ Power back door system |
||
| Power back door function* | Fully close the back door by hand.
|
( 202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
|
| Power door lock control system | If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. | ( 202409,999999,_58,_083092,_0403003,RM100000002NS90,)
|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor standard position is recognized | - |
Use the same procedure for the RH and LH sides.
The following procedure is for the LH side.
1. PRECAUTION
Be sure to read precaution thoroughly before servicing.
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
If the airbag deploys for any reason, it may cause a serious accident.
for M20C-FKS:
Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0418197,RM100000002NHPI,
for M20D-FKS:
Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0403617,RM100000002NHPJ,
3.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)
72693
4.REMOVE REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)
67914B
5.REMOVE FRONT DOOR SCUFF PLATE LH
62312B
6.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Pull back the front door opening trim weatherstrip LH so that the lower center pillar garnish LH can be removed.
67918E
7.REMOVE REAR DOOR SCUFF PLATE LH
62332C
8.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
Pull back the rear door opening trim weatherstrip LH so that the lower center pillar garnish LH can be removed.
73233
9.REMOVE LAP BELT OUTER ANCHOR COVER
Detach the claw and guide and remove the lap belt outer anchor cover.
73220
10.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)
Remove the bolt and the floor anchor of the front seat outer belt assembly LH.
62414A
11.REMOVE LOWER CENTER PILLAR GARNISH LH
62412
12.REMOVE CENTER PILLAR GARNISH LH
73220
13.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH
Remove the nut and the shoulder anchor of the front seat outer belt assembly LH.
| *a | Locking Button |
|
Remove in this Direction |
|
Protective Tape |

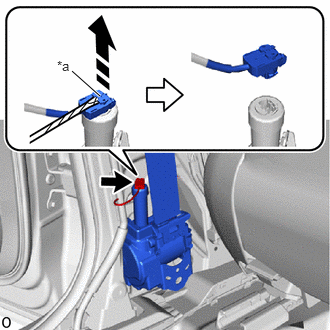

Using a thin-bladed screwdriver, pull out the locking button to release the lock to disconnect the pretensioner connector as shown in the illustration.
Tape the thin-bladed screwdriver tip before use.
Remove the bolt.
Detach the guide and remove the front seat outer belt assembly LH.
73200A
14.REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY
Perform this procedure when replacing the front shoulder belt anchor adjuster assembly.

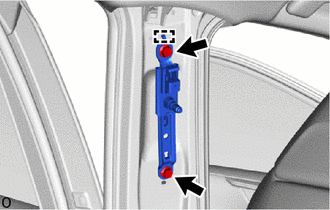

Remove the 2 bolts.
Detach the guide and remove the front shoulder belt anchor adjuster assembly.
73024
15.REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH
Perform this procedure when replacing the front shoulder belt anchor plate sub-assembly LH.
Detach the guide and remove the front shoulder belt anchor plate sub-assembly LH.
