RM36D0EC _58 Vehicle Interior _083102 SEAT _0419056 FRONT SEAT ASSEMBLY(for SFTM Made Power Seat) A

SEAT  FRONT SEAT ASSEMBLY(for SFTM Made Power Seat)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front seat assembly removal/installation are shown below.

CAUTION:
·
B543257

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



NOTICE:
·

If the front seat airbag assembly was deployed, replace the front seat airbag assembly, front seatback frame sub-assembly, separate type front seatback pad and separate type front seatback cover with the necessary parts in accordance with the extent of the collision damage.

·

Replace any other damaged parts as necessary.



HINT:
·

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

·

for HV Model:

-

Learning completes when vehicle is driven

Effect/Inoperative Function when Necessary Procedures are not Performed Necessary Procedures Link
Lane tracing assist system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. (Click here)
Pre-collision system

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedures are not Performed Necessary Procedures Link
Power back door function Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -


·

for Gasoline Model:

-

Learning completes when vehicle is driven

Effect/Inoperative Function when Necessary Procedures are not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane tracing assist system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Power back door system

Power back door function* Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -



·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1. PRECAUTION

CAUTION:
B458500

Be sure to read precaution thoroughly before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>PRECAUTION


NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 71910A 2.REMOVE FRONT SEAT HEADREST ASSEMBLY

a.

Remove the front seat headrest assembly from the front seat assembly LH.


Hide 72128A 3.REMOVE FRONT INNER SEAT TRACK BRACKET COVER LH

a.

Operate the slide and vertical power seat switch knob and move the front seat assembly LH to the rearmost position.


b.

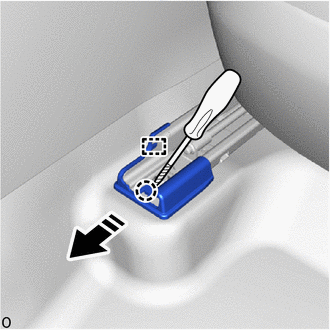

B553632C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.



c.

Detach the guide and remove the front inner seat track bracket cover LH as shown in the illustration.


Hide 72124C 4.REMOVE FRONT OUTER SEAT TRACK BRACKET COVER LH

HINT:

Use the same procedure described for the inner side.


Hide 72138H 5.REMOVE REAR INNER SEAT TRACK BRACKET COVER LH

a.

Operate the slide and vertical power seat switch knob and move the front seat assembly LH to the frontmost position.


b.
B553634C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.



c.

Detach the guide and remove the rear inner seat track bracket cover LH as shown in the illustration.


Hide 72138J 6.REMOVE REAR OUTER SEAT TRACK BRACKET COVER LH

HINT:

Use the same procedure described for the inner side.


Hide 7.REMOVE FRONT SEAT ASSEMBLY LH

a.
B553636

Using a T50 "TORX" socket wrench, remove the 2 bolts.


b.

Operate the slide and vertical power seat switch knob and move the front seat assembly LH to the rearmost position.


c.

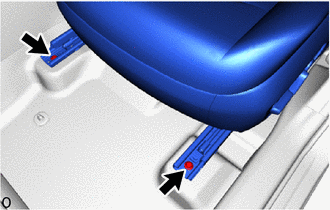

B553637

Using a T50 "TORX" socket wrench, remove the 2 bolts.


d.

Operate the reclining power seat switch knob and move the seatback of the front seat assembly LH so that it is perpendicular.


e.

Operate the slide and vertical power seat switch knob and move the front seat assembly LH to the center position.


f.

for Driver Side:

i.

Operate the slide and vertical power seat switch knob and move the front seat assembly LH to the uppermost position.



g.

Disconnect the cable from the negative (-) auxiliary battery terminal.



iii.

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>REMOVAL

CAUTION:
·
B394718

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.





h.

Tilt the front seat assembly LH backward.

NOTICE:

Be careful not to damage the front seat assembly LH or interior parts.



i.

Disconnect the connector of the front seat airbag assembly.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR



j.

Disconnect each connector under the front seat assembly LH.


k.

Detach each clamp and remove the floor wire from the front seat assembly LH.


l.

Remove the front seat assembly LH.

NOTICE:
·

2 or more people are required when carrying the front seat assembly LH out of the vehicle.

·

Protect the front seat legs.

·

Be careful not to damage the front seat assembly LH, body exterior or interior parts.
