RM36D0EC _58 Vehicle Interior _083102 SEAT _0419055 FRONT SEAT ASSEMBLY(for GTMC Made Manual Seat) A

SEAT  FRONT SEAT ASSEMBLY(for GTMC Made Manual Seat)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front seat assembly removal/installation are shown below.

CAUTION:
·
B543257

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



NOTICE:
·

If the front seat airbag assembly was deployed, replace the front seat airbag assembly, front seatback frame sub-assembly, separate type front seatback pad and separate type front seatback cover with the necessary parts in accordance with the extent of the collision damage.

·

Replace any other damaged parts as necessary.



HINT:
·

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

·

for HV Model:

-

Learning completes when vehicle is driven

Effect/Inoperative Function when Necessary Procedures are not Performed Necessary Procedures Link
Lane tracing assist system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. (Click here)
Pre-collision system

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedures are not Performed Necessary Procedures Link
Power back door function Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -


·

for Gasoline Model:

-

Learning completes when vehicle is driven

Effect/Inoperative Function when Necessary Procedures are not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane tracing assist system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Power back door system

Power back door function* Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -



·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1. PRECAUTION

CAUTION:
B458500

Be sure to read precaution thoroughly before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>PRECAUTION


NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL


CAUTION:
B422343

·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.



Hide 71910A 3.REMOVE FRONT SEAT HEADREST ASSEMBLY

a.

Remove the front seat headrest assembly from the front seat assembly LH.


Hide 72124C 4.REMOVE FRONT OUTER SEAT TRACK BRACKET COVER LH

a.

Operate the seat track adjusting handle and move the front seat assembly LH to the rearmost position.


b.

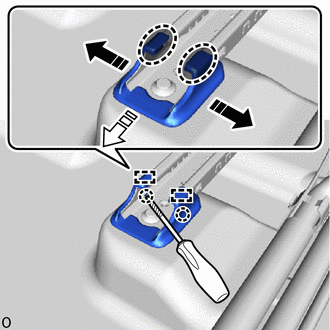

B521460C01
0,0 0,0 false
V113146

Place Hands Here
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.



c.

Place your hands at the position shown in the illustration and slide in the removal direction (2) while pulling in the removal direction (1) to detach the guide and remove the front outer seat track bracket cover LH.


Hide 72128A 5.REMOVE FRONT INNER SEAT TRACK BRACKET COVER LH

HINT:

Use the same procedure described for the front outer seat track bracket cover LH.


Hide 72138J 6.REMOVE FRONT SEAT TRACK REAR OUTER COVER LH

a.

Operate the seat track adjusting handle and move the front seat assembly LH to the frontmost position.


b.

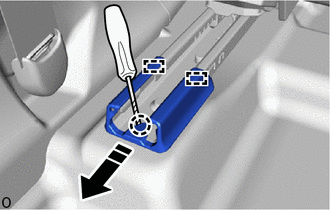

B521462C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.



c.

Pull in the removal direction shown in the illustration and detach the guide and remove the front seat track rear outer cover LH.


Hide 72138H 7.REMOVE FRONT SEAT TRACK REAR INNER COVER LH

a.

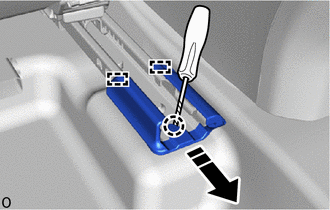

B521464C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.



b.

Pull in the removal direction shown in the illustration and detach the guide and remove the front seat track rear inner cover LH.


Hide 8.REMOVE FRONT SEAT ASSEMBLY LH

a.

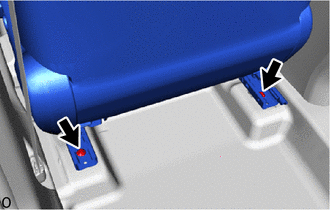

B521498

Using a T50 "TORX" socket wrench, remove the 2 "TORX" screws.


b.

Operate the seat track adjusting handle and move the front seat assembly LH to the rearmost position.


c.

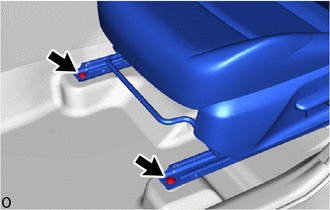

B570579

Using a T50 "TORX" socket wrench, remove the 2 "TORX" screws.


d.

Operate the seat track adjusting handle and move the front seat assembly LH to the center position.


e.

Operate the reclining adjuster release handle and move the seatback to the upright position.


f.

Tilt the front seat assembly LH backward.

NOTICE:

Be careful not to damage the front seat assembly LH or the interior parts.



g.

Disconnect the front seat airbag assembly LH connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR



h.

Disconnect each connector under the front seat assembly LH.


i.

Detach each clamp and remove the floor wire from the front seat assembly LH.


j.

Remove the front seat assembly LH as shown in the illustration.

NOTICE:
·

2 or more people are required when carrying the front seat assembly LH out of the vehicle.

·

Protect the front seat legs.

·

Be careful not to damage the front seat assembly LH, body exterior or interior parts.
