RM36D0EC _59 Vehicle Exterior _083111 EXTERIOR PANELS / TRIM _0400759 REAR DOOR BELT MOULDING A

EXTERIOR PANELS / TRIM REAR DOOR BELT MOULDING INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 68104 1.INSTALL REAR DOOR GLASS SUB-ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>REASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1S_01_0005,

Hide Display 68124C 2.INSTALL REAR DOOR QUARTER WINDOW GLASS LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>REASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1S_01_0007,

Hide Display 67408E 3.INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>REASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1S_01_0008,

Hide Display 68152C 4.INSTALL REAR DOOR GLASS RUN LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>REASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1S_01_0009,

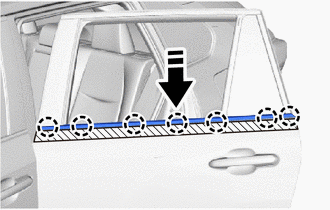

Hide Display 75740 5.INSTALL REAR DOOR BELT MOULDING ASSEMBLY LH

0,0 0,0 false

Install in this Direction

Attach the claw to install the rear door belt moulding assembly LH.

Remove the protective tape.

Hide Display 67674A 6.INSTALL REAR DOOR FRAME GARNISH LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>REASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1S_01_0018,

Hide Display 67842E 7.INSTALL REAR DOOR SERVICE HOLE COVER LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>REASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1S_01_0030,

Hide Display 68199 8.INSTALL REAR DOOR REAR BELT SEAL LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>REASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1S_01_0032,

Hide Display 68174A 9.INSTALL REAR DOOR INNER GLASS WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>REASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1S_01_0035,

Hide Display 67604 10.INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>REASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1S_01_0037,

Hide Display 11.INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>REASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1S_01_0040,

Hide Display 74646 12.INSTALL DOOR ASSIST GRIP COVER LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>REASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1S_01_0041,

Hide Display 69278C 13.INSTALL REAR DOOR INSIDE HANDLE BEZEL LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>REASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1S_01_0042,

Hide Display 14.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for M20D-FKS:

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403617,RM100000002A9CC,

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403618,RM100000002A9CD,

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0418197,RM100000002A9BV,

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0477834,RM100000002A9D9,

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>INSTALLATION202304,999999,_V1,_083136,_0486275,RM100000002A9DH,

Hide Display 15. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202409,999999,_V1,_083041,_0402304,RM100000002NY03,

Hide Display 16. INITIALIZE POWER WINDOW CONTROL SYSTEM

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>INITIALIZATION202409,999999,_59,_083107,_0400960,RM100000002NUSM,

Hide Display 17. CHECK POWER WINDOW CONTROL SYSTEM

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>OPERATION CHECK202304,999999,_59,_083107,_0400960,RM1000000029UDY,

Hide Display 18. CHECK POWER DOOR LOCK CONTROL SYSTEM

Click hereVehicle Interior>DOOR LOCK>POWER DOOR LOCK CONTROL SYSTEM>OPERATION CHECK202409,999999,_58,_083092,_0403003,RM100000002NS8Y,
