RM36D0EC _58 Vehicle Interior _083097 METER / GAUGE / DISPLAY _0400582 COMBINATION METER A

METER / GAUGE / DISPLAY  COMBINATION METER  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:

After replacing the combination meter assembly, make sure to perform update ECU security key.


PROCEDURE

Hide 83100 1.INSTALL COMBINATION METER ASSEMBLY

a.

except 12.3 Inch Display:

i.

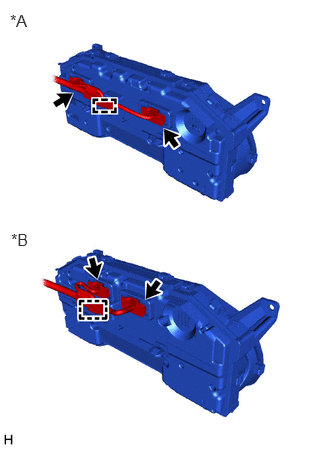

B523295C02
0.104,0.115 0.479,0.354 0.375,0.24 12 false *A 0.115,2.396 0.49,2.635 0.375,0.24 12 false *B
*A for 4.2 Inch Display
*B for 7 Inch Display


Connect the 2 connectors and attach the clamp.


ii.

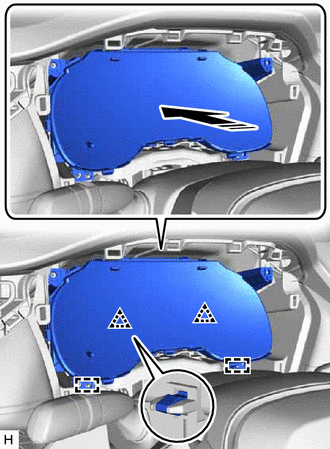

B523260C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and clip to install the combination meter assembly.


iii.
B523203

Install the 4 screws.



b.

for 12.3 Inch Display:

i.

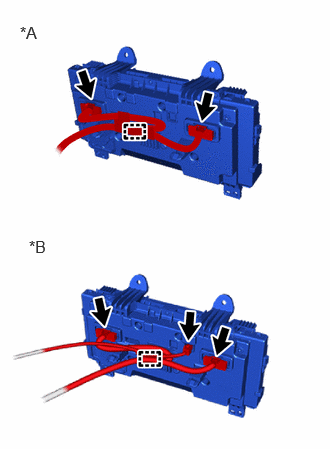

E512360C02
0.208,0.24 0.583,0.479 0.375,0.24 12 false *A 0.302,2.469 0.677,2.708 0.375,0.24 12 false *B
*A for Radio and Display Receiver Type
*B for Radio and Navigation Receiver Type


Connect the each connector and attach the clamp.


ii.

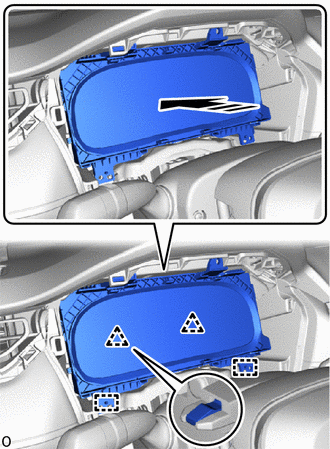

E462483C02
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and clip to install the combination meter assembly.


iii.
E462481

Install the 4 screws.
