DOOR / HATCH REAR DOOR DISASSEMBLY

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the rear door disassembly/reassembly are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
· Power window regulator motor assembly LH · Power window regulator motor assembly RH · Rear door window regulator sub-assembly LH · Rear door window regulator sub-assembly RH · Rear door glass sub-assembly LH · Rear door glass sub-assembly RH · Rear door glass run LH · Rear door glass run RH	· Auto up and down function · Jam protection function · Catch protection function · Remote control function · Wireless transmitter-linked function · Key-linked function · Key-off operation function · Window open warning function	Initialize power window control system	(202409,999999,_59,_083107,_0400960,RM100000002NUSM,)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lane tracing assist system	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.	(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
Pre-collision system		(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power back door function	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Power door lock control system	If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch.	(202409,999999,_58,_083092,_0403003,RM100000002NS90,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized	-

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
· Power window regulator motor assembly LH · Power window regulator motor assembly RH · Rear door window regulator sub-assembly LH · Rear door window regulator sub-assembly RH · Rear door glass sub-assembly LH · Rear door glass sub-assembly RH · Rear door glass run LH · Rear door glass run RH	· Auto up and down function · Jam protection function · Catch protection function · Remote control function · Wireless transmitter-linked function · Key-linked function · Key-off operation function · Window open warning function Power door lock control system	Initialize power window control system	(202409,999999,_59,_083107,_0400960,RM100000002NUSM,)

HINT:

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202409,999999,_51,_083056,_0402418,RM100000002NSFO,)
Lane tracing assist system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
Pre-collision system		(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Power back door system
Power back door function*	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Power door lock control system	If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch.	(202409,999999,_58,_083092,_0403003,RM100000002NS90,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized	-

Use the same procedure for the RH and LH sides.

The procedure below is for the LH side.

When removing the rear door glass sub-assembly LH, move the rear door glass sub-assembly LH to the lowest position before disconnecting the negative (-) auxiliary battery terminal.

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,999999,_V1,_083041,_0402304,RM100000002AYZV,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:: ·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0418197,RM100000002NHPI,

for M20D-FKS:

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0403617,RM100000002NHPJ,

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>REMOVAL202409,999999,_V1,_083136,_0403618,RM100000002NHPL,

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>REMOVAL202409,999999,_V1,_083136,_0477834,RM100000002NHPM,

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>REMOVAL202409,999999,_V1,_083136,_0486275,RM100000002NHPN,

Hide Display 69278C 3.REMOVE REAR DOOR INSIDE HANDLE BEZEL LH

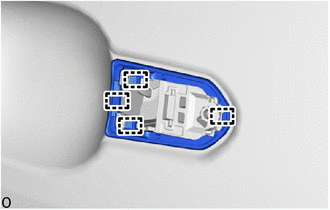

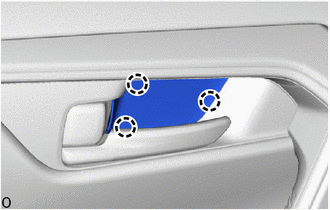

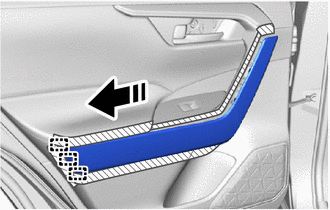

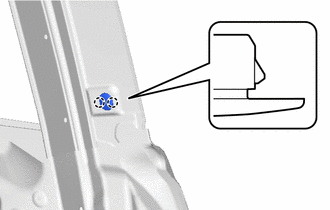

Detach the claw and remove the rear door inside handle bezel LH.

Hide Display 74646 4.REMOVE DOOR ASSIST GRIP COVER LH

0,0 0,0 false

Protective Tape

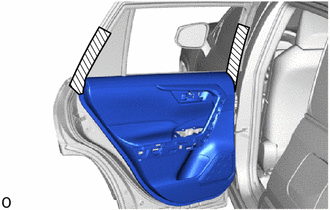

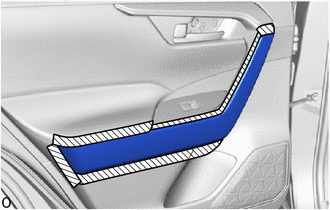

Apply protective tape to the rear door trim board sub-assembly LH as shown in the illustration.

1.792,1.115 1.938,1.292 0.146,0.177 10 true 1 1.844,1.896 1.99,2.073 0.146,0.177 10 true 1 2.115,1.052 2.26,1.229 0.146,0.177 10 true 1 2.75,1.313 2.896,1.49 0.146,0.177 10 true 1 2.927,0.979 3.073,1.156 0.146,0.177 10 true 2 2.313,0.75 2.458,0.927 0.146,0.177 10 true 2 3.063,0.313 3.208,0.49 0.146,0.177 10 true 3 1.375,1.229 1.521,1.406 0.146,0.177 10 true 2 1.563,1.885 1.708,2.063 0.146,0.177 10 true 2 1.021,2.042 1.167,2.219 0.146,0.177 10 true 3 0.927,1.365 1.073,1.542 0.146,0.177 10 true 3

Remove in this Direction

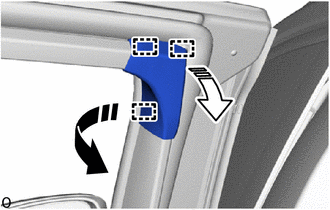

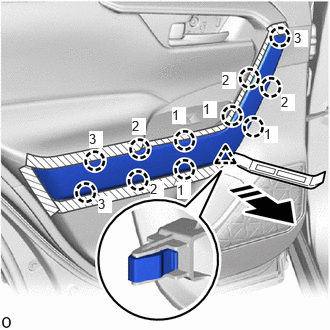

Using a moulding remover A, detach the clip.

Detach the claw in the order shown in the illustration.

0,0 0,0 false

Remove in this Direction

Detach the guide in the direction indicated by the arrow shown in the illustration and remove the door assist grip cover LH.

Hide Display 5.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

0,0 0,0 false

Protective Tape

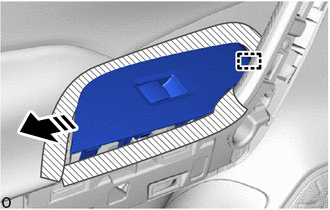

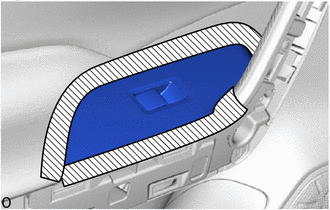

Apply protective tape around the rear power window regulator switch assembly with rear door armrest base panel.

0,0 0,0 false

Remove in this Direction

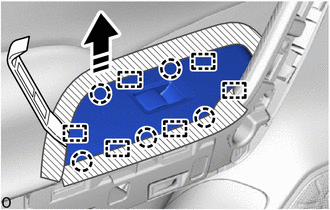

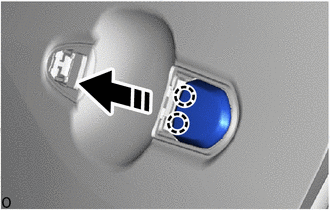

Using a moulding remover A, detach the guide and claw as shown in the illustration.

0,0 0,0 false

Remove in this Direction

Detach the guide in the direction indicated by the arrow shown in the illustration and remove the rear power window regulator switch assembly with rear door armrest base panel.

Disconnect the connector.

Hide Display 84810D 6.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW SWITCH (for Rear Door)>REMOVAL201910,999999,_59,_083107,_0400963,RM100000001JBD3_01_0002,

Hide Display 67604 7.REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

0,0 0,0 false

Protective Tape

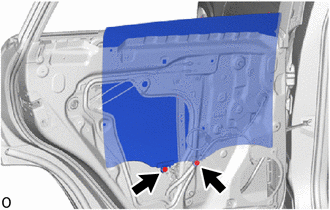

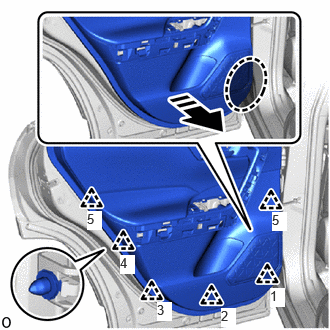

Apply protective tape to the rear door panel as shown in the illustration.

Remove the 3 screws.

2.813,3 2.969,3.198 0.156,0.198 10 true 1 2.302,3.208 2.458,3.406 0.156,0.198 10 true 2 1.635,3.146 1.792,3.344 0.156,0.198 10 true 3 0.906,2.198 1.063,2.396 0.156,0.198 10 true 5 1.25,2.656 1.406,2.854 0.156,0.198 10 true 4 2.833,2.208 2.99,2.406 0.156,0.198 10 true 5

	Place Hand Here
	Remove in this Direction

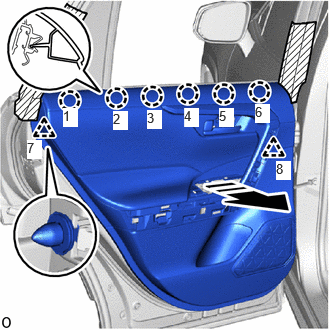

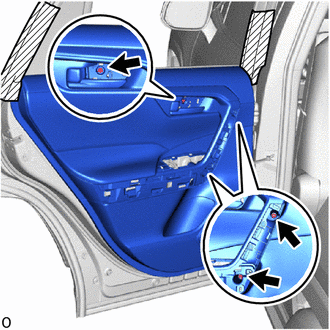

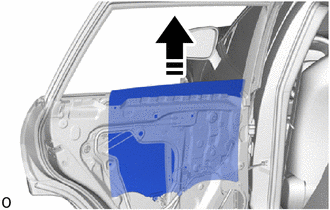

Place your hand at the position shown in the illustration, and while pulling the rear door trim board sub-assembly LH toward you, detach the clip and disconnect the rear door trim board sub-assembly LH from the rear door panel.

HINT:: ·

Detach the clip in the order shown in the illustration.

·

Securely detach the clip one by one.

0.656,1.125 0.813,1.323 0.156,0.198 10 true 1 1.177,1.156 1.333,1.354 0.156,0.198 10 true 2 1.531,1.146 1.688,1.344 0.156,0.198 10 true 3 1.917,1.125 2.073,1.323 0.156,0.198 10 true 4 2.281,1.125 2.438,1.323 0.156,0.198 10 true 5 2.656,1.083 2.813,1.281 0.156,0.198 10 true 6 0.281,1.458 0.438,1.656 0.156,0.198 10 true 7 2.875,1.677 3.031,1.875 0.156,0.198 10 true 8

Remove in this Direction

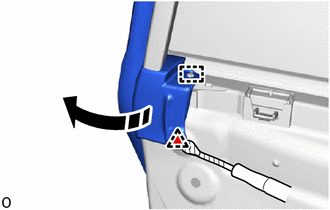

Pull the rear door trim board sub-assembly LH in the direction indicated by the arrow shown in the illustration to detach the claw and clip to remove the rear door trim board sub-assembly LH.

HINT:: Detach the claw and clip in the order shown in the illustration.

1.938,0.823 2.313,0.417 true 1.125,1.656 1.938,1.323 true 0.854,1.615 1.073,1.813 0.219,0.198 10 true *2 2.365,0.26 2.583,0.458 0.219,0.198 10 true *1

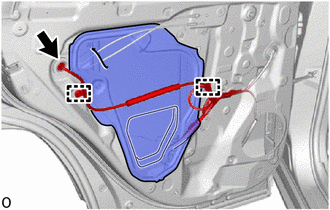

*1	Rear Door Inside Locking Cable Assembly
*2	Rear Door Lock Remote Control Cable Assembly
	Remove in this Direction

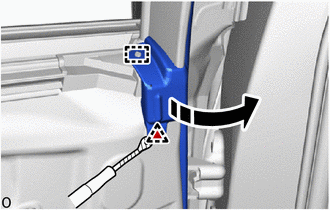

Detach the clamp and disconnect the rear door inside locking cable assembly and rear door lock remote control cable assembly in the direction indicated by the arrow shown in the illustration.

Hide Display 69206C 8.REMOVE REAR DOOR INSIDE HANDLE SUB-ASSEMBLY LH

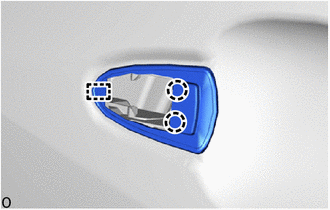

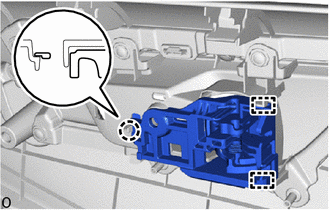

Detach the clamp and claw.

0,0 0,0 false

Remove in this Direction

Remove the rear door inside handle sub-assembly LH in the direction indicated by the arrow as shown in the illustration.

Hide Display 68174A 9.REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH

0,0 0,0 false

	Remove in this Direction
	Protective Tape

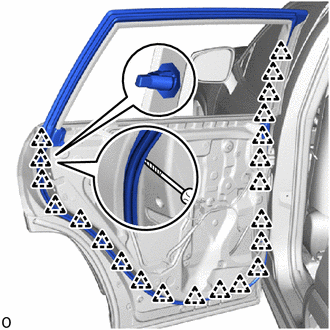

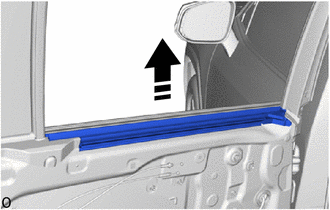

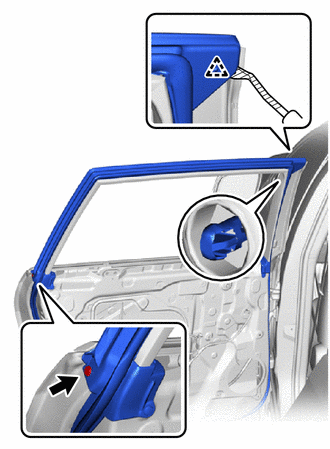

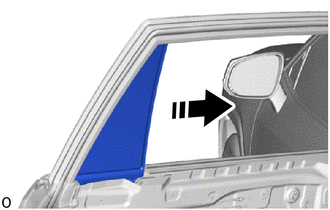

Using a clip remover with its tip wrapped with protective tape, detach the clip.

Detach the guide and pull back the rear door weatherstrip LH so that the rear door inner glass weatherstrip LH can be removed.

0,0 0,0 false

Remove in this Direction

Remove the rear door inner glass weatherstrip LH with rear door front belt seal LH as shown in the illustration.

Hide Display 68197A 10.REMOVE REAR DOOR FRONT BELT SEAL LH

0,0 0,0 false

Remove in this Direction

Remove the rear door front belt seal LH from the rear door inner glass weatherstrip LH as shown in the illustration.

Hide Display 68199 11.REMOVE REAR DOOR REAR BELT SEAL LH

0,0 0,0 false

	Remove in this Direction
	Protective Tape

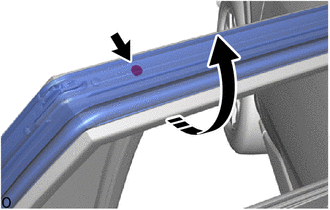

Using a clip remover with its tip wrapped with protective tape, detach the clip.

Detach the guide and pull back the rear door weatherstrip LH so that the rear door rear belt seal LH can be removed.

0,0 0,0 false

Remove in this Direction

Remove the rear door rear belt seal LH as shown in the illustration.

Hide Display 86160B 12.REMOVE REAR SPEAKER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>REAR DOOR SPEAKER>REMOVAL201910,999999,_56,_083086,_0400672,RM100000001J9BI_02_0012,

Hide Display 67842E 13.REMOVE REAR DOOR SERVICE HOLE COVER LH

Disconnect the connector and detach the clamp.

2.323,0.906 2.646,0.635 true 1.875,1.25 2.177,1.063 true 2.688,0.51 2.917,0.729 0.229,0.219 10 true *1 1.604,1.177 1.833,1.396 0.229,0.219 10 true *2

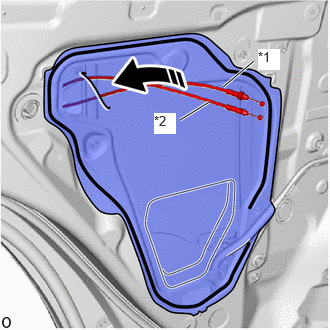

*1	Rear Door Lock Remote Control Cable Assembly
*2	Rear Door Inside Locking Cable Assembly
	Remove in this Direction

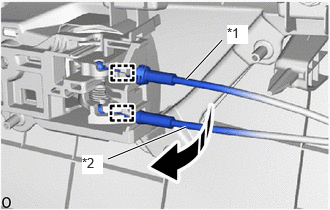

Pull out the rear door lock remote control cable assembly and rear door inside locking cable assembly from the rear door service hole cover LH, and then remove the rear door service hole cover LH.

HINT:: Remove any remaining butyl tape from the rear door panel.

Hide Display 67674A 14.REMOVE REAR DOOR FRAME GARNISH LH

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

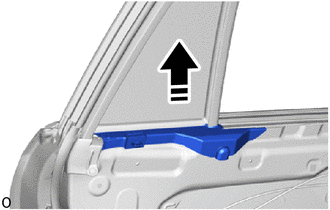

Detach the guide and remove the rear door frame garnish LH in the direction indicated by the arrows, in the order shown in the illustration.

Hide Display 68152C 15.DISCONNECT REAR DOOR GLASS RUN LH

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

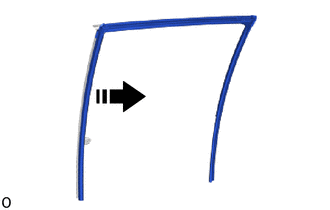

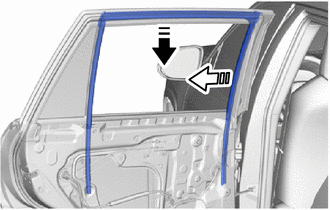

Disconnect the rear door glass run LH as shown in the illustration.

HINT:: Leave the rear side of the rear door glass run LH on the rear door window division bar sub-assembly LH.

Hide Display 67408E 16.REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH

0,0 0,0 false

Pull back in this Direction

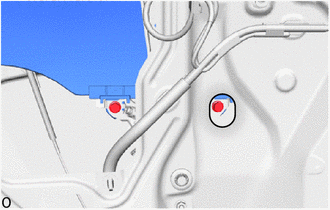

Pull back part of the rear door weatherstrip LH and remove the screw as shown in the illustration.

0,0 0,0 false

Remove in this Direction

Remove the 2 bolts and the rear door window division bar sub-assembly LH with rear door glass run LH in the direction of the arrow indicated in the illustration.

Hide Display 68152C 17.REMOVE REAR DOOR GLASS RUN LH

0,0 0,0 false

Remove in this Direction

Remove the rear door glass run LH from the rear door window division bar sub-assembly LH.

Hide Display 68124C 18.REMOVE REAR DOOR QUARTER WINDOW GLASS LH

0,0 0,0 false

Remove in this Direction

Remove the rear door quarter window glass LH with rear door quarter window weatherstrip LH as shown in the illustration.

Hide Display 68189 19.REMOVE REAR DOOR QUARTER WINDOW WEATHERSTRIP LH

Remove the rear door quarter window weatherstrip LH from the rear door quarter window glass LH.

Hide Display 68104 20.REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH

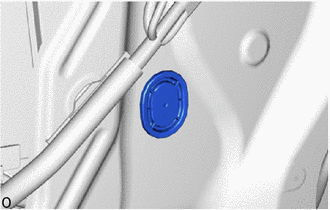

Remove the hole plug.

Connect the power window regulator switch assembly connector.

Connect the cable to the negative (-) auxiliary battery terminal.

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0418197,RM100000002A9BV_01_0015,

ii.

for M20D-FKS:

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403617,RM100000002A9CC_01_0015,

iii.

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403618,RM100000002A9CD_01_0015,

iv.

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0477834,RM100000002A9D9_01_0015,

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>INSTALLATION202304,999999,_V1,_083136,_0486275,RM100000002A9DH_01_0015,

Turn the ignition switch to ON.

Move the rear door glass sub-assembly LH until the installation bolts can be seen.

Turn the ignition switch off.

Disconnect the cable from the negative (-) auxiliary battery terminal.

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0418197,RM100000002NHPI_01_0013,

ii.

for M20D-FKS:

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0403617,RM100000002NHPJ_01_0013,

iii.

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>REMOVAL202409,999999,_V1,_083136,_0403618,RM100000002NHPL_01_0013,

iv.

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>REMOVAL202409,999999,_V1,_083136,_0477834,RM100000002NHPM_01_0013,

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>REMOVAL202409,999999,_V1,_083136,_0486275,RM100000002NHPN_01_0013,

Disconnect the power window regulator switch assembly connector.

Remove the 2 bolts.

NOTICE:: After the bolts are removed, do not allow the rear door glass sub-assembly to fall.

0,0 0,0 false

Remove in this Direction

Remove the rear door glass sub-assembly LH as shown in the illustration.

NOTICE:: Be careful not to damage the rear door glass sub-assembly LH.

Hide Display 69804 21.REMOVE REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY LH

0,0 0,0 false

	Nut
	Connector

Disconnect the connector.

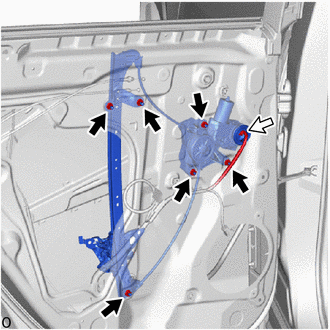

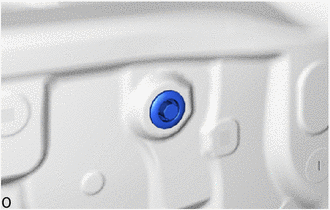

Remove the 6 nuts and the rear door window regulator sub-assembly LH.

NOTICE:: Do not damage the rear door panel with the rear door window regulator sub-assembly LH.

HINT:

0,0 0,0 false

Remove in this Direction

When removing the rear door window regulator sub-assembly LH, pull it out from the service hole as shown in the illustration.

Hide Display 85720D 22.REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW REGULATOR MOTOR (for Rear Door)>REMOVAL202409,999999,_59,_083107,_0400965,RM100000002NG1M_01_0001,

Hide Display 69060A 23.REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY LH

Click hereVehicle Interior>DOOR LOCK>REAR DOOR LOCK>REMOVAL202409,999999,_58,_083092,_0403681,RM100000002NG1H_02_0020,

Hide Display 69318D 24.REMOVE DOOR LOCK WIRING HARNESS SEAL

When reusing rear door lock with motor assembly LH:

Click hereVehicle Interior>DOOR LOCK>REAR DOOR LOCK>REMOVAL202409,999999,_58,_083092,_0403681,RM100000002NG1H_02_0022,

Hide Display 69038A 25.REMOVE REAR DOOR LOCK COVER SUB-ASSEMBLY LH

Click hereVehicle Interior>DOOR LOCK>REAR DOOR LOCK>REMOVAL202409,999999,_58,_083092,_0403681,RM100000002NG1H_02_0023,

Hide Display 69740E 26.REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

Click hereVehicle Interior>DOOR LOCK>REAR DOOR LOCK>REMOVAL202409,999999,_58,_083092,_0403681,RM100000002NG1H_02_0001,

Hide Display 69780E 27.REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY

Click hereVehicle Interior>DOOR LOCK>REAR DOOR LOCK>REMOVAL202409,999999,_58,_083092,_0403681,RM100000002NG1H_02_0002,

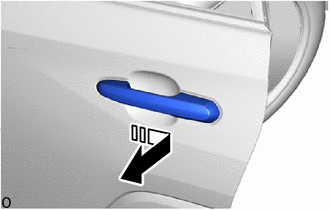

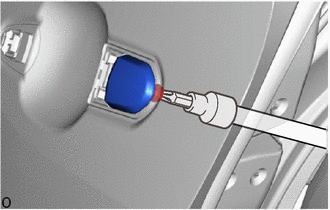

Hide Display 69240 28.REMOVE REAR DOOR OUTSIDE HANDLE ASSEMBLY LH

1.938,1.51 1.938,1.917 1.938,1.917 1.698,1.917 true 1.417,1.833 1.677,2.031 0.26,0.198 10 true *1

*1	Holder
	Remove in this Direction

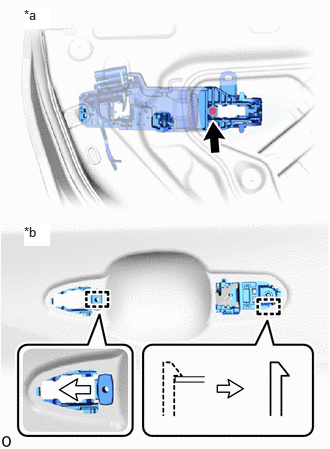

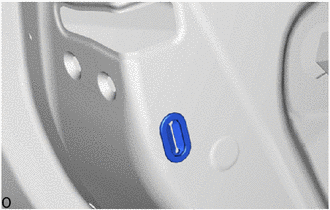

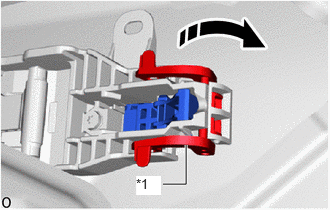

Detach the holder as shown in the illustration.

0,0 0,0 false

Remove in this Direction

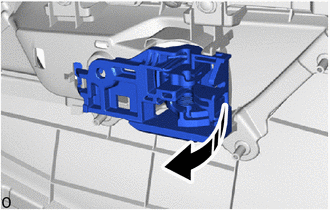

Remove the rear door outside handle assembly LH by sliding and pulling it in the direction indicated by the arrow in the illustration.

Hide Display 69227M 29.REMOVE REAR DOOR OUTSIDE HANDLE COVER

Using a T30 "TORX" socket wrench, loosen the "TORX" screw.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the rear door outside handle cover as shown in the illustration.

Hide Display 69241G 30.REMOVE REAR DOOR FRONT OUTSIDE HANDLE PAD

Detach the claw and guide to remove the rear door front outside handle pad.

Hide Display 69242G 31.REMOVE REAR DOOR REAR OUTSIDE HANDLE PAD

Detach the guide and remove the rear door rear outside handle pad.

Hide Display 69204A 32.REMOVE REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH

0.25,0.073 0.521,0.302 0.271,0.229 10 true *a 0.25,2.333 0.521,2.563 0.271,0.229 10 true *b

*a	Inside
*b	Outside

Using a T30 "TORX" socket wrench, loosen the "TORX" screw.

Detach the guide and remove the rear door outside handle frame sub-assembly LH.

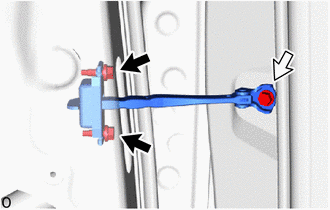

Hide Display 68630 33.REMOVE REAR DOOR CHECK ASSEMBLY

0,0 0,0 false

	Bolt (A)
	Bolt (B)

Remove the 2 bolts (A), bolt (B) and rear door check assembly.

Hide Display 67872 34.REMOVE REAR DOOR WEATHERSTRIP LH

0,0 0,0 false

Protective Tape

Using a clip remover with its tip wrapped with protective tape, detach the clip and remove the clip.

0,0 0,0 false

Protective Tape

Using a screwdriver with its tip wrapped with protective tape, detach the clip and remove the rear door weatherstrip LH.

Hide Display 75740 35.REMOVE REAR DOOR BELT MOULDING ASSEMBLY LH

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR DOOR BELT MOULDING>REMOVAL202409,999999,_59,_083111,_0400759,RM100000002NG2L_01_0199,

Hide Display 75762B 36.REMOVE REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR DOOR WINDOW FRAME MOULDING>REMOVAL202409,999999,_59,_083111,_0400762,RM100000002NG2Q_01_0164,

Hide Display 67846A 37.REMOVE REAR DOOR FRONT OUTSIDE SEAL LH

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR DOOR WINDOW FRAME MOULDING>REMOVAL202409,999999,_59,_083111,_0400762,RM100000002NG2Q_01_0165,

Hide Display 75792 38.REMOVE DOOR WINDOW FRAME MOULDING CLIP

HINT:: Perform the following procedure only when replacement of a door window frame moulding clip in necessary.

Detach the claw and remove the door window frame moulding clip.

Hide Display 75766B 39.REMOVE REAR DOOR WINDOW FRAME MOULDING LH (REAR PILLAR SIDE)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR DOOR WINDOW FRAME MOULDING>REMOVAL202409,999999,_59,_083111,_0400762,RM100000002NG2Q_01_0168,

Hide Display 75764A 40.REMOVE REAR DOOR UPPER WINDOW FRAME MOULDING LH

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR DOOR WINDOW FRAME MOULDING>REMOVAL202409,999999,_59,_083111,_0400762,RM100000002NG2Q_01_0167,

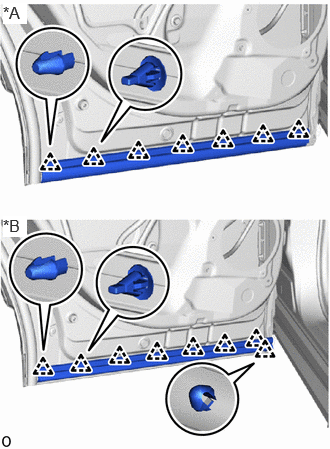

Hide Display 67874C 41.REMOVE REAR DOOR NO. 5 WEATHERSTRIP LH

0.031,0.031 0.281,0.25 0.25,0.219 12 true *A 0.031,2.25 0.281,2.469 0.25,0.219 12 true *B

*A	for Type A
*B	for Type B

Using a screwdriver with its tip wrapped with protective tape, detach the clip and remove the rear door No. 5 weatherstrip LH.

Hide Display 75078 42.REMOVE REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH

for Type A

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR DOOR OUTSIDE MOULDING>REMOVAL202004,999999,_59,_083111,_0400764,RM100000001MITS_01_0001,

for Type B

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR DOOR OUTSIDE MOULDING>REMOVAL202004,999999,_59,_083111,_0400764,RM100000001MITS_01_0010,

Hide Display 75062 43.REMOVE OUTSIDE MOULDING SET LH

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR DOOR OUTSIDE MOULDING>REMOVAL202004,999999,_59,_083111,_0400764,RM100000001MITS_01_0005,

Hide Display 67858B 44.REMOVE REAR DOOR PANEL PROTECTOR LH

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR DOOR OUTSIDE MOULDING>REMOVAL202004,999999,_59,_083111,_0400764,RM100000001MITS_01_0006,

Hide Display 67836H 45.REMOVE REAR DOOR LOCK CHILD PROTECTION COVER LH

Remove the rear door lock child protection cover LH.

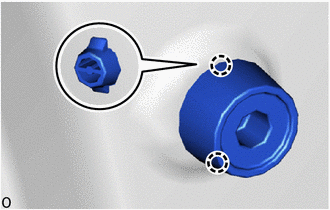

Hide Display 46.REMOVE SCREW GROMMET

Detach the claw and remove the screw grommet.

HINT:: Use the same procedure described for the other side.

Hide Display 67003C 47.REMOVE REAR DOOR PANEL CUSHION

Detach the claw and remove the rear door panel cushion.

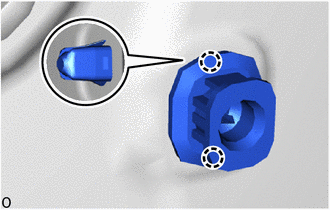

Hide Display 48.REMOVE HOLE PLUG

Remove the hole plug.

HINT:: Use the same procedure described for the other side.
