DOOR LOCK  DOOR CONTROL RECEIVER  INSTALLATION

897A0A 1.INSTALL DOOR CONTROL AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY (w/o Smart Entry and Start System)

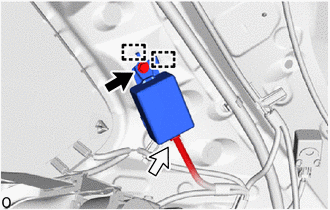

a.

0,0 0,0 false

	Bolt
	Connector

Connect the connector.

b.

Attach the guide and install the door control and tire pressure monitoring system receiver assembly with the bolt.

Torque:

: 10 N*m (102 kgf*cm, 7 ft.*lbf)

NOTICE:

·

Do not subject the door control and tire pressure monitoring system receiver assembly to strong impacts or force, and do not drop it.

·

Do not reuse the door control and tire pressure monitoring system receiver assembly that has been dropped.

897B0A 2.INSTALL ELECTRICAL KEY AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY (w/ Smart Entry and Start System)

62470A 3.INSTALL INNER ROOF SIDE GARNISH ASSEMBLY RH

64740E 4.INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

58460D 5.INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY

73708A 6.INSTALL TETHER ANCHOR BRACKET SET

62551F 7.INSTALL REAR SEAT SIDE GARNISH RH

62331C 8.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

58577E 9.INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

58386 10.INSTALL REAR FLOOR FINISH PLATE

58416K 11.INSTALL REAR NO. 2 FLOOR BOARD

58410B 12.INSTALL DECK BOARD ASSEMBLY

73705 13.INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH

14.INSTALL REAR SEAT ASSEMBLY

15.PERFORM INITIALIZATION (w/ Tire Pressure Warning System)

16. REGISTER TRANSMITTER ID (w/o Smart Entry and Start System)
