DOOR LOCK  REAR DOOR LOCK  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear door lock assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
·

Power window regulator motor assembly LH

·

Power window regulator motor assembly RH

·

Rear door window regulator sub-assembly LH

·

Rear door window regulator sub-assembly RH

·

Rear door glass sub-assembly LH

·

Rear door glass sub-assembly RH

·

Rear door glass run LH

·

Rear door glass run RH


·

Auto up and down function

·

Jam protection function

·

Catch protection function

·

Remote control function

·

Wireless transmitter-linked function

·

Key-linked function

·

Key-off operation function

·

Window open warning function


Initialize power window control system (Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane tracing assist system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. (Click here)
Pre-collision system


·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power back door function Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -



Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
·

Power window regulator motor assembly LH

·

Power window regulator motor assembly RH

·

Rear door window regulator sub-assembly LH

·

Rear door window regulator sub-assembly RH

·

Rear door glass sub-assembly LH

·

Rear door glass sub-assembly RH

·

Rear door glass run LH

·

Rear door glass run RH


·

Auto up and down function

·

Jam protection function

·

Catch protection function

·

Remote control function

·

Wireless transmitter-linked function

·

Key-linked function

·

Key-off operation function

·

Window open warning function


Initialize power window control system (Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane tracing assist system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system


·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Power back door system

Power back door function* Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -

·

Use the same procedure for the RH and LH sides.

·

The procedure below is for the LH side.

·

When performing disassembly for the rear door, disconnect the negative (-) auxiliary battery terminal after fully opening the rear door glass.



PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:
B394718

·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.



a.

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL


b.

for M20D-FKS:

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>REMOVAL


c.

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>REMOVAL


d.

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>REMOVAL


e.

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>REMOVAL


Hide 5.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY

Hide 67408E 13.REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY

Hide 69060A 17.REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY LH

a.
B522644C01
2.094,0.375 2.344,0.292 true 2.385,0.177 2.635,0.396 0.25,0.219 10 true *a
*a Release Plate
V113147

Remove in this Direction

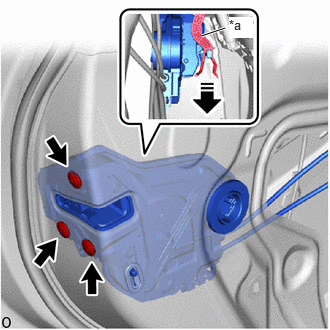

Using a T30 "TORX" socket wrench, remove the 3 "TORX" screws.


b.

Remove the release plate of the rear door outside handle frame sub-assembly LH in the direction indicated by the arrow shown in the illustration to remove the rear door lock with motor assembly LH.


Hide 69318D 18.REMOVE DOOR LOCK WIRING HARNESS SEAL

a.
B522645

When reusing rear door lock with motor assembly LH:

i.

Remove the door lock wiring harness seal from the rear door lock with motor assembly LH.



Hide 69038A 19.REMOVE REAR DOOR LOCK COVER SUB-ASSEMBLY LH

a.
B522646C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape

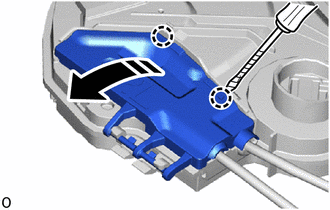

Using a screwdriver with its tip wrapped with protective tape, detach the claw and open the rear door lock cover sub-assembly LH.


b.
B522647

Detach the claw and remove the rear door lock cover sub-assembly LH.


Hide 69740E 20.REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

a.
B522648C01
0,0 0,0 false
V113147

Remove in this Direction

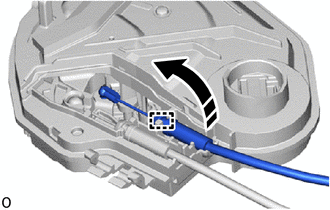

Detach the clamp and remove the rear door lock remote control cable assembly as shown in the illustration.


Hide 69780E 21.REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY

a.
B522649C01
0,0 0,0 false
V113147

Remove in this Direction

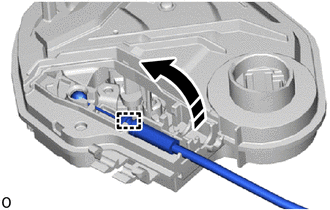

Detach the clamp and remove the rear door inside locking cable assembly as shown in the illustration.
