RM36D0EC _58 Vehicle Interior _083100 SUPPLEMENTAL RESTRAINT SYSTEMS _0400502 SIDE AIRBAG SENSOR A

SUPPLEMENTAL RESTRAINT SYSTEMS SIDE AIRBAG SENSOR INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 89835 1.INSTALL DOOR SIDE AIRBAG SENSOR LH

a.

Check that the ignition switch is off.

b.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: ·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

c.

Connect the airbag connector.

NOTICE:: When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; ·

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202405,999999,_58,_083100,_0694959,RM100000002LV1F,

·

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202405,999999,_58,_083100,_0694957,RM100000002LV4B,

d.

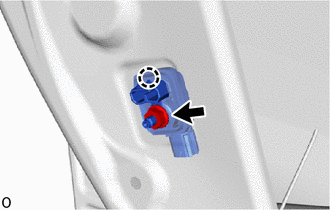

B555739

Attach the claw to hold the door side airbag sensor LH in place.

e.

Install the nut.

Torque:: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

NOTICE:: ·

If the door side airbag sensor has been dropped, replace it with a new one.

·

When installing the door side airbag sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

f.

Check that there is no looseness in the installation parts of the door side airbag sensor LH.

Hide Display 67832 2.INSTALL FRONT DOOR SERVICE HOLE COVER LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202409,999999,_59,_083093,_0403687,RM100000002NG1P_01_0028,

Hide Display 67602 3.INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202409,999999,_59,_083093,_0403687,RM100000002NG1P_01_0009,

Hide Display 4.INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202409,999999,_59,_083093,_0403687,RM100000002NG1P_01_0034,

Hide Display 5.INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202409,999999,_59,_083093,_0403687,RM100000002NG1P_01_0035,

Hide Display 74640C 6.INSTALL DOOR ASSIST GRIP ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202409,999999,_59,_083093,_0403687,RM100000002NG1P_01_0036,

Hide Display 69278B 7.INSTALL FRONT DOOR INSIDE HANDLE BEZEL LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202409,999999,_59,_083093,_0403687,RM100000002NG1P_01_0038,

Hide Display 8.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

·

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0418197,RM100000002A9BV,

·

for M20D-FKS:

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403617,RM100000002A9CC,

·

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403618,RM100000002A9CD,

·

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0477834,RM100000002A9D9,

·

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>INSTALLATION202304,999999,_V1,_083136,_0486275,RM100000002A9DH,

Hide Display 9. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202409,999999,_V1,_083041,_0402304,RM100000002NY03,

Hide Display 10. PERFORM DIAGNOSTIC SYSTEM CHECK

·

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>DTC CHECK / CLEAR202405,999999,_58,_083100,_0694959,RM100000002LV1B,

·

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>DTC CHECK / CLEAR202409,999999,_58,_083100,_0694957,RM100000002NSO1,

Hide Display 11.CHECK SRS WARNING LIGHT

·

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>OPERATION CHECK202405,999999,_58,_083100,_0694959,RM100000002LV17,

·

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>OPERATION CHECK202409,999999,_58,_083100,_0694957,RM100000002NSNY,
