RM36D0EC _58 Vehicle Interior _083100 SUPPLEMENTAL RESTRAINT SYSTEMS _0400493 STEERING PAD A

SUPPLEMENTAL RESTRAINT SYSTEMS STEERING PAD INSTALLATION

PROCEDURE

Hide Display 45130 1.INSTALL HORN BUTTON ASSEMBLY

Check that the ignition switch is off.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: ·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

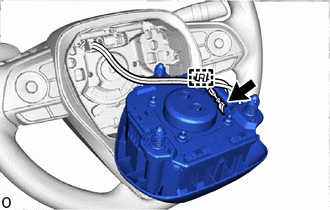

Support the horn button assembly with one hand.

Connect the horn connector and attach the wire harness clamp.

When installing a new spiral cable sub-assembly:

2,1.479 2,1.146 true 1.917,1.458 2.229,1.656 0.313,0.198 10 false *a

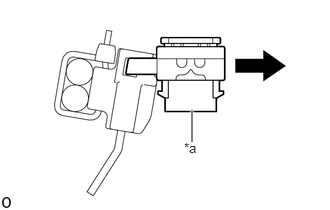

*a	Airbag Connector

Remove the airbag connector from the wire harness clamp.

Connect the airbag connector.

NOTICE:: ·

When connecting any airbag connector, take care not to damage the airbag wire harness.

·

Be sure to connect the connectors to each corresponding color.

·

Make sure the lock button is securely locked.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; ·

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202405,999999,_58,_083100,_0694959,RM100000002LV1F,

·

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202405,999999,_58,_083100,_0694957,RM100000002LV4B,

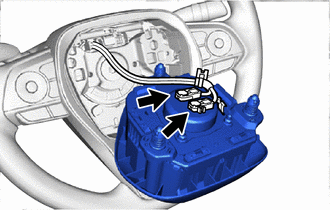

Set the horn button assembly to the steering wheel assembly.

Check that the airbag wire harness and horn wire harness are not pinched.

1.25,2.521 1.583,2.396 true 1.135,1.51 1.26,1.021 1.26,1.021 2.24,1.479 true 1.031,0.927 1.219,1.104 0.188,0.177 10 true *a 1.042,2.427 1.229,2.625 0.188,0.198 10 true *b

*a	Upper Pin
*b	Lower Pin

Press the horn button assembly with both hands to attach the upper pin to the upper spring.

Press the horn button assembly with both hands to attach the lower pin to the lower spring.

NOTICE:: After installation, try to pull the horn button assembly and check that the horn button assembly is securely installed.

Hide Display 2.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0418197,RM100000002A9BV,

for M20D-FKS:

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403617,RM100000002A9CC,

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403618,RM100000002A9CD,

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0477834,RM100000002A9D9,

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>INSTALLATION202304,999999,_V1,_083136,_0486275,RM100000002A9DH,

Hide Display 3. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202409,999999,_V1,_083041,_0402304,RM100000002NY03,

Hide Display 4.INSPECT HORN BUTTON ASSEMBLY

Make sure that the horn sounds.

If the horn does not sound, inspect the horn system.

Click hereVehicle Exterior>HORN>HORN SYSTEM>PROBLEM SYMPTOMS TABLE202405,999999,_59,_083110,_0402359,RM100000002LT4C,

Hide Display 5. PERFORM DIAGNOSTIC SYSTEM CHECK

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>DTC CHECK / CLEAR202405,999999,_58,_083100,_0694959,RM100000002LV1B,

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>DTC CHECK / CLEAR202409,999999,_58,_083100,_0694957,RM100000002NSO1,

Hide Display 6.CHECK SRS WARNING LIGHT

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>OPERATION CHECK202405,999999,_58,_083100,_0694959,RM100000002LV17,

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>OPERATION CHECK202409,999999,_58,_083100,_0694957,RM100000002NSNY,
