MAINTENANCE  REAR DISC BRAKE PAD  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear disc brake pad removal/installation are shown below.

NOTICE:
·

Immediately after installing the brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.

·

After replacing the rear disc brake pads, the brake pedal may feel soft due to clearance between the rear disc brake pads and rear disc. Depress the brake pedal several times until the brake pedal feels firm.

·

After replacing the rear disc brake pads, always perform a road test to check the braking performance and check for vibrations.

·

When the brake pedal is first depressed after replacing the brake pads or pushing back the brake caliper piston, C140000 (oil pressure leak malfunction) or C140A00 (adjustment pressure reservoir leak malfunction) may be output due to the large clearance between the brake pads and disc rotor.In this case, clear the DTCs after work is complete. (for HV Model)

·

While the auxiliary battery is connected, even if the power switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch turns on. Therefore, when servicing the brake system components, do not operate the brake pedal or open/close the doors while the auxiliary battery is connected. (for HV Model)



HINT:
for HV Model:
·

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane tracing assist system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. (Click here)
Pre-collision system

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Reset back door close position Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -


·

Use the same procedure for RH and LH sides.

·

The procedure listed below is for LH side.



PROCEDURE

Hide 1. PRECAUTION

NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal. (for HV Model)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·


Hide 5.DRAIN BRAKE FLUID

NOTICE:

If brake fluid leaks onto any painted surface, immediately wash it off.


Hide 04466 7.REMOVE REAR DISC BRAKE PAD

CAUTION:

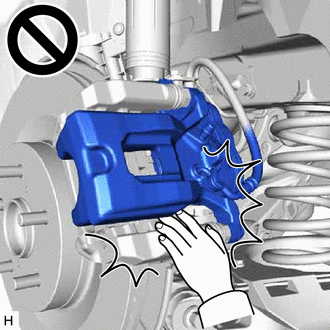

C406539

·

Be careful not to get pinched by the rear disc brake cylinder assembly or other parts when removing the rear disc brake pads.

·

After lifting up the rear disc brake cylinder assembly, secure it in place before performing any work on it.

·

The rear disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.



a.

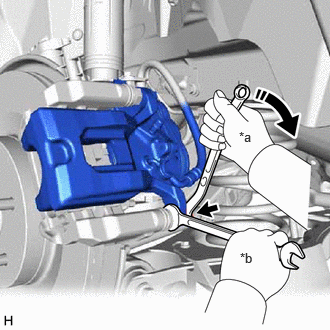

C406540C01
2.49,1.344 2.802,1.5 0.313,0.156 10 false *a 2.5,2.604 2.813,2.76 0.313,0.156 10 false *b
*a Turn
*b Hold


Hold the rear No. 1 disc brake cylinder slide pin and remove the bolt.


b.

Pull the rear disc brake cylinder assembly upward.


c.

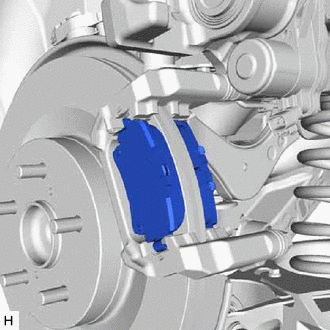

C406541

Remove the 2 rear disc brake pads from the rear disc brake cylinder mounting.


Hide 04946 8.REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT

a.
C412513C04

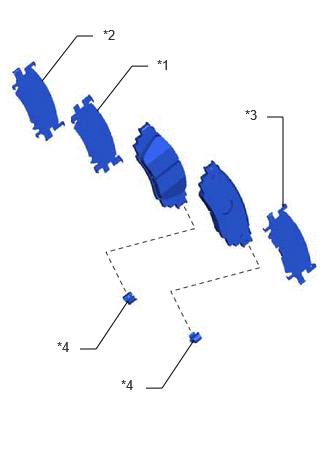

0.438,0.844 0.802,0.375 0.802,0.375 0.969,0.375 false 1.521,4.042 1.688,4.042 1.688,4.042 2.021,3.542 false 1.01,1.156 1.375,0.688 1.375,0.688 1.542,0.688 false 2.781,1.219 2.948,1.219 2.948,1.219 2.948,2.156 false 0.833,3.635 1,3.635 1,3.635 1.333,3.135 false 1.635,0.594 1.948,0.75 0.313,0.156 10 false *1 1.073,0.281 1.385,0.438 0.313,0.156 10 false *2 2.552,1.115 2.865,1.271 0.313,0.156 10 false *3 1.26,3.927 1.573,4.083 0.313,0.156 10 false *4 0.594,3.531 1,3.896 0.406,0.365 10 false *4
*1 Rear No. 1 Disc Brake Anti-squeal Shim
*2 Rear No. 2 Disc Brake Anti-squeal Shim
*3 Rear Disc Brake Anti-squeal Shim
*4 Rear Disc Brake Pad Wear Indicator Plate


Remove the rear No. 1 disc brake anti-squeal shim from the rear disc brake pad (inside and outside).


b.

Remove the rear No. 2 disc brake anti-squeal shim from the rear disc brake pad (inside and outside).


c.

Remove the rear disc brake anti-squeal shim from the rear disc brake pad (outside).


d.
C406542

Remove the rear disc brake pad wear indicator plate from each rear disc brake pad.
