POWER OUTLETS (INT)  WIRELESS CHARGING SYSTEM  Status Signal Circuit


DESCRIPTION

This circuit sends a charging suspension signal from the certification ECU (smart key ECU assembly) to the mobile wireless charger cradle assembly. Based on this signal, the mobile wireless charger cradle assembly suspends or resumes wireless charging.

HINT:

The wireless charging system uses the same radio wave frequency that is used to perform verification of the electrical key transmitter sub-assembly. Therefore, when the electrical key transmitter sub-assembly verification is being performed, the certification ECU (smart key ECU assembly) sends a charging suspension signal to the wireless charging system to suspend charging.


WIRING DIAGRAM

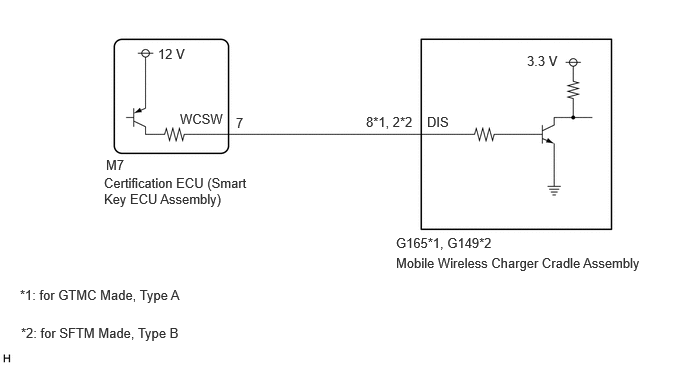

E542375E01
5.49,0.552 5.948,0.75 0.458,0.198 10 false 3.3 V 1.875,1.156 2.5,1.354 0.625,0.198 10 false WCSW 2.458,1.198 2.917,1.396 0.458,0.198 10 false 7 1.104,1.635 1.563,1.833 0.458,0.198 10 false M7 1.083,1.823 2.625,2.208 1.542,0.385 10 false Certification ECU (Smart Key ECU Assembly) 3.813,1.188 4.615,1.417 0.802,0.229 10 false 8*1, 2*2 4.448,1.188 4.906,1.385 0.458,0.198 10 false DIS 4.125,2.656 6.76,2.958 2.635,0.302 10 false Mobile Wireless Charger Cradle Assembly 1.646,0.479 2.104,0.677 0.458,0.198 10 false 12 V 4.125,2.448 5.24,2.667 1.115,0.219 10 false G165*1, G149*2 0.219,3.385 2.323,3.667 2.104,0.281 10 false *2: for SFTM Made, Type B 0.208,2.99 2.677,3.365 2.469,0.375 10 false *1: for GTMC Made, Type A

CAUTION / NOTICE / HINT

NOTICE:

Before replacing the certification ECU (smart key ECU assembly), refer to Service Bulletin.


PROCEDURE

1.CHECK VEHICLE SPECIFICATIONS
a.

Check the vehicle specifications.


Result:
Result Proceed to
for GTMC Made, Type A A
for SFTM Made, Type B B



A

2.CHECK MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (DIS TERMINAL)

B

4.CHECK MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (DIS TERMINAL)
2.CHECK MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (DIS TERMINAL)

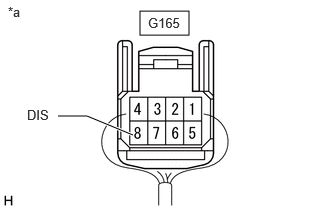

E483609C16
1.458,0.115 1.969,0.365 0.51,0.25 1.385,1.406 0.906,1.208 0.906,1.208 0.604,1.208 true 0.083,0.042 0.396,0.198 0.313,0.156 10 false *a 1.542,0.156 1.948,0.375 0.406,0.219 10 false G165 0.281,1.115 0.74,1.313 0.458,0.198 10 false DIS
*a Component with harness connected
(Mobile Wireless Charger Cradle Assembly)


a.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
G165-8 (DIS) - Body ground Device being charged Below 1 V
Charging suspended due to entry and start system status* 4.5 to 6.0 V


*: For details about conditions when the certification ECU (smart key ECU assembly) sends the charging suspension signal, refer to System Description.

Click hereVehicle Interior>POWER OUTLETS (INT)>WIRELESS CHARGING SYSTEM>SYSTEM DESCRIPTION



Result:
Proceed to
OK
NG



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereVehicle Interior>POWER OUTLETS (INT)>WIRELESS CHARGING SYSTEM>PROBLEM SYMPTOMS TABLE


NG

3.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - MOBILE WIRELESS CHARGER CRADLE ASSEMBLY)
3.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - MOBILE WIRELESS CHARGER CRADLE ASSEMBLY)
a.

Disconnect the M7 certification ECU (smart key ECU assembly) connector.


b.

Disconnect the G165 mobile wireless charger cradle assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
M7-7 (WCSW) - G165-8 (DIS) Always Below 1 Ω
M7-7 (WCSW) or G165-8 (DIS) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (DIS TERMINAL)
E512227C03
1.458,0.115 1.969,0.365 0.51,0.25 2.01,1.302 2.781,0.531 2.781,0.531 2.958,0.531 true 0.083,0.042 0.396,0.198 0.313,0.156 10 false *a 1.542,0.156 1.948,0.375 0.406,0.219 10 false G149 3.031,0.469 3.313,0.698 0.281,0.229 10 false DIS
*a Component with harness connected
(Mobile Wireless Charger Cradle Assembly)


a.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
G149-2 (DIS) - Body ground Device being charged Below 1 V
Charging suspended due to entry and start system status* 4.5 to 6.0 V


*: For details about conditions when the certification ECU (smart key ECU assembly) sends the charging suspension signal, refer to System Description.

Click hereVehicle Interior>POWER OUTLETS (INT)>WIRELESS CHARGING SYSTEM>SYSTEM DESCRIPTION



Result:
Proceed to
OK
NG



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereVehicle Interior>POWER OUTLETS (INT)>WIRELESS CHARGING SYSTEM>PROBLEM SYMPTOMS TABLE


NG

5.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - MOBILE WIRELESS CHARGER CRADLE ASSEMBLY)
5.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - MOBILE WIRELESS CHARGER CRADLE ASSEMBLY)
a.

Disconnect the M7 certification ECU (smart key ECU assembly) connector.


b.

Disconnect the G149 mobile wireless charger cradle assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
M7-7 (WCSW) - G149-2 (DIS) Always Below 1 Ω
M7-7 (WCSW) or G149-2 (DIS) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
