RM36D0EC _58 Vehicle Interior _083103 SEAT BELT _0401773 REAR SEAT INNER BELT ASSEMBLY A

SEAT BELT REAR SEAT INNER BELT ASSEMBLY INSTALLATION

PROCEDURE

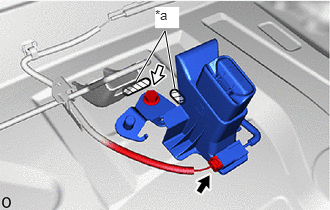

Hide Display 73380D 1.INSTALL REAR SEAT INNER BELT ASSEMBLY

1.417,0.844 1.719,0.323 1.719,0.323 1.823,0.927 true 1.615,0.073 1.865,0.292 0.25,0.219 10 true *a

*a	Protruding Part
	Connector
	Bolt

Install the rear seat inner belt assembly with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor part of the rear seat inner belt assembly to overlap the protruding part.

Connect the connector.

Hide Display 73480 2.INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH

1.979,1.281 2.698,1.24 2.698,1.24 1.948,1.01 true 1.625,0.875 1.688,0.375 true 2.708,1.125 2.927,1.333 0.219,0.208 10 true *a 1.594,0.156 1.813,0.365 0.219,0.208 10 true *a

*a	Protruding Part
	Connector
	Bolt

Tighten the bolt and install the rear seat inner with center belt assembly LH.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor part of the rear seat inner with center belt assembly LH to overlap the protruding part.

Connect the 2 connectors.

Hide Display 3.INSTALL REAR SEATBACK ASSEMBLY RH

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202004,999999,_58,_083102,_0419059,RM100000001MO2U_01_0036,

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202004,999999,_58,_083102,_0419060,RM100000001MO2Z_01_0036,

Hide Display 73350C 4.INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

for SFTM Made:

Click hereVehicle Interior>SEAT BELT>REAR CENTER SEAT OUTER BELT ASSEMBLY (for SFTM Made)>INSTALLATION202004,999999,_58,_083103,_0419079,RM100000001MO7Q_01_0083,

for GTMC Made:

Click hereVehicle Interior>SEAT BELT>REAR CENTER SEAT OUTER BELT ASSEMBLY (for GTMC Made)>INSTALLATION202004,999999,_58,_083103,_0419080,RM100000001MO7U_01_0083,

Hide Display 5.INSTALL REAR SEATBACK ASSEMBLY LH

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202004,999999,_58,_083102,_0419059,RM100000001MO2U_01_0035,

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202004,999999,_58,_083102,_0419060,RM100000001MO2Z_01_0035,

Hide Display 72693 6.INSTALL REAR SEAT CUSHION LOCK HOOK

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202004,999999,_58,_083102,_0419059,RM100000001MO2U_01_0038,

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202004,999999,_58,_083102,_0419060,RM100000001MO2Z_01_0038,

Hide Display 7.INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202004,999999,_58,_083102,_0419059,RM100000001MO2U_01_0025,

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202004,999999,_58,_083102,_0419060,RM100000001MO2Z_01_0025,

Hide Display 71960B 8.INSTALL REAR CENTER SEAT HEADREST ASSEMBLY

Install the rear center seat headrest assembly.

Hide Display 71940A 9.INSTALL REAR SEAT HEADREST ASSEMBLY

Install the 2 rear seat headrest assemblies.

Hide Display 10.INSPECT SEAT BELT WARNING SYSTEM

for SFTM Made:

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM (for SFTM Made)>OPERATION CHECK202405,999999,_58,_083103,_0694953,RM100000002LUZA,

for GTMC Made:

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM (for GTMC Made)>OPERATION CHECK202405,999999,_58,_083103,_0694954,RM100000002LUZN,
