M20C-FKS STARTING  ENGINE SWITCH  INSPECTION

1.469,0.146 2,0.396 0.531,0.25 1.865,0.948 2.323,0.281 2.323,0.281 2.521,0.281 true 1.167,1.333 0.771,1.333 true 1.438,1.75 1.438,1.344 true 1.167,0.969 0.771,0.969 true 0.104,0.094 0.417,0.25 0.313,0.156 10 false *a 2.635,0.177 3.344,0.5 0.708,0.323 10 false GND 0.479,1.25 1.01,1.5 0.531,0.25 10 false SS1 0.469,0.875 1,1.125 0.531,0.25 10 false SS2 1.323,1.75 1.854,2 0.531,0.25 10 false SS3 1.563,0.177 2.271,0.5 0.708,0.323 10 false G171

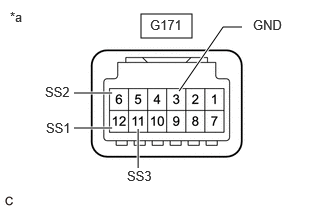

*a	Component without harness connected (Engine Switch)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Switch Condition	Specified Condition
G171-12 (SS1) - G171-3 (GND)	Not pushed	10 kΩ or higher
G171-6 (SS2) - G171-3 (GND)	Not pushed	10 kΩ or higher
G171-11 (SS3) - G171-3 (GND)	Not pushed	10 kΩ or higher
G171-12 (SS1) - G171-3 (GND)	Pushed	Below 1 Ω
G171-6 (SS2) - G171-3 (GND)	Pushed	Below 1 Ω
G171-11 (SS3) - G171-3 (GND)	Pushed	Below 1 Ω

HINT:

If the result is not as specified, replace the engine switch.

1.406,0.177 1.875,0.417 0.469,0.24 1.885,0.969 2.083,0.25 2.083,0.25 2.25,0.25 true 1.385,0.979 1.208,0.25 1.208,0.25 1.042,0.25 true 2.302,0.177 2.917,0.375 0.615,0.198 10 false GND 0.74,0.198 1.354,0.396 0.615,0.198 10 false SWIL 0.104,0.073 0.719,0.271 0.615,0.198 10 false *a 1.469,0.219 1.927,0.417 0.458,0.198 10 false G171

*a	Component without harness connected (Engine Switch)

Check the LED illumination

Apply battery voltage between the terminals of the engine switch, and check the illumination condition of the engine switch indicator light.

OK:

Condition	Specified Condition
Battery positive (+) → G171-5 (SWIL) Battery negative (-) → G171-3 (GND)	Illuminates

HINT:

If the result is not as specified, replace the engine switch.
