CRUISE CONTROL  FRONT CAMERA  INSTALLATION


PROCEDURE

Hide 8646C 1.INSTALL FORWARD RECOGNITION CAMERA

NOTICE:
·

When replacing the forward recognition camera, replace it with a new one.

·

If the forward recognition camera has been struck or dropped, replace it with a new one.

·

If the forward recognition camera is not properly installed, forward recognition camera optical axis learning cannot be performed properly. Make sure the forward recognition camera is installed securely.

·

Do not touch the camera lens or the front windshield glass in front of the camera.

·

Replace the forward recognition camera if there is any foreign matter on the camera lens.

·

When replacing the forward recognition camera, do not dirty or damage the lens.

·

If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.

·

When replacing the windshield glass of a vehicle equipped with a forward recognition camera, make sure to use a Toyota genuine part. If a non-Toyota genuine part is used, the forward recognition camera may not be able to be installed due to a missing bracket. Also the dynamic radar cruise control system (for HV Model), dynamic radar cruise control system (for Gasoline Model), front camera system, lane tracing assist system, pre-collision system or automatic high beam system may not operate properly due to a difference in the transmissivity or black ceramic border.

·

After replacing the forward recognition camera, make sure to perform update ECU security key.

·

If there is any foreign matter on the area of the windshield glass in front of the forward recognition camera, clean the windshield glass before installing the forward recognition camera. Install the hood with heater sub-assembly and forward recognition camera.

Forward recognition hood removal: Click hereEngine / Hybrid System>CRUISE CONTROL>CAMERA HEATER>REMOVAL

Forward recognition hood installation: Click hereEngine / Hybrid System>CRUISE CONTROL>CAMERA HEATER>INSTALLATION



a.

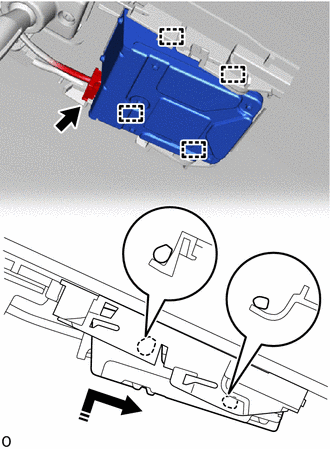

B522895C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide to install the forward recognition camera as shown in the illustration.

NOTICE:

Do not touch the camera lens.



b.

Connect the connector.


Hide 86464A 2.INSTALL FORWARD RECOGNITION LATCH

NOTICE:

Before installing the forward recognition latch, be sure to check that the forward recognition camera is securely installed.


a.

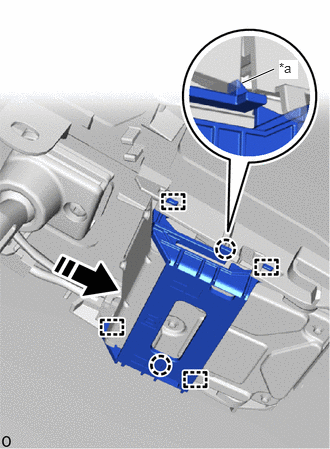

B522896C01
2.521,0.865 2.854,0.719 true 2.906,0.625 3.104,0.823 0.198,0.198 10 true *a
*a Securely attach the claw
V113147

Install in this Direction


Attach the guide and claw as shown in the illustration to install the forward recognition latch.

NOTICE:

Check that the forward recognition latch is securely installed.



Hide 86466D 3.INSTALL NO. 1 FORWARD RECOGNITION COVER

a.

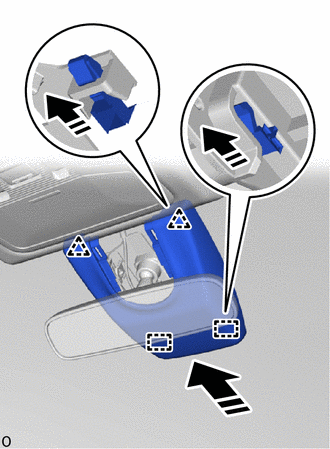

B522897C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and clip as shown in the illustration to install the No. 1 forward recognition cover.

NOTICE:

When installing, press the cover parallel to the windshield glass surface and install.


HINT:

Check the locking sound of the clip when attaching it.



Hide 86466E 4.INSTALL NO. 2 FORWARD RECOGNITION COVER

a.

Attach the guide in the direction indicated by the arrow (1) as shown in the illustration.

NOTICE:

Insert the guide all the way.

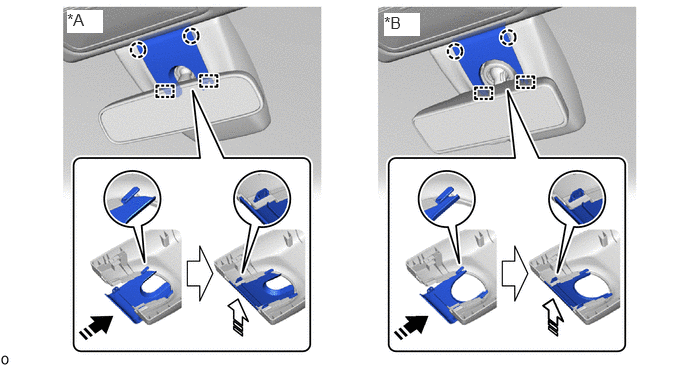

B532781C01
0.698,0.104 1.073,0.344 0.375,0.24 12 true *A 4,0.135 4.375,0.375 0.375,0.24 12 true *B
*A w/o Digital Inner Mirror *B w/ Digital Inner Mirror
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)



b.

Attach the claw in the direction indicated by the arrow (2) as shown in the illustration to install the No. 2 forward recognition cover.

NOTICE:

If the claw are attached separately they may become damaged. Therefore, attach them at the same time.



Hide 8646C 6.ADJUST FORWARD RECOGNITION CAMERA

a.

If the forward recognition camera has been replaced with a new one or the windshield glass has been removed and installed, it is necessary to perform Forward Recognition Camera Learning.

HINT:

Forward Recognition Camera Learning can be performed by using either Target Adjustment (One Time Recognition) or Target Adjustment (Sequential Recognition) or Driving Adjustment.

·

Target Adjustment (One Time Recognition):

Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>TARGET ADJUSTMENT(ONE TIME RECOGNITION)

·

Target Adjustment (Sequential Recognition):

Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>TARGET ADJUSTMENT(SEQUENTIAL RECOGNITION)

·

Driving Adjustment:

Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>DRIVING ADJUSTMENT
