RM36D0EC _57 Power Source / Network _083091 NETWORKING _0694855 CAN COMMUNICATION SYSTEM(for GTMC Made HV Model) J

NETWORKING  CAN COMMUNICATION SYSTEM(for GTMC Made HV Model)  Motor Generator Control ECU Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Motor Generator Control ECU Communication Stop Mode Communication stop for "Motor Generator" and/or "Rear Motor Generator" is indicated on the "Communication Bus Check" screen of the GTS.
(Click here)
·

Inverter with converter assembly branch wire or connector

·

Power source circuit of inverter with converter assembly

·

Inverter with converter assembly ground circuit

·

Inverter with converter assembly

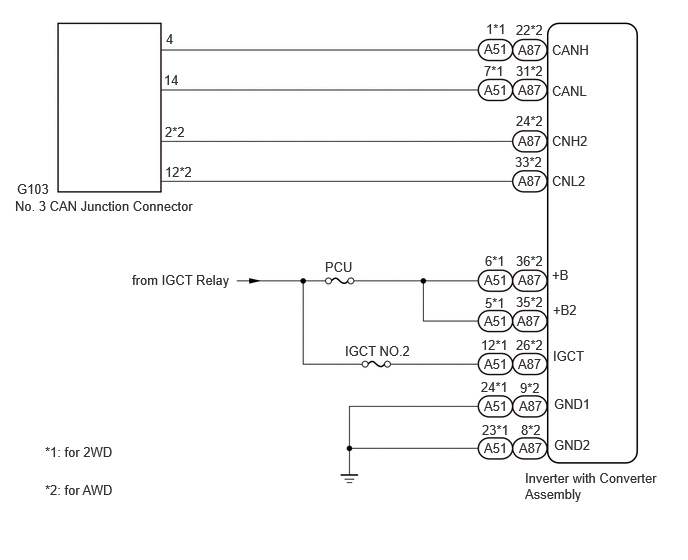

WIRING DIAGRAM

C405947E04
0.156,2.063 2.292,2.302 2.135,0.24 10 false No. 3 CAN Junction Connector 0.177,1.885 0.656,2.063 0.479,0.177 10 false G103 5.375,0.229 5.771,0.427 0.396,0.198 10 false 22*2 5.75,1.385 6.208,1.563 0.458,0.177 10 false CNH2 5.042,0.427 5.802,0.688 0.76,0.26 10 false A51 5.469,4.896 6.979,5.615 1.51,0.719 10 false Inverter with Converter Assembly 5.75,1.802 6.167,1.979 0.417,0.177 10 false CNL2 5.375,2.635 5.75,2.833 0.375,0.198 10 false 36*2 5.375,0.656 5.781,0.854 0.406,0.198 10 false 31*2 5.771,4.125 6.229,4.323 0.458,0.198 10 false GND1 5.417,3.958 5.729,4.167 0.313,0.208 10 false 9*2 5.75,2.781 6.156,2.958 0.406,0.177 10 false +B 5.427,4.396 5.781,4.583 0.354,0.188 10 false 8*2 5.771,4.552 6.229,4.729 0.458,0.177 10 false GND2 5.375,3.063 5.74,3.26 0.365,0.198 10 false 35*2 5.76,3.146 6.167,3.323 0.406,0.177 10 false +B2 5.75,0.865 6.208,1.042 0.458,0.177 10 false CANL 5.75,0.438 6.208,0.615 0.458,0.177 10 false CANH 5.375,1.177 5.792,1.375 0.417,0.198 10 false 24*2 5.365,1.604 5.76,1.781 0.396,0.177 10 false 33*2 1.729,0.323 1.958,0.5 0.229,0.177 10 false 4 1.708,0.75 1.938,0.927 0.229,0.177 10 false 14 1.719,1.292 2.063,1.469 0.344,0.177 10 false 2*2 1.719,1.708 2.094,1.906 0.375,0.198 10 false 12*2 5.76,3.625 6.167,3.802 0.406,0.177 10 false IGCT 5.375,3.51 5.76,3.729 0.385,0.219 10 false 26*2 3.385,2.698 3.792,2.875 0.406,0.177 10 false PCU 3.594,3.573 4.49,3.792 0.896,0.219 10 false IGCT NO.2 1.375,2.833 2.5,3.073 1.125,0.24 10 false from IGCT Relay 5.396,0.854 6.156,1.115 0.76,0.26 10 false A87 5.396,1.385 6.156,1.646 0.76,0.26 10 false A87 5.396,1.802 6.156,2.063 0.76,0.26 10 false A87 5.396,2.833 6.156,3.094 0.76,0.26 10 false A87 5.385,3.26 6.146,3.521 0.76,0.26 10 false A87 5.396,3.708 6.156,3.969 0.76,0.26 10 false A87 5.406,4.146 6.167,4.406 0.76,0.26 10 false A87 5.406,4.583 6.167,4.844 0.76,0.26 10 false A87 5.396,0.438 6.156,0.698 0.76,0.26 10 false A87 5.042,0.854 5.802,1.115 0.76,0.26 10 false A51 5.042,2.833 5.802,3.094 0.76,0.26 10 false A51 5.042,3.26 5.802,3.521 0.76,0.26 10 false A51 5.042,3.708 5.802,3.969 0.76,0.26 10 false A51 5.042,4.146 5.802,4.406 0.76,0.26 10 false A51 5.042,4.583 5.802,4.844 0.76,0.26 10 false A51 5.063,0.219 5.458,0.417 0.396,0.198 10 false 1*1 5.042,0.656 5.438,0.854 0.396,0.198 10 false 7*1 5.052,2.635 5.448,2.833 0.396,0.198 10 false 6*1 5.052,3.073 5.448,3.271 0.396,0.198 10 false 5*1 5.01,3.51 5.406,3.708 0.396,0.198 10 false 12*1 5.01,3.948 5.406,4.146 0.396,0.198 10 false 24*1 5.021,4.396 5.417,4.594 0.396,0.198 10 false 23*1 0.469,4.625 2.396,4.917 1.927,0.292 10 false *1: for 2WD 0.469,5.021 2.396,5.313 1.927,0.292 10 false *2: for AWD

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for GTMC Made HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the power switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the power switch on (IG) and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for GTMC Made HV Model)>DIAGNOSIS SYSTEM



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK VEHICLE TYPE
a.

Check the vehicle type.


Result:
Result Proceed to
for 2WD A
for AWD B



A

2.CHECK FOR OPEN IN CAN BUS WIRE (INVERTER WITH CONVERTER ASSEMBLY BRANCH WIRE)

B

4.CHECK FOR OPEN IN CAN BUS WIRE (INVERTER WITH CONVERTER ASSEMBLY BRANCH WIRE)
2.CHECK FOR OPEN IN CAN BUS WIRE (INVERTER WITH CONVERTER ASSEMBLY BRANCH WIRE)
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

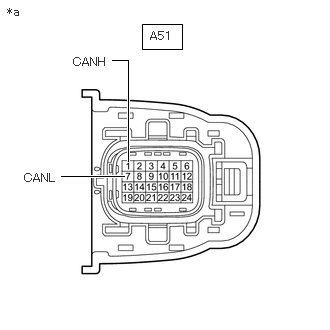

C349824C38
1.479,0.25 1.896,0.51 0.417,0.26 1.333,1.677 1.333,0.625 1.333,0.625 1.167,0.625 true 0.635,1.833 1.292,1.833 true 0.073,0.052 0.385,0.25 0.313,0.198 10 false *a 0.76,0.573 1.198,0.771 0.438,0.198 10 false CANH 0.25,1.781 0.688,1.979 0.438,0.198 10 false CANL 1.563,0.302 2,0.5 0.438,0.198 10 false A51
*a Front view of wire harness connector
(to Inverter with Converter Assembly)


Disconnect the inverter with converter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A51-1 (CANH) - A51-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω



Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.

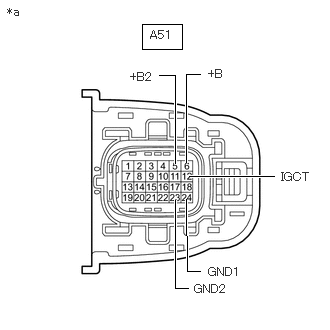

C349824C39
1.479,0.25 1.896,0.51 0.417,0.26 1.823,1.698 1.823,0.781 1.823,0.781 1.656,0.781 true 1.969,1.833 2.854,1.833 true 1.938,1.688 1.938,0.771 1.938,0.771 2.083,0.771 true 1.958,3 1.823,3 1.823,3 1.823,2.083 true 2.083,2.823 1.948,2.823 1.948,2.823 1.938,2.073 true 0.073,0.052 0.385,0.25 0.313,0.198 10 false *a 1.354,0.729 1.792,0.927 0.438,0.198 10 false +B2 2.927,1.771 3.365,1.969 0.438,0.198 10 false IGCT 1.563,0.292 2,0.49 0.438,0.198 10 false A51 2.167,0.698 2.604,0.896 0.438,0.198 10 false +B 2.167,2.76 2.604,2.958 0.438,0.198 10 false GND1 2.021,2.938 2.458,3.135 0.438,0.198 10 false GND2
*a Front view of wire harness connector
(to Inverter with Converter Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A51-23 (GND2) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
A51-24 (GND1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω



b.

Reconnect the cable to the negative (-) auxiliary battery terminal.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
A51-5 (+B2) - Body ground Power switch on (IG) 11 to 14 V
Power switch off Below 1 V
A51-6 (+B) - Body ground Power switch on (IG) 11 to 14 V
Power switch off Below 1 V
A51-12 (IGCT) - Body ground Power switch on (IG) 11 to 14 V
Power switch off Below 1 V



Result:
Proceed to
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for 2WD)>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK FOR OPEN IN CAN BUS WIRE (INVERTER WITH CONVERTER ASSEMBLY BRANCH WIRE)
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

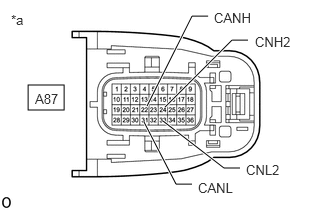

C412486C06
0.292,0.885 0.667,1.146 0.375,0.26 1.719,1.115 2.417,0.417 2.417,0.417 2.583,0.417 true 1.531,1.104 2,0.167 2,0.167 2.167,0.167 true 1.698,1.26 2.333,1.75 2.333,1.75 2.5,1.75 true 1.5,1.271 1.833,1.917 1.833,1.917 2,1.917 true 0.115,0.125 0.427,0.323 0.313,0.198 10 false *a 0.365,0.948 0.823,1.146 0.458,0.198 10 false A87 2.563,1.688 3.063,1.927 0.5,0.24 10 false CNL2 2.063,1.875 2.531,2.063 0.469,0.188 10 false CANL 2.656,0.354 3.115,0.552 0.458,0.198 10 false CNH2 2.229,0.104 2.844,0.302 0.615,0.198 10 false CANH
*a Front view of wire harness connector
(to Inverter with Converter Assembly)


Disconnect the inverter with converter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A87-22 (CANH) - A87-31 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
A87-24 (CNH2) - A87-33 (CNL2) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω



Result:
Proceed to
OK
NG



OK

5.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.

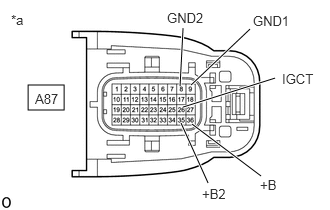

C412486C07
0.292,0.885 0.667,1.146 0.375,0.26 1.99,0.885 2.604,0.302 true 1.875,0.896 1.906,0.292 true 2,1.292 2.719,1.833 true 1.885,1.281 2.167,1.906 true 1.906,1.115 2.865,0.813 true 0.115,0.125 0.427,0.323 0.313,0.198 10 false *a 0.365,0.948 0.823,1.146 0.458,0.198 10 false A87 2.708,1.844 3.021,2.042 0.313,0.198 10 false +B 2.104,1.938 2.427,2.115 0.323,0.177 10 false +B2 2.635,0.135 3.094,0.333 0.458,0.198 10 false GND1 1.74,0.104 2.354,0.302 0.615,0.198 10 false GND2 2.938,0.74 3.396,0.938 0.458,0.198 10 false IGCT
*a Front view of wire harness connector
(to Inverter with Converter Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A87-9 (GND1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
A87-8 (GND2) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω



b.

Reconnect the cable to the negative (-) auxiliary battery terminal.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
A87-35 (+B2) - Body ground Power switch on (IG) 11 to 14 V
Power switch off Below 1 V
A87-36 (+B) - Body ground Power switch on (IG) 11 to 14 V
Power switch off Below 1 V
A87-26 (IGCT) - Body ground Power switch on (IG) 11 to 14 V
Power switch off Below 1 V



Result:
Proceed to
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for AWD)>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
