RM36D0EC _58 Vehicle Interior _083103 SEAT BELT _0401772 FRONT SEAT OUTER BELT ASSEMBLY A

SEAT BELT FRONT SEAT OUTER BELT ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 73024 1.INSTALL FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH

Attach the guide and install the front shoulder belt anchor plate sub-assembly LH.

Hide Display 73200A 2.INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

2.177,1.938 2.427,2.156 0.25,0.219 10 true (1) 2.198,0.365 2.448,0.583 0.25,0.219 10 true (2)

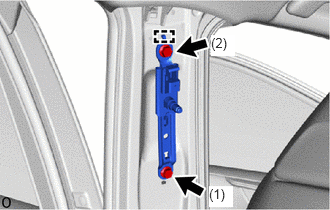

Attach the guide and temporarily install the front shoulder belt anchor adjuster assembly with the 2 bolts.

Tighten the 2 bolts in the order shown in the illustration.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Hide Display 3.INSPECT FRONT SEAT OUTER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY>INSPECTION201910,999999,_58,_083103,_0401772,RM100000001JDL5,

Hide Display 73220 4.INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH

Attach the guide.

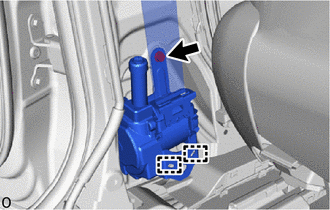

Install the front seat outer belt assembly LH with the bolt.

Torque:: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

2.771,1 2.25,0.594 true 2.063,0.417 2.375,0.573 0.313,0.156 10 false *a

*a	Locking Button
	Install in this Direction

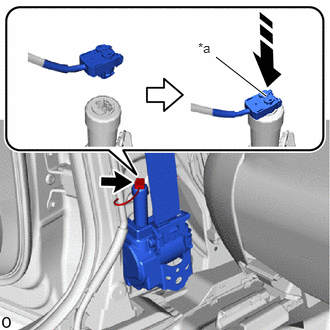

Connect the pretensioner connector and lock the locking button as shown in the illustration.

NOTICE:: ·

When handling the pretensioner connector, take care not to damage the pretensioner wire harness.

·

Securely lock the locking button.

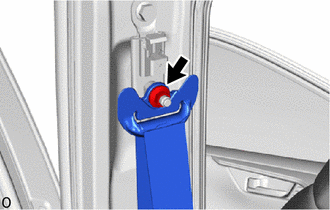

Install the shoulder anchor of the front seat outer belt assembly LH with the nut.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Hide Display 62412 5.INSTALL CENTER PILLAR GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0027,

Hide Display 62414A 6.INSTALL LOWER CENTER PILLAR GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0001,

Hide Display 73220 7.INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

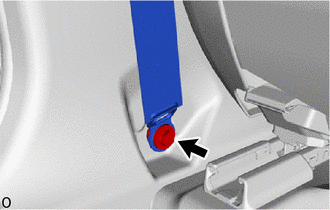

Install the anchor of the front seat outer belt assembly LH with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Check that the ELR locks.

With the front seat outer belt assembly LH installed to the vehicle, check that the belt locks when it is pulled out quickly.

Hide Display 73233 8.INSTALL LAP BELT OUTER ANCHOR COVER

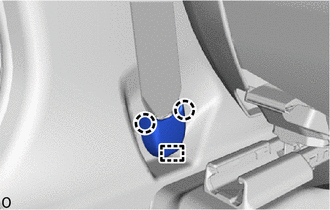

Attach the guide and claw and install the lap belt outer anchor cover.
