RM36D0EC _58 Vehicle Interior _083103 SEAT BELT _0419074 FRONT SEAT INNER BELT ASSEMBLY(for SFTM Made Manual Seat) A

SEAT BELT  FRONT SEAT INNER BELT ASSEMBLY(for SFTM Made Manual Seat)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·
B543257

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 73240 1.INSTALL FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

a.

Install the front seat belt anchor plate.


b.

Pass the front seat inner belt assembly LH through the hole on the cover and set it.


c.

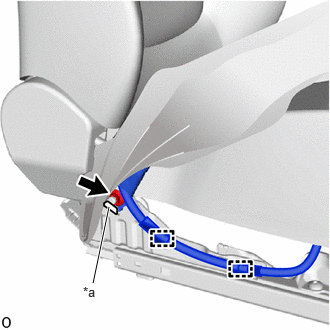

B555770C01
0.969,2.948 1.135,2.156 true 0.865,2.958 1.177,3.115 0.313,0.156 10 false *a
*a Protruding Part


Install the front seat inner belt assembly LH with the nut.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the front seat inner belt assembly LH to overlap the protruding part.



d.

Attach the clamp.


e.

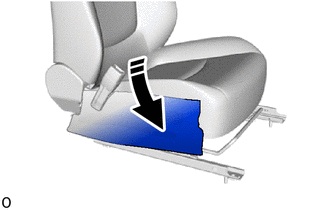

B555766C01
0,0 0,0 false
V113147

Return in this Direction


Return the cover as shown in the illustration.


f.

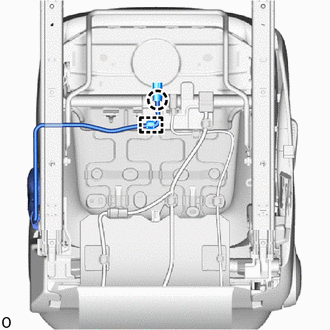

B555759

Attach the claw and clamp.


Hide 73230 2.INSTALL FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)

a.

Install the front seat belt anchor plate.


b.

Pass the front seat inner belt assembly RH through the hole on the cover and set it.


c.

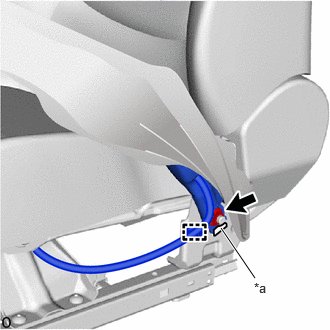

B555772C01
2.656,2.896 2.302,2.375 true 2.646,2.917 2.958,3.073 0.313,0.156 10 false *a
*a Protruding Part


Install the front seat inner belt assembly RH with the nut.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the front seat inner belt assembly RH to overlap the protruding part.



d.

Attach the clamp.


e.

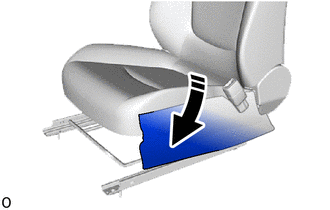

B555768C01
0,0 0,0 false
V113147

Return in this Direction


Return the cover as shown in the illustration.


f.

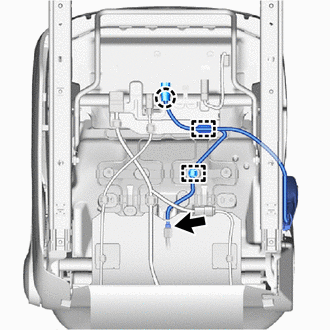

B612150

Attach the claw and clamp.


g.

Connect the connector.


Hide 5. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
