SEAT SEAT HEATER CONTROL(for GTMC Made Power Seat) INSTALLATION
CAUTION / NOTICE / HINT
- CAUTION:
- ·
Wear protective gloves. Sharp areas on the parts may injure your hands.
·There is risk of injury.
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The following procedure is for the LH side.
PROCEDURE
87501B

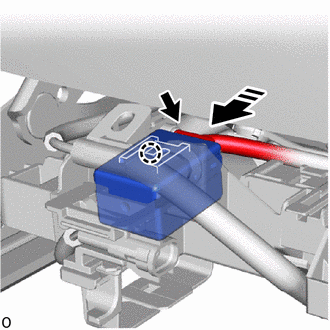

1.INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY LH
|
Install in this Direction |
Connect the connector.
Attach the claw and install the seat heater control sub-assembly LH.
71868A
2.INSTALL FRONT SEAT NO. 1 INNER CUSHION SHIELD LH
3.INSTALL FRONT SEAT ASSEMBLY LH
4. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
- HINT:
-
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
5. PERFORM DIAGNOSTIC SYSTEM CHECK
6.CHECK SRS WARNING LIGHT
7.INSPECT SEAT BELT WARNING SYSTEM
8.INSPECT FRONT POWER SEAT CONTROL SYSTEM
9.INSPECT SEAT HEATER SYSTEM (w/ Seat Heater System)
10.INSPECT CLIMATE CONTROL SEAT SYSTEM (w/ Climate Control Seat System)
