RM36D0EC _58 Vehicle Interior _083102 SEAT _0420332 LUMBAR SUPPORT ADJUSTER ASSEMBLY(for SFTM Made) A

SEAT LUMBAR SUPPORT ADJUSTER ASSEMBLY(for SFTM Made) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

PROCEDURE

Hide Display 72760D 1.INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

a.

B553674

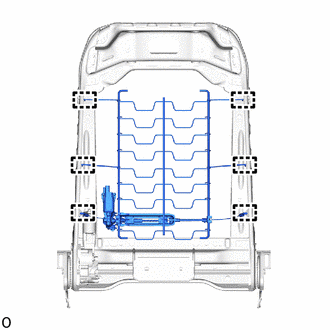

Attach the hook and install the lumbar support adjuster assembly LH.

b.

Connect the connector of the lumbar support adjuster assembly LH.

Hide Display 2.INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419056,RM1000000029RM1_05_0084,

Hide Display 71876G 3.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419056,RM1000000029RM1_05_0085,

Hide Display 4.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419056,RM1000000029RM1_05_0086,

Hide Display 71862 5.INSTALL FRONT SEAT INNER CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419056,RM1000000029RM1_05_0088,

Hide Display 71812D 6.INSTALL FRONT SEAT CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419056,RM1000000029RM1_05_0071,

Hide Display 71868A 7.INSTALL FRONT SEAT INNER NO. 1 CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419056,RM1000000029RM1_05_0072,

Hide Display 8.INSTALL FRONT SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>INSTALLATION202405,999999,_58,_083102,_0419056,RM100000002LTTG,

Hide Display 9. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202405,202409,_V1,_083041,_0402304,RM100000002LTUF,202409,999999,_V1,_083041,_0402304,RM100000002NY03,

Hide Display 10. PERFORM DIAGNOSTIC SYSTEM CHECK

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>DTC CHECK / CLEAR202405,202409,_58,_083100,_0694957,RM100000002LV48,202409,999999,_58,_083100,_0694957,RM100000002NSO1,

Hide Display 11.CHECK SRS WARNING LIGHT

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>OPERATION CHECK202405,202409,_58,_083100,_0694957,RM100000002LV45,202409,999999,_58,_083100,_0694957,RM100000002NSNY,

Hide Display 12.INSPECT SEAT BELT WARNING SYSTEM

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM (for SFTM Made)>OPERATION CHECK202405,999999,_58,_083103,_0694953,RM100000002LUZA,

Hide Display 13.INSPECT FRONT POWER SEAT CONTROL SYSTEM

a.

for HV Model:

Click hereVehicle Interior>SEAT>FRONT POWER SEAT CONTROL SYSTEM (for HV Model)>OPERATION CHECK202304,999999,_58,_083102,_0407492,RM1000000029D6D,

b.

for Gasoline Model:

Click hereVehicle Interior>SEAT>FRONT POWER SEAT CONTROL SYSTEM (for Gasoline Model)>OPERATION CHECK202304,999999,_58,_083102,_0407266,RM1000000029D5N,

Hide Display 14.INSPECT SEAT HEATER SYSTEM

a.

for HV Model:

Click hereVehicle Interior>SEAT>SEAT HEATER SYSTEM (for HV Model)>OPERATION CHECK202004,999999,_58,_083102,_0407493,RM100000001MTIA,

b.

for Gasoline Model:

Click hereVehicle Interior>SEAT>SEAT HEATER SYSTEM (for Gasoline Model)>OPERATION CHECK202004,999999,_58,_083102,_0407267,RM100000001MTKH,
