K121F CVT  CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM  P091414  Gear Shift Position Circuit Short to Ground or Open


DESCRIPTION

Refer to DTC P091412.

Click hereDrivetrain>K121F (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM>P091412

DTC No. Detection Item DTC Detection Condition Trouble Area MIL DTC Output from Priority Note
P091414 Gear Shift Position Circuit Short to Ground or Open An open or short to ground is detected in the shift stroke sensor circuit for 5 seconds or more (1-trip detection logic).
·

Shift stroke sensor

·

Harness and connector

·

ECM


Comes on Engine A SAE Code:
P0916

MONITOR DESCRIPTION

This DTC indicates an open or short to ground in the shift stroke sensor circuit. If there is an open or short to ground in the shift stroke sensor circuit, the ECM detects the malfunction, illuminates the MIL and stores this DTC.

CONFIRMATION DRIVING PATTERN

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:
·

After repairs have been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

·

When clearing the permanent DTCs, refer to the Clear Permanent DTC procedure.

Click hereDrivetrain>K121F (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM>DTC CHECK / CLEAR



1.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

2.

Turn the ignition switch off and wait for 2 minutes or more.

3.

Perform the D Position Shift Test inspection in Road Test. [*1]

Click hereDrivetrain>K121F (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM>ROAD TEST

HINT:

[*1]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.


4.

Stop the vehicle.

5.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

6.

Input the DTC: P091414.

7.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions


N/A
·

Unable to perform DTC judgment

·

Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result shows INCOMPLETE or N/A, perform the normal judgment procedure again.




PROCEDURE

1.INSPECT ECM (VDD VOLTAGE)

Pre-procedure1

a.

Disconnect the C39 shift stroke sensor connector.


b.

Turn the ignition switch to ON.


Procedure1

c.

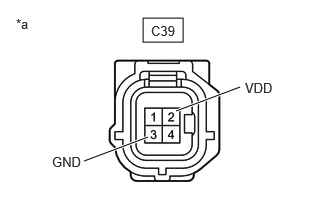

C399105C31
1.49,0.188 1.906,0.438 0.417,0.25 1.833,1.156 2.5,0.906 true 0.875,1.677 1.542,1.427 true 1.573,0.24 2.031,0.438 0.458,0.198 10 false C39 0.167,0.167 0.479,0.365 0.313,0.198 10 false *a 2.552,0.833 3.01,1.031 0.458,0.198 10 false VDD 0.542,1.604 1,1.802 0.458,0.198 10 false GND
*a Front view of wire harness connector (to Shift Stroke Sensor)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
C39-2 (VDD) - C39-3 (GND) Ignition switch ON 4.7 to 5.3 V


Result:
Proceed to
OK
NG



Post-procedure1

d.

Turn the ignition switch off.


e.

Connect the C39 shift stroke sensor connector.



OK

2.CHECK HARNESS AND CONNECTOR (SHIFT STROKE SENSOR - ECM)

NG

5.CHECK HARNESS AND CONNECTOR (SHIFT STROKE SENSOR - ECM)
2.CHECK HARNESS AND CONNECTOR (SHIFT STROKE SENSOR - ECM)

Pre-procedure1

a.

Disconnect the C39 shift stroke sensor connector.


b.

Disconnect the C71 ECM connector.


Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
C39-4 (VOUT) - C71-124 (SFV) Always Below 1 Ω
C39-4 (VOUT) or C71-124 (SFV) - Body ground and other terminals Always 10 kΩ or higher


Result:
Proceed to
OK
NG



Post-procedure1

d.

Connect the C71 ECM connector.


e.

Connect the C39 shift stroke sensor connector.



OK

3.INSPECT SHIFT STROKE SENSOR

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (SHIFT STROKE SENSOR - ECM)

Pre-procedure1

a.

Disconnect the C39 shift stroke sensor connector.


b.

Disconnect the C71 ECM connector.


Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
C39-2 (VDD) - C71-154 (VCSF) Always Below 1 Ω
C39-3 (GND) - C71-123 (E2SF) Always Below 1 Ω
C39-2 (VDD) or C71-154 (VCSF) - Body ground and other terminals Always 10 kΩ or higher
C39-3 (GND) or C71-123 (E2SF) - Body ground and other terminals Always 10 kΩ or higher


Result:
Proceed to
OK
NG



Post-procedure1

d.

Connect the C71 ECM connector.


e.

Connect the C39 shift stroke sensor connector.



OK

6.REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
