SEAT  FRONT SEAT ASSEMBLY(for GTMC Made Manual Seat)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
B543257

·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 72495 3.REMOVE VERTICAL ADJUSTING HANDLE LH (for Driver Side)

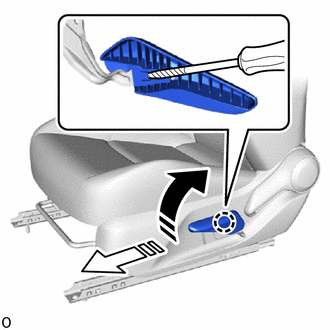

a.
B570544C01
0,0 0,0 false
V113147

Lift in this Direction
V113148

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the vertical adjusting handle LH while lifting it up.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 72552B 4.REMOVE RECLINING HINGE COVER LH

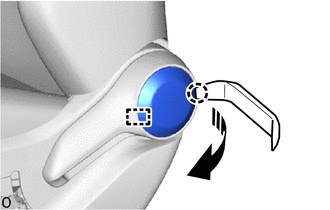

a.
B572972C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and guide and remove the reclining hinge cover LH as shown in the illustration.


Hide 72526E 5.REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

a.
B570545

Detach the guide and remove the reclining adjuster release handle LH.

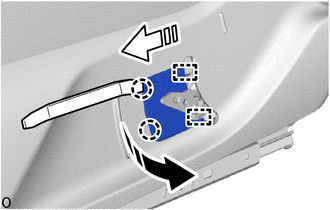

Hide 71849 6.REMOVE SEAT ADJUSTER COVER CAP LH (for Driver Side)

a.
B517389C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Using moulding remover A, detach the claw in the removal direction (1) shown in the illustration.


b.

Pull in the removal direction (2) shown in the illustration and detach the guide and remove the seat adjuster cover cap LH.


Hide 71812D 7.REMOVE FRONT SEAT CUSHION SHIELD LH (for Driver Side)

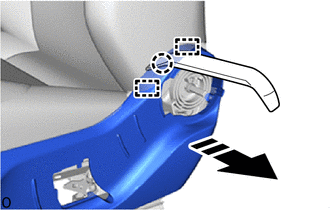

a.
B570546C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and guide.

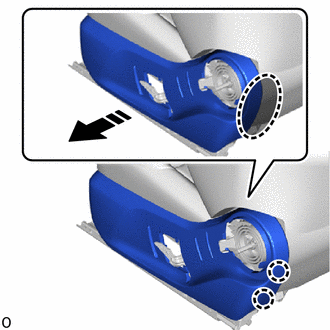

b.
B572973C01
0,0 0,0 false
V113147

Remove in this Direction


Place your hand at the position shown in the illustration and pull in the removal direction and detach the claw.

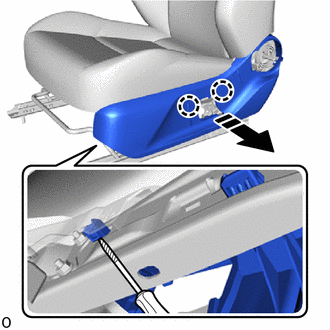

c.
B570547C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.

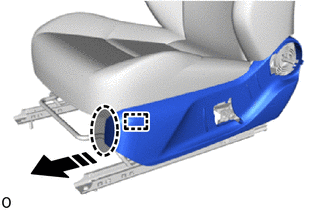

d.
B570548C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration and pull in the removal direction and detach the guide and remove the front seat cushion shield LH.


Hide 71811D 8.REMOVE FRONT SEAT CUSHION SHIELD RH (for Front Passenger Side)

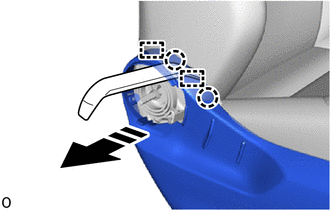

a.
B570549C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and guide.


b.
B517448C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction

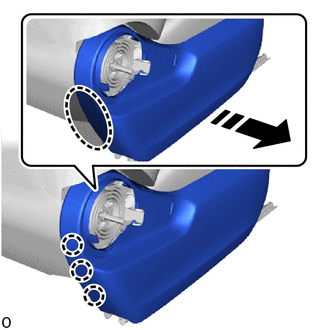

Place your hand at the position shown in the illustration and pull in the removal direction and detach the claw.

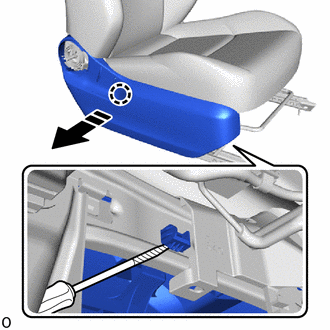

c.
B570550C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.

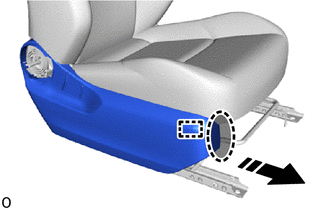

d.
B570551C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration and pull in the removal direction and detach the guide and remove the front seat cushion shield RH.


Hide 71862 9.REMOVE FRONT SEAT INNER CUSHION SHIELD LH (for Driver Side)

a.
B570552C01
0,0 0,0 false
V113147

Remove in this Direction

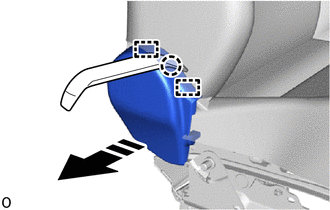

Using moulding remover A, detach the claw and guide.

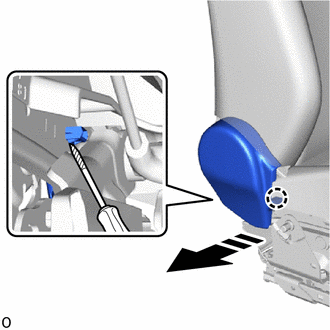

b.
B570553C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.

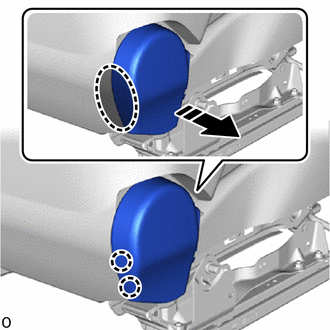

c.
B570554C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration and pull in the removal direction and detach the claw and remove the front seat inner cushion shield LH.

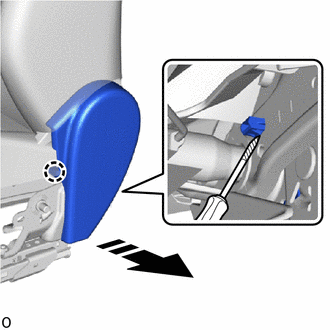

Hide 71862 10.REMOVE FRONT SEAT INNER CUSHION SHIELD RH (for Front Passenger Side)

a.
B570555C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and guide.


b.
B570556C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.



c.
B572974C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction

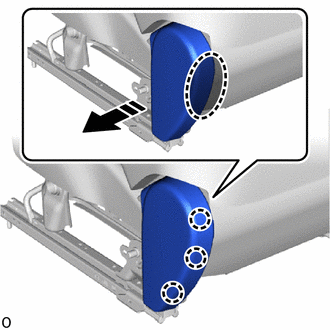

Place your hand at the position shown in the illustration and pull in the removal direction and detach the claw and remove the front seat inner cushion shield RH.


Hide 72498A 11.REMOVE VERTICAL ADJUSTER BRACKET COVER LH (for Driver Side)

a.
B517441

Detach the claw and guide and remove the vertical adjuster bracket cover LH.


Hide 12.REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

a.
B517405

Detach the band.


b.
B570557C01
0,0 0,0 false

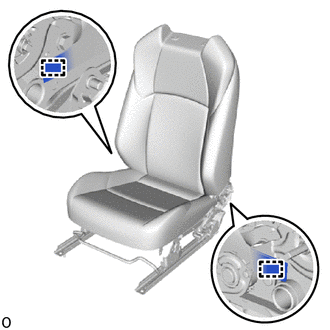

Detach the hook.


c.
B572963

Detach the clamp and claw.


d.
B570558

Remove the 4 bolts.


e.
B570559C02
0,0 0,0 false
V100155

Protective Tape

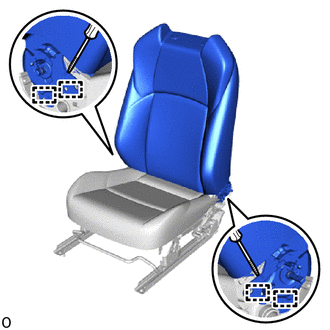

Using a screwdriver, detach the guide and remove the separate type front seatback assembly.

HINT:

Tape the screwdriver tip before use.



Hide 13.REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

a.
B572991

Detach the hook.


b.
B521428

Open the 2 fasteners.

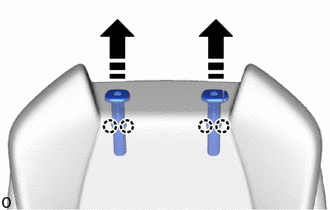

c.
B570560C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the 2 front seat headrest supports as shown in the illustration.


d.

Remove the separate type front seatback cover with pad.


Hide 71074S 14.REMOVE SEPARATE TYPE FRONT SEATBACK COVER

a.

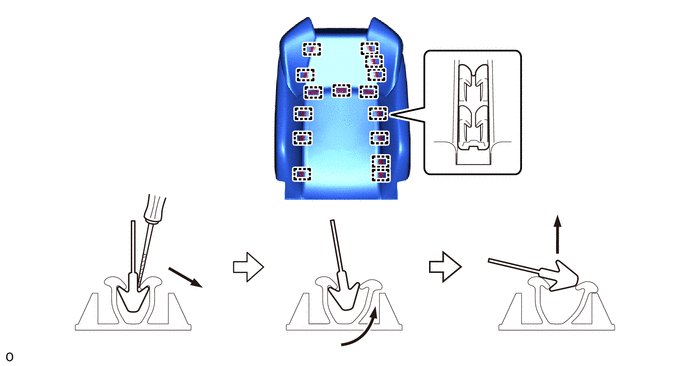

Using a thin-bladed screwdriver, detach the hook and remove the separate type front seatback cover from the separate type front seatback pad as shown in the illustration.

B574709C01
0,0 0,0 false
V100155

Protective Tape - -


NOTICE:

Be careful not to dirty or damage the separate type front seatback cover.


HINT:

Tape the thin-bladed screwdriver tip before use.

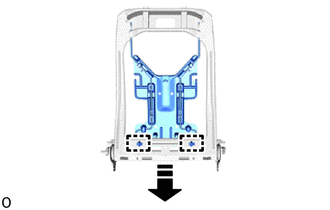

Hide 71587B 16.REMOVE FRONT SEATBACK EDGE PROTECTOR

a.
B517414C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the clamp.


b.

Pull in the removal direction shown in the illustration and remove the front seatback spring sub-assembly LH.

HINT:

Remove the 2 front seatback edge protectors together with the front seatback spring sub-assembly LH.



c.
B517416C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the 2 front seatback edge protectors.

HINT:

Tape the thin-bladed screwdriver tip before use.

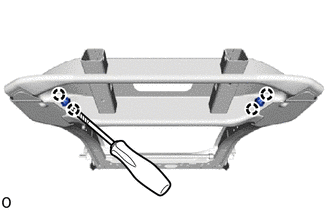

Hide 71759D 17.REMOVE FRONT NO. 2 SEATBACK HOOK

a.
B517418C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the 2 front No. 2 seatback hooks.

NOTICE:

Do not reuse the removed front No. 2 seatback hook.


HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 18.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

a.
B521490C01
0,0 0,0 false
V100155

Protective Tape


for Front Passenger Side:

i.

Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.




b.
B521422

Detach the hook.


c.

Detach the hook and remove the separate type front seat cushion cover with pad.

B521423


Hide 71072S 19.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

a.
B521424C01
1.021,1.99 1.677,1.594 true 0.854,1.948 1.167,2.104 0.313,0.156 10 false *a
*a Band
V113147

Remove in this Direction


Detach the band.

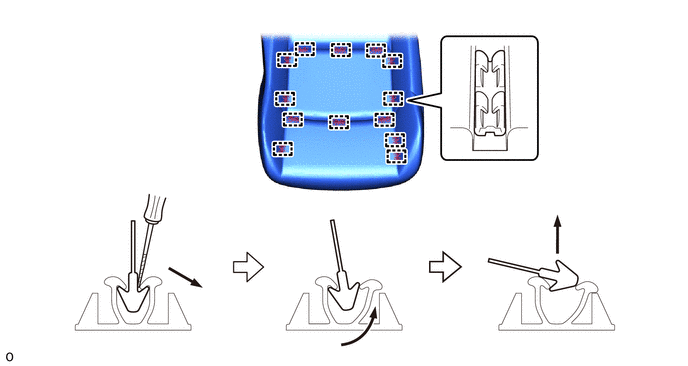

b.

Using a thin-bladed screwdriver, detach the hook and remove the separate type front seat cushion cover from the separate type front seat cushion pad as shown in the illustration.

B574710C01
0,0 0,0 false
V100155

Protective Tape - -


NOTICE:

Be careful not to dirty or damage the separate type front seat cushion cover.


HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 82666M 20.REMOVE CONNECTOR HOLDER (for Front Passenger Side)

a.
B521492C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the connector holder.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 71876G 21.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER LH (for Driver Side)

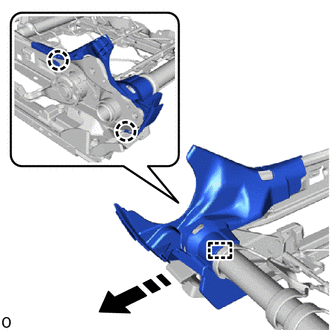

a.
B517422C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and hook and remove the LH seat reclining adjuster inside cover LH as shown in the illustration.

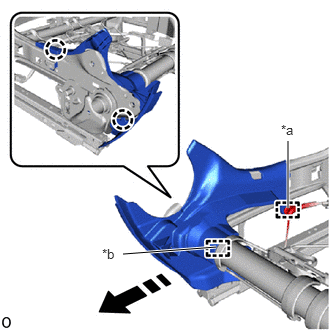

Hide 71876F 22.REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER LH (for Front Passenger Side)

a.
B521404C01
1.281,2.646 2.25,2.573 true 3,1.469 3,2.167 true 2.927,1.271 3.24,1.427 0.313,0.156 10 false *a 1.063,2.563 1.375,2.719 0.313,0.156 10 false *b
*a Clamp
*b Hook
V113147

Remove in this Direction


Detach the claw and hook and remove the RH seat reclining adjuster inside cover LH as shown in the illustration.


Hide 71875G 23.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER RH (for Driver Side)

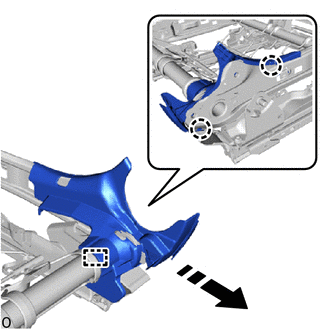

a.
B517424C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and hook and remove the LH seat reclining adjuster inside cover RH as shown in the illustration.

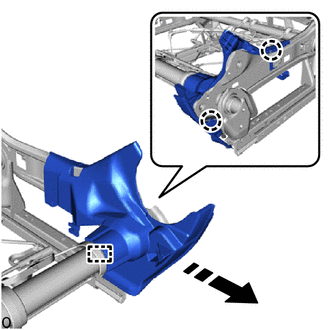

Hide 71875F 24.REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER RH (for Front Passenger Side)

a.
B521408C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and hook and remove the RH seat reclining adjuster inside cover RH as shown in the illustration.

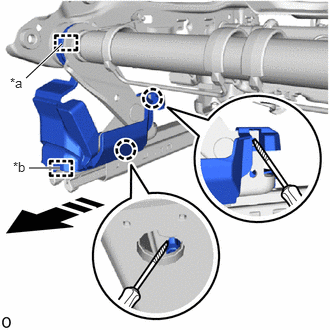

Hide 71874A 25.REMOVE FRONT SEAT LOWER CUSHION SHIELD LH (for Driver Side)

a.
B517426C01
0.271,0.813 0.646,0.458 true 0.302,1.75 0.625,1.75 true 0.104,0.781 0.417,0.979 0.313,0.198 10 false *a 0.135,1.656 0.448,1.854 0.313,0.198 10 false *b
*a Hook
*b Guide
V113147

Remove in this Direction
V100155

Protective Tape


Detach the hook.


b.

Using a thin-bladed screwdriver, detach the claw as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



c.

Pull in the removal direction shown in the illustration and detach the guide and remove the front seat lower cushion shield LH.

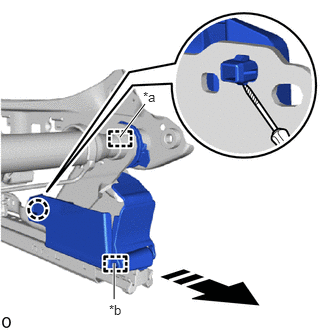

Hide 71873A 26.REMOVE FRONT SEAT LOWER CUSHION SHIELD RH (for Driver Side)

a.
B517428C01
1.25,1.427 1.51,1.083 true 1.188,3.115 1.188,2.74 true 1.49,0.927 1.802,1.125 0.313,0.198 10 false *a 1.135,3.146 1.448,3.344 0.313,0.198 10 false *b
*a Hook
*b Guide
V113147

Remove in this Direction
V100155

Protective Tape


Detach the hook.


b.

Using a thin-bladed screwdriver, detach the claw as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



c.

Pull in the removal direction shown in the illustration and detach the guide and remove the front seat lower cushion shield RH.


Hide 7181B 27.REMOVE FRONT SEAT CUSHION WIRE HARNESS HOLDER LH

a.
B517430

Remove the 2 screws.


b.

Detach the guide and remove the front seat cushion wire harness holder LH.

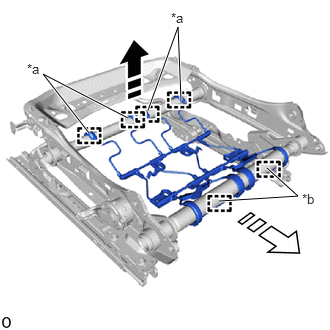

Hide 71052A 28.REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY LH

a.
B517433C01
0.927,1.385 0.448,0.771 0.448,0.771 1.333,1.229 true 1.542,1.146 1.854,0.281 1.854,0.281 1.885,1.042 true 2.281,2.094 3.104,2.042 3.104,2.042 2.781,1.75 true 0.281,0.635 0.594,0.792 0.313,0.156 10 false *a 3.146,1.99 3.396,2.177 0.25,0.188 10 false *b 1.781,0.104 2.094,0.26 0.313,0.156 10 false *a
*a Hook A
*b Hook B
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Pull in the removal direction (1) shown in the illustration and detach the hook A.


b.

Pull in the removal direction (2) shown in the illustration to detach the hook B and remove the front seat cushion spring sub-assembly LH.


Hide 72211C 29.REMOVE SEAT TRACK ADJUSTING HANDLE

a.
B517437C01
0,0 0,0 false
V100155

Protective Tape


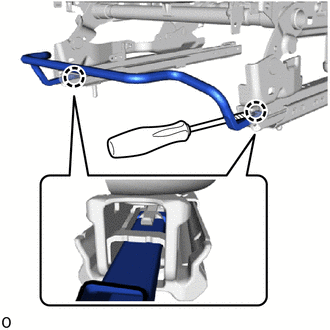

Using a screwdriver, detach the claw and remove the seat track adjusting handle.

HINT:

Tape the screwdriver tip before use.

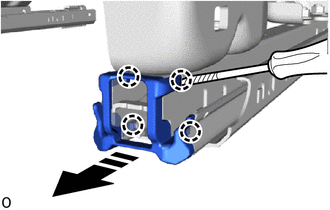

Hide 72266 30.REMOVE SEAT UPPER TRACK RAIL COVER LH

a.
B517439C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the seat upper track rail cover LH.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 72265 31.REMOVE SEAT UPPER TRACK RAIL COVER RH

HINT:

Use the same procedure described for the LH side.

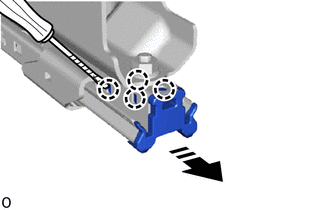

Hide 72125T 32.REMOVE FRONT SEAT REAR UPPER TRACK COVER LH

a.
B529786C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the front seat rear upper track cover LH.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 72125S 33.REMOVE FRONT SEAT REAR UPPER TRACK COVER RH

HINT:

Use the same procedure described for the LH side.
