RM36D0EC _58 Vehicle Interior _083102 SEAT _0419054 FRONT SEAT ASSEMBLY(for SFTM Made Manual Seat) A

SEAT  FRONT SEAT ASSEMBLY(for SFTM Made Manual Seat)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
B543257

·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 72526E 1.REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

a.

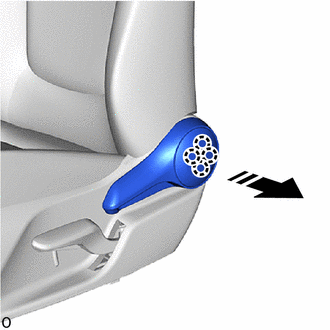

B555753C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the reclining adjuster release handle LH as shown in the illustration.


Hide 72495 2.REMOVE VERTICAL ADJUSTING HANDLE LH (for Driver Side)

a.

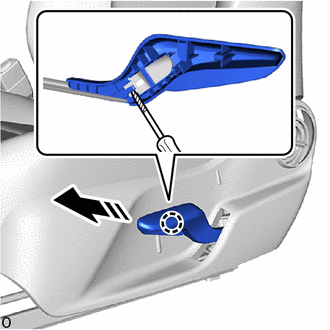

B555755C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw as shown in the illustration and remove the vertical adjusting handle LH while lifting it up.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 71812D 3.REMOVE FRONT SEAT CUSHION SHIELD LH

a.

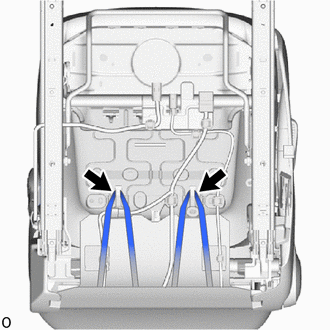

B555757

Detach the band.


b.

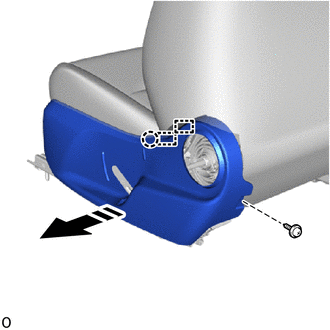

B555761C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the screw.


c.

Detach the claw and guide as shown in the illustration.


d.

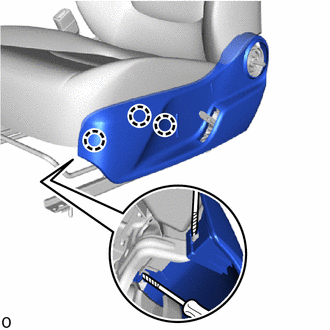

B555763C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the front seat cushion shield LH.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 71862 6.REMOVE FRONT SEAT INNER CUSHION SHIELD LH

a.

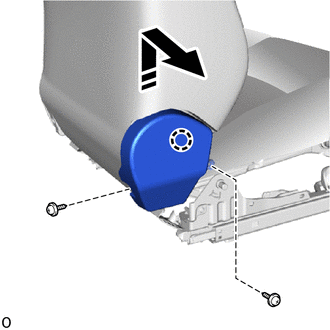

B555773C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 screws.


b.

Detach the claw and remove the front seat inner cushion shield LH as shown in the illustration.

HINT:

Remove the LH seat reclining adjuster inside cover RH together with the front seat inner cushion shield LH.



Hide 71875G 7.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER RH

a.
B555775

Detach the claw and remove the LH seat reclining adjuster inside cover RH from the front seat inner cushion shield LH.


Hide 8.REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

a.

for Driver Side:

i.

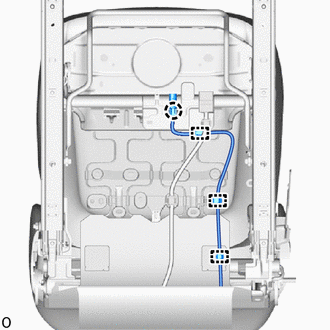

B672190

Detach the claw and clamp.



b.

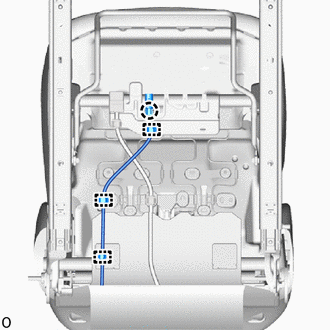

for Front Passenger Side:

i.
B672191

Detach the claw and clamp.



c.

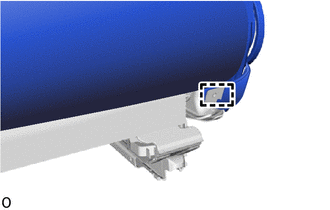

B555778

Detach the hook.


d.

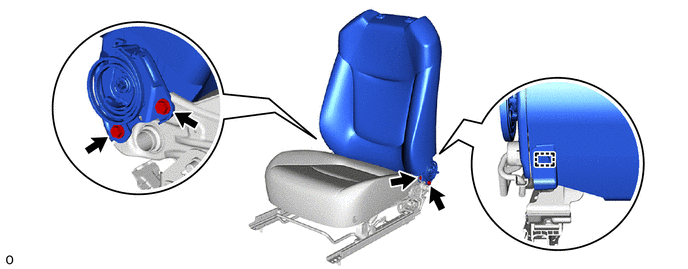

Remove the 4 bolts.

B555779


e.

Detach the guide and remove the separate type front seatback assembly.

HINT:

Remove the reclining adjuster inside cover LH together with the separate type front seatback assembly.



Hide 71876G 9.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER LH

a.
B555780

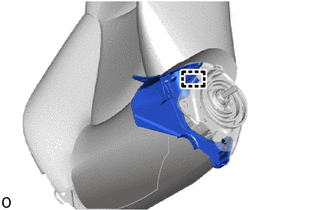

Detach the guide and remove the LH seat reclining adjuster inside cover LH from the separate type front seatback assembly.


Hide 10.REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

a.
B555781

Open the 2 fasteners.


b.

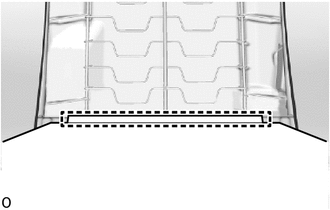

B555783

Detach the hook.


c.
B555784

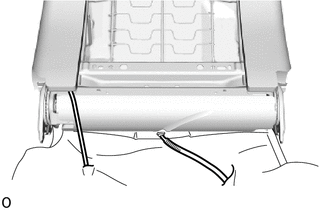

Pass the wire harness through the hole on the separate type front seatback cover.


d.

Insert a screwdriver through the hole on the frame and detach the claw.

HINT:

Tape the screwdriver tip before use.


B553668C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape



e.

Detach the guide and remove the 2 front seat headrest supports as shown in the illustration.


f.

Remove the separate type front seatback cover with pad.


Hide 71074S 11.REMOVE SEPARATE TYPE FRONT SEATBACK COVER

a.
B553670C01
0,0 0,0 false
V100155

Fastening Tape


Detach the fastening tape.


b.

Remove the 16 hog rings.

NOTICE:

Be careful not to dirty or damage the separate type front seatback cover.



Hide 13.REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY LH

a.

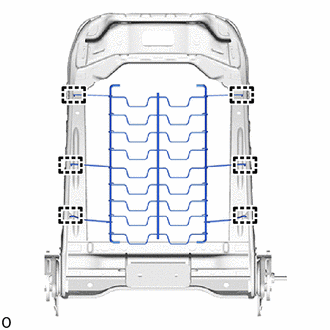

B555785

Detach the hook and remove the front seatback spring sub-assembly LH.


Hide 14.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

a.

for Front Passenger Side:

i.
B555786

Detach the claw and remove the connector of the occupant detection sensor.



b.

Detach the hook and remove the separate type front seat cushion cover with pad.

B555787


Hide 71072S 15.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

a.
B553672

Remove the 14 hog rings and separate type front seat cushion cover from the separate type front seat cushion pad.

NOTICE:

Be careful not to dirty or damage the separate type front seat cushion cover.



Hide 71052A 16.REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY LH

a.

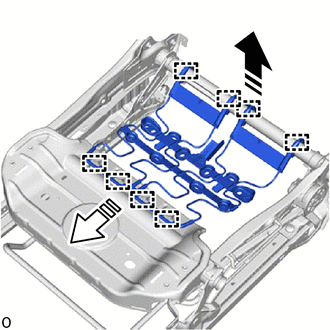

B555788C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Pull in the removal direction (1) shown in the illustration and detach the hook on the rear side of the front seat cushion spring sub-assembly LH.


b.

Pull in the removal direction (2) shown in the illustration, detach the hook on the front side and remove the front seat cushion spring sub-assembly LH.


Hide 71703E 17.REMOVE FRONT SEAT CUSHION PANEL SUB-ASSEMBLY LH (for Driver Side)

a.

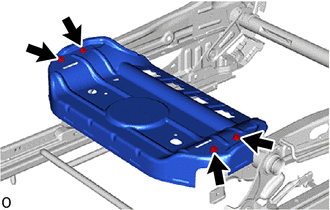

B555790

Remove the 4 bolts and front seat cushion panel sub-assembly LH.


Hide 18.REMOVE SEAT TRACK COVER

a.

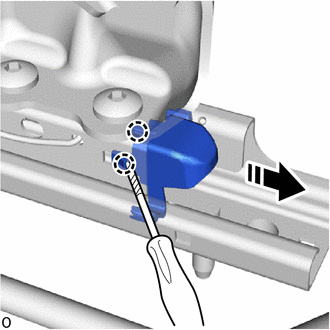

B555791C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the seat track cover as shown in the illustration.

HINT:
·

Tape the thin-bladed screwdriver tip before use.

·

Use the same procedure for all seat track covers.




Hide 71874C 19.REMOVE FRONT SEAT LOWER CUSHION SHIELD LH (for Driver Side)

a.

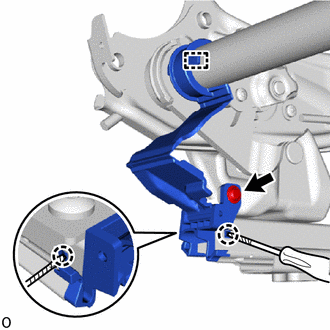

B555811C01
0,0 0,0 false
V100155

Protective Tape


Detach the hook.


b.

Remove the screw.


c.

Using a thin-bladed screwdriver, detach the claw and remove the front seat lower cushion shield LH.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 71873A 20.REMOVE FRONT SEAT LOWER CUSHION SHIELD RH (for Driver Side)

a.

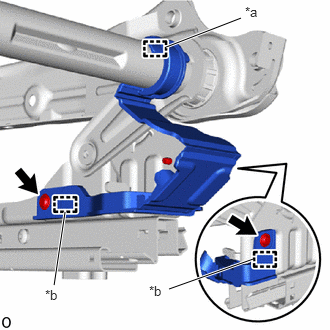

B555813C02
1.729,0.49 2.51,0.188 true 0.563,2.969 0.677,2.208 true 1.76,3.01 2.635,2.698 true 2.552,0.042 2.865,0.198 0.313,0.156 10 false *a 0.469,2.99 0.781,3.146 0.313,0.156 10 false *b 1.552,2.948 1.74,3.146 0.188,0.198 10 false *b
*a Hook
*b Guide


Detach the hook.


b.

Remove the 2 screws.


c.

Detach the guide and remove the front seat lower cushion shield RH.
