SEAT BELT  OCCUPANT DETECTION SENSOR(for SFTM Made Power Seat)  COMPONENTS

ILLUSTRATION

0.833,4.167 1.25,4.167 false 2.583,1.667 3.083,1.667 false 5.5,4.083 5.948,4.083 false 5.333,4 5.667,4.167 0.333,0.167 10 false *1 3.083,1.583 3.479,1.74 0.396,0.156 10 false *2 0.667,4.083 1.083,4.333 0.417,0.25 10 false *3 6.667,4.417 7,4.583 0.333,0.167 10 false x 2

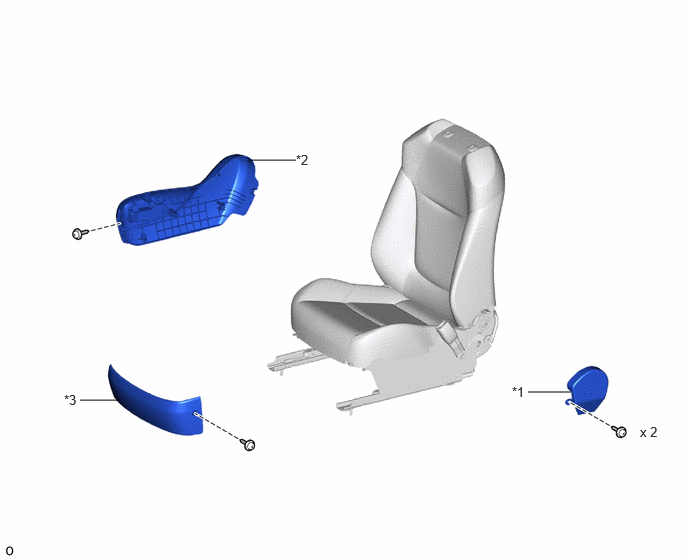

*1	FRONT INNER SEAT CUSHION SHIELD RH	*2	FRONT SEAT CUSHION SHIELD RH
*3	FRONT SEAT FRONT CUSHION SHIELD RH	-	-

ILLUSTRATION

5.417,3.083 6.167,3.25 0.75,0.167 5.375,3.042 6.208,3.292 0.833,0.25 2.563,1.833 2.917,1.833 false 5.25,1.833 5.667,1.833 false 5.792,3.083 5.792,2.792 false 3,1.75 3.333,2 0.333,0.25 10 false *1 5.667,1.75 6,2 0.333,0.25 10 false *2 5.854,2.583 6.188,2.833 0.333,0.25 10 false x 4 5.5,3.083 6.5,3.25 1,0.167 8 false 45 (459, 33)

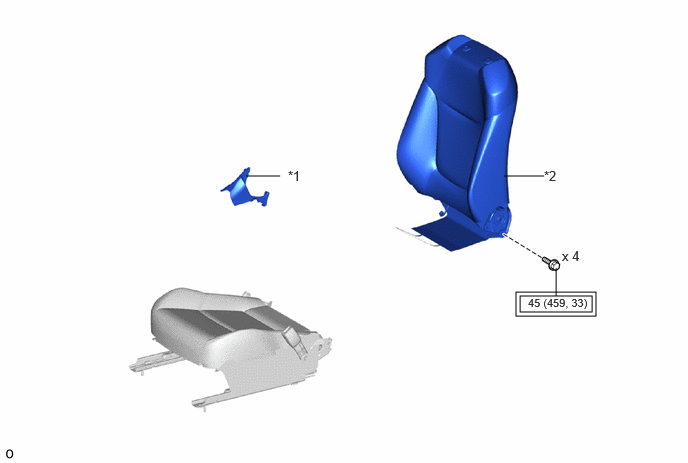

*1	RH SEAT RECLINING ADJUSTER INSIDE COVER	*2	SEPARATE TYPE FRONT SEATBACK ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	-	-

ILLUSTRATION

1,0.083 6.083,3.667 5.083,3.583 1.833,2.667 2.5,2.667 false 6.083,2.333 6.667,2.333 false 1.833,0.75 2.5,0.75 false 4.875,2.042 5,2.333 5,2.333 5.25,2.333 false 6.667,2.25 7,2.5 0.333,0.25 10 false *1 1.667,2.583 2,2.833 0.333,0.25 10 false *2 1.667,0.667 2,0.917 0.333,0.25 10 false *3 5,2 5.5,2.25 0.5,0.25 10 false x 14 5.25,2.25 5.583,2.5 0.333,0.25 10 false ●*4

*1	SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD	*2	SEPARATE TYPE FRONT SEAT CUSHION PAD (OCCUPANT DETECTION SENSOR)
*3	SEPARATE TYPE FRONT SEAT CUSHION COVER	*4	HOG RING
●	Non-reusable part	-	-
