RM36D0EC _58 Vehicle Interior _083102 SEAT _0401764 SEAT HEATER SWITCH(for Front Seat) A

SEAT SEAT HEATER SWITCH(for Front Seat) REMOVAL

PROCEDURE

Hide Display 33504F 1.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

a.

for CVT:

i.

K121:

Click hereDrivetrain>K121 (CVT)>SHIFT LEVER KNOB>REMOVAL202304,999999,_52,_138176,_0579407,RM1000000029ENY_01_0004,

ii.

K121F:

Click hereDrivetrain>K121F (CVT)>SHIFT LEVER KNOB>REMOVAL202304,999999,_52,_138817,_0584991,RM1000000029ILS_01_0004,

b.

for HV Model:

Click hereDrivetrain>P710 (HYBRID TRANSMISSION / TRANSAXLE)>SHIFT LEVER KNOB>REMOVAL201910,999999,_52,_083113,_0400521,RM100000001J8EL_01_0004,

Hide Display 58804A 2.REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_083106,_0400608,RM1000000029Q1K_01_0002,

Hide Display 58813 3.REMOVE UPPER CONSOLE BOX

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_083106,_0400608,RM1000000029Q1K_01_0004,

Hide Display 58805C 4.REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_083106,_0400608,RM1000000029Q1K_01_0005,

Hide Display 55900 5.REMOVE AIR CONDITIONING CONTROL ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL>REMOVAL201910,999999,_58,_083104,_0403077,RM100000001JNHR_01_0001,

Hide Display 55434B 6.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0007,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0007,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0007,

Hide Display 84751 7.REMOVE SEAT HEATER SWITCH (for LH Side)

a.

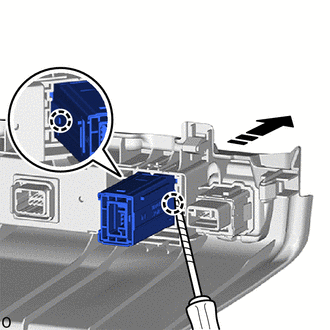

B521479C01

0,0 0,0 false

	Remove in this Direction
	Protective Tape

Using a thin-bladed screwdriver, detach the claw and remove the seat heater switch.

HINT:: Tape the thin-bladed screwdriver tip before use.

Hide Display 84751 8.REMOVE SEAT HEATER SWITCH (for RH Side)

HINT:: Use the same procedure described for the LH side.
