RM36D0EC _56 Audio / Visual / Telematics _083087 TELEMATICS _0402655 TELEMATICS SYSTEM J

TELEMATICS  TELEMATICS SYSTEM  Received Voice Signal Circuit

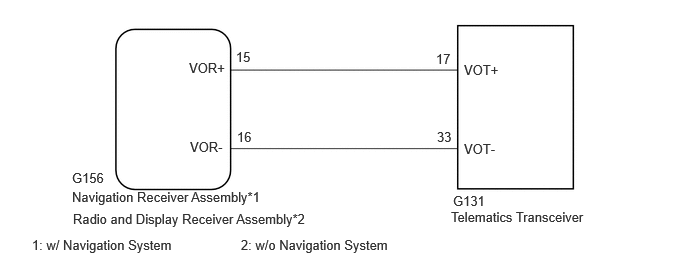

WIRING DIAGRAM

E284012E33
2.458,0.51 3.073,0.708 0.615,0.198 10 false 15 1.969,0.625 2.583,0.823 0.615,0.198 10 false VOR+ 1.979,1.448 2.594,1.646 0.615,0.198 10 false VOR- 4.833,0.646 5.448,0.844 0.615,0.198 10 false VOT+ 4.833,1.469 5.448,1.667 0.615,0.198 10 false VOT- 0.75,1.771 1.365,1.969 0.615,0.198 10 false G156 0.75,1.969 2.781,2.26 2.031,0.292 10 false Navigation Receiver Assembly*1 2.469,1.344 2.76,1.542 0.292,0.198 10 false 16 4.552,1.344 4.844,1.542 0.292,0.198 10 false 33 4.542,0.531 4.833,0.729 0.292,0.198 10 false 17 4.719,2.01 5.333,2.208 0.615,0.198 10 false G131 4.698,2.177 6.271,2.396 1.573,0.219 10 false Telematics Transceiver 0.76,2.198 3.448,2.427 2.688,0.229 10 false Radio and Display Receiver Assembly*2 0.333,2.469 3.021,2.698 2.688,0.229 10 false 1: w/ Navigation System 2.51,2.469 5.198,2.698 2.688,0.229 10 false 2: w/o Navigation System

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Telematics System.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM>PRECAUTION

·

Before replacing the telematics transceiver, refer to Service Bulletin.



PROCEDURE

1.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY OR RADIO AND DISPLAY RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)

*1: w/ Navigation System

*2: w/o Navigation System


a.

Disconnect the G156 navigation receiver assembly*1, radio and display receiver assembly*2 connector.


b.

Disconnect the G131 telematics transceiver connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G156-15 (VOR+) - G131-17 (VOT+) Always Below 1 Ω
G156-16 (VOR-) - G131-33 (VOT-) Always Below 1 Ω
G156-15 (VOR+) - Body ground Always 10 kΩ or higher
G156-16 (VOR-) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

2.CHECK TELEMATICS TRANSCEIVER

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.CHECK TELEMATICS TRANSCEIVER
a.

Remove the telematics transceiver with the connectors still connected.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


b.

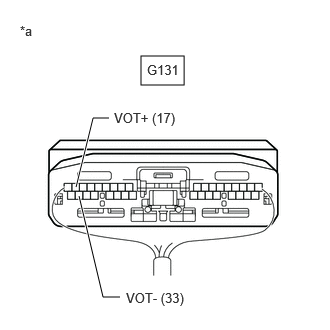

E427042C17
1.469,0.583 1.917,0.885 0.448,0.302 0.823,2.042 1.073,3.094 1.073,3.094 1.25,3.094 true 0.792,1.948 0.969,1.229 0.969,1.229 1.135,1.229 true 1.188,1.146 2.052,1.427 0.865,0.281 10 false VOT+ (17) 1.313,3.021 1.958,3.271 0.646,0.25 10 false VOT- (33) 0.208,0.24 0.458,0.427 0.25,0.188 10 false *a 1.531,0.646 2.167,1.01 0.635,0.365 10 false G131
*a Component with harness connected
(Telematics Transceiver)


Check for pulses according to the value(s) in the table below.

Standard:
Tester Connection Condition Specified Condition
G131-17 (VOT+) - Body ground Calling while using the operator service A waveform synchronized with the sent voice is output
G131-33 (VOT-) - Body ground Calling while using the operator service A waveform synchronized with the sent voice is output



Result:
Result Proceed to
OK (w/ Navigation System) A
OK (w/o Navigation System) B
NG C



A

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


B

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL


C

3.REPLACE TELEMATICS TRANSCEIVER
3.REPLACE TELEMATICS TRANSCEIVER
a.

Replace the telematics transceiver with a new one.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


Result:
Proceed to
NEXT



NEXT

PERFORM REGISTRATION

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM>REGISTRATION
