DOOR LOCK  DOOR CONTROL BATTERY  INSTALLATION

8598A 1.INSTALL DOOR CONTROL BATTERY

a.

0,0 0,0 false

Install in this Direction

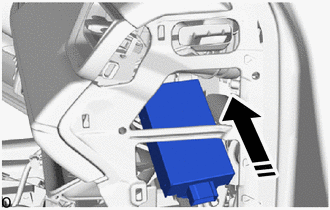

Insert the door control battery to the instrument panel safety pad sub-assembly as shown in the illustration.

b.

0,0 0,0 false

Install in this Direction

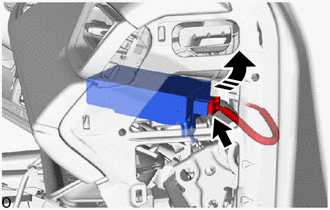

Connect the connector and reposition the door control battery in the direction of the arrow shown in the illustration.

c.

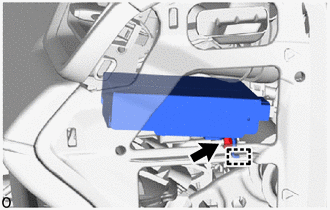

Attach the guide and temporarily install the door control battery.

d.

Install the door control battery with the nut.

Torque:

5.5 N*m (56 kgf*cm, 49 in.*lbf)

55433B 2.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

55550 3.INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

55607 4.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

55317A 5.INSTALL INSTRUMENT SIDE PANEL RH

a.

0,0 0,0 false

Install in this Direction

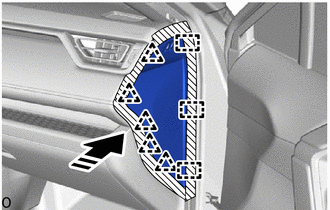

Attach the guide as shown in the illustration.

b.

Attach the clip and install the instrument side panel RH.

c.

Remove the protective tape.

62311B 6.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

62111C 7.INSTALL COWL SIDE TRIM BOARD RH

67913B 8.INSTALL FRONT DOOR SCUFF PLATE RH
