RM36D0EC _58 Vehicle Interior _083092 DOOR LOCK _0587289 DOOR CONTROL BATTERY A

DOOR LOCK DOOR CONTROL BATTERY REMOVAL

PROCEDURE

Hide Display 67913B 1.REMOVE FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0069,

Hide Display 62111C 2.REMOVE COWL SIDE TRIM BOARD RH

Hide Display 62311B 3.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: ·

Pull back the front door opening trim weatherstrip RH so that the instrument side panel RH can be removed.

·

Use the same procedure described for the LH side.

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201910,999999,_59,_083093,_0403688,RM100000001JUGA_02_0003,

Hide Display 55317A 4.REMOVE INSTRUMENT SIDE PANEL RH

0,0 0,0 false

Protective Tape

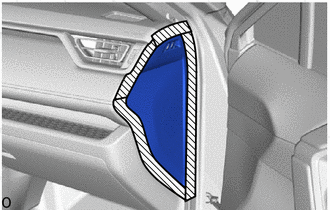

Apply protective tape around the instrument side panel RH as shown in the illustration.

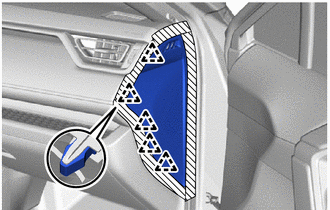

Using the moulding remover B, detach the clip.

0,0 0,0 false

Remove in this Direction

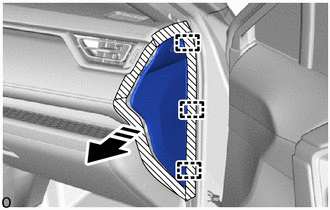

Detach the guide and remove the instrument side panel RH as shown in the illustration.

Hide Display 55607 5.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Hide Display 55550 6.REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

Hide Display 55433B 7.REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Hide Display 8598A 8.REMOVE DOOR CONTROL BATTERY

Remove the nut and guide to disconnect the door control battery as shown in the illustration.

0,0 0,0 false

Remove in this Direction

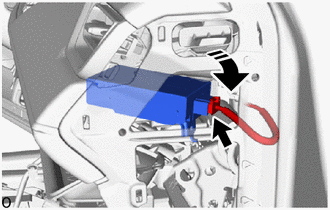

Position the connector of the door control battery facing the outside of the vehicle and disconnect it as shown in the illustration.

NOTICE:: Take care not to scratch the instrument panel reinforcement with your hands.

0,0 0,0 false

Remove in this Direction

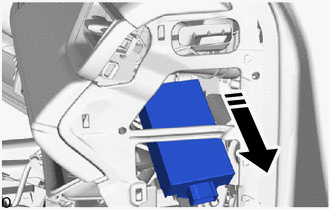

Remove the door control battery to the instrument panel reinforcement assembly as shown in the illustration.
