AUDIO / VIDEO  RADIO RECEIVER  INSTALLATION


PROCEDURE

Hide 86140A 1.INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type)

Hide 86120L 2.INSTALL NAVIGATION RECEIVER ASSEMBLY (for Navigation Receiver Type)

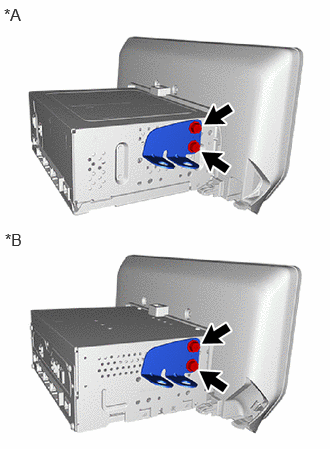

Hide 86212 3.INSTALL NO. 2 RADIO BRACKET

a.
E503641C01
0.042,0.052 0.354,0.25 0.313,0.198 12 false *A 0.052,2.396 0.354,2.76 0.302,0.365 12 false *B
*A for Radio and Display Type
*B for Navigation Receiver Type


Install the No. 2 radio bracket with the 2 screws.

Torque:
3.0 N*m (31 kgf*cm, 27 in.*lbf)

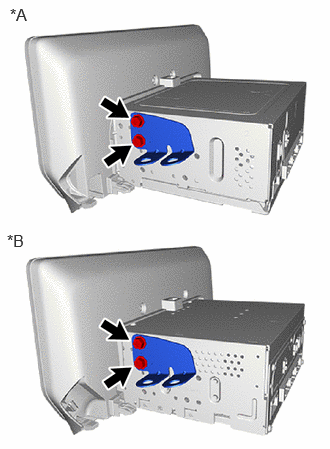

Hide 86211 4.INSTALL NO. 1 RADIO BRACKET

a.
E503642C01
0.104,0.052 0.406,0.25 0.302,0.198 12 false *A 0.073,2.406 0.385,2.656 0.313,0.25 12 false *B
*A for Radio and Display Type
*B for Navigation Receiver Type


Install the No. 1 radio bracket with the 2 screws.

Torque:
3.0 N*m (31 kgf*cm, 27 in.*lbf)


Hide 5.INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for Radio and Display Type)

a.
E503617

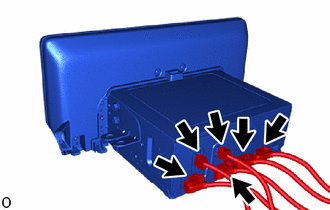

Connect the 6 connectors.


b.
E503622C01
0,0 0,0 false
V113147

Install in this Direction

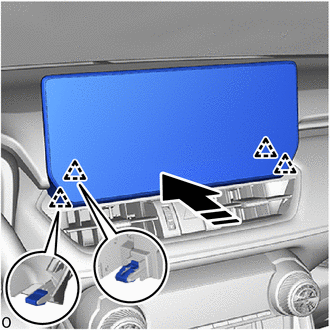

Attach the clip to install the radio and display receiver assembly with bracket as shown in the illustration.


c.
E503612N01
0.156,0.469 0.354,0.688 0.198,0.219 10 true (1) 3.042,0.427 3.26,0.656 0.219,0.229 10 true (2) 2.948,1.031 3.167,1.26 0.219,0.229 10 true (3) 0.271,1.031 0.479,1.219 0.208,0.188 10 true (4)

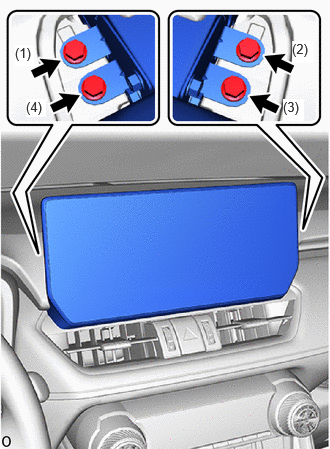

Install the 4 bolts in the order shown in the illustration.

Torque:
12 N*m (122 kgf*cm, 9 ft.*lbf)
