MAINTENANCE  FRONT TURN SIGNAL LIGHT BULB  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81510C 1.REMOVE FRONT TURN SIGNAL LIGHT BULB (for Triple Beam Headlight)

a.

for Type A:

i.
B555526C01
0.813,0.573 1.219,0.573 true 2.031,0.365 2.333,0.563 true 1.24,0.479 1.427,0.667 0.188,0.188 10 true *a 1.833,0.167 2.021,0.354 0.188,0.188 10 true *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction

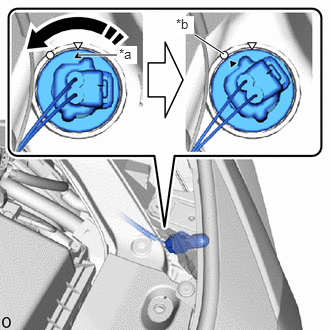

Insert a hand from the back side of the headlight, and then turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark and disconnect the bulb socket.


ii.
E409892C01
0,0 0,0 false
V113147

Remove in this Direction

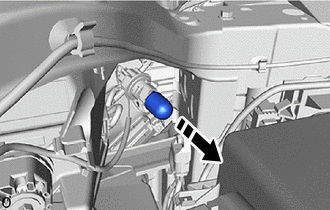

Remove the front turn signal light bulb from the bulb socket.



b.

for Type B:

i.
B573017C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the clip.


ii.

Detach the claw and guide to remove the maintenance cover LH as shown in the illustration.


iii.
E511660C01
1.333,0.854 1.156,0.74 true 1.26,0.552 0.885,0.5 true 2.958,0.469 2.667,0.563 true 2.427,0.313 2.594,0.51 true 1.302,0.479 1.49,0.667 0.188,0.188 10 true *b 2.292,0.167 2.479,0.354 0.188,0.188 10 false *b 1.375,0.802 1.563,0.99 0.188,0.188 10 true *a 2.99,0.344 3.177,0.531 0.188,0.188 10 true *a
*a Rib
*b Unlock Position
V113147

Turn in this Direction

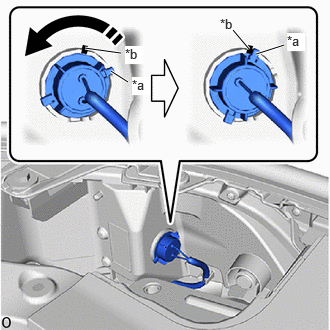

Insert a hand from the back side of the headlight, and then turn the headlight cord LH counterclockwise until the rib is aligned with the unlock position and disconnect the headlight cord LH.


iv.
E511661C01
0,0 0,0 false
V113147

Remove in this Direction

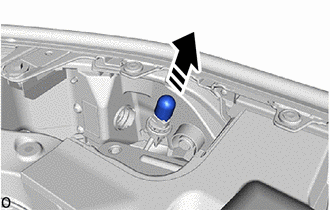

Remove the front turn signal light bulb from the headlight cord LH.



Hide 81510C 2.REMOVE FRONT TURN SIGNAL LIGHT BULB (for Single Beam Headlight)

a.
B573017C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the clip.


b.

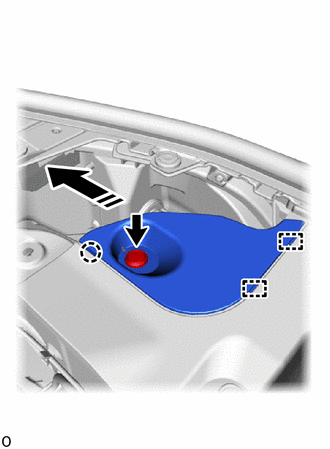

Detach the claw and guide to remove the maintenance cover LH as shown in the illustration.


c.
E511662C01
0.833,0.49 1.26,0.604 true 2.552,0.479 2.354,0.26 true 1.375,1.104 1.115,0.75 true 2.896,0.26 2.635,0.521 true 1.313,0.531 1.5,0.719 0.188,0.188 10 true *b 2.208,0.125 2.396,0.333 0.188,0.208 10 true *b 1.406,1.104 1.594,1.292 0.188,0.188 10 true *a 2.906,0.167 3.094,0.354 0.188,0.188 10 true *a
*a Rib
*b Unlock Position
V113147

Turn in this Direction

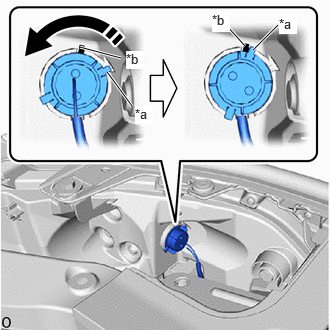

Insert a hand from the back side of the headlight, and then turn the headlight cord LH counterclockwise until the rib is aligned with the unlock position and disconnect the headlight cord LH.


d.
E511663C01
0,0 0,0 false
V113147

Remove in this Direction

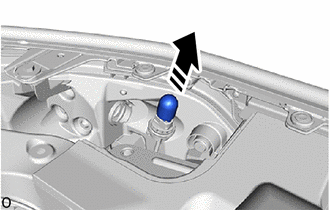

Remove the front turn signal light bulb from the headlight cord LH.
