RM36D0EC _59 Vehicle Exterior _083093 DOOR / HATCH _0403691 BACK DOOR A

DOOR / HATCH BACK DOOR REASSEMBLY

PROCEDURE

Hide Display 67005B 1.INSTALL BACK DOOR PANEL CUSHION

Attach the claw and install a new back door panel cushion.

HINT:: Use the same procedure for the RH and LH sides.

Hide Display 67837N 2.INSTALL BACK DOOR DUST PROOF SEAL

Attach the claw and guide to install the back door dust proof seal.

HINT:: Use the same procedure for the RH and LH sides.

Hide Display 67837N 3.INSTALL BACK DOOR DUST PROOF SEAL

Attach the claw and install the back door dust proof seal.

Hide Display 68984 4.INSTALL BACK DOOR STAY STOPPER (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR DRIVE UNIT>INSTALLATION202304,999999,_59,_083093,_0403697,RM1000000029UUD_02_0010,

Hide Display 68948 5.INSTALL BACK DOOR LOWER DAMPER STAY BRACKET LH (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR DRIVE UNIT>INSTALLATION202304,999999,_59,_083093,_0403697,RM1000000029UUD_02_0002,

Hide Display 68947 6.INSTALL BACK DOOR LOWER DAMPER STAY BRACKET RH (w/ Power Back Door)

HINT:: Use the same procedure described for the LH side.

Hide Display 68946 7.INSTALL BACK DOOR UPPER DAMPER STAY BRACKET LH (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR DRIVE UNIT>INSTALLATION202304,999999,_59,_083093,_0403697,RM1000000029UUD_02_0003,

Hide Display 68945 8.INSTALL BACK DOOR UPPER DAMPER STAY BRACKET RH (w/ Power Back Door)

HINT:: Use the same procedure described for the LH side.

Hide Display 9.INSTALL POWER BACK DOOR UNIT ASSEMBLY LH (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR DRIVE UNIT>INSTALLATION202304,999999,_59,_083093,_0403697,RM1000000029UUD_02_0004,

Hide Display 10.INSTALL POWER BACK DOOR UNIT ASSEMBLY RH (w/ Power Back Door)

HINT:: Use the same procedure described for the LH side.

Hide Display 68984 11.INSTALL BACK DOOR STAY STOPPER (w/o Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR SUPPORT>INSTALLATION201910,999999,_59,_083093,_0403700,RM100000001JUHH_02_0001,

Hide Display 68948 12.INSTALL BACK DOOR LOWER DAMPER STAY BRACKET LH (w/o Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR SUPPORT>INSTALLATION201910,999999,_59,_083093,_0403700,RM100000001JUHH_02_0002,

Hide Display 68947 13.INSTALL BACK DOOR LOWER DAMPER STAY BRACKET RH (w/o Power Back Door)

HINT:: Use the same procedure described for the LH side.

Hide Display 68946 14.INSTALL BACK DOOR UPPER DAMPER STAY BRACKET LH (w/o Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR SUPPORT>INSTALLATION201910,999999,_59,_083093,_0403700,RM100000001JUHH_02_0003,

Hide Display 68945 15.INSTALL BACK DOOR UPPER DAMPER STAY BRACKET RH (w/o Power Back Door)

HINT:: Use the same procedure described for the LH side.

Hide Display 68960C 16.INSTALL BACK DOOR STAY SET LH (w/o Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR SUPPORT>INSTALLATION201910,999999,_59,_083093,_0403700,RM100000001JUHH_02_0004,

Hide Display 68950C 17.INSTALL BACK DOOR STAY ASSEMBLY RH (w/o Power Back Door)

HINT:: Use the same procedure described for the back door stay set LH.

Hide Display 76802E 18.INSTALL BACK DOOR LOWER OUTSIDE GARNISH SUB-ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>BACK DOOR OUTSIDE GARNISH (for Lower Side)>INSTALLATION201910,999999,_59,_083111,_0400769,RM100000001J9NB_01_0095,

Hide Display 19.INSTALL REAR LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR LIGHT ASSEMBLY>INSTALLATION202004,999999,_59,_083096,_0402633,RM100000001MODV_01_0073,

Hide Display 20.INSTALL REAR LIGHT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 86790D 21.INSTALL REAR TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TELEVISION CAMERA (for Rear)>INSTALLATION202304,999999,_56,_083082,_0403108,RM1000000029RTA_01_0001,

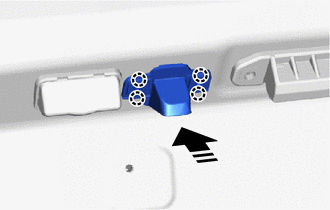

Hide Display 76825B 22.INSTALL BACK DOOR OUTSIDE GARNISH PROTECTOR (w/o Panoramic View Monitor System)

0,0 0,0 false

Install in this Direction

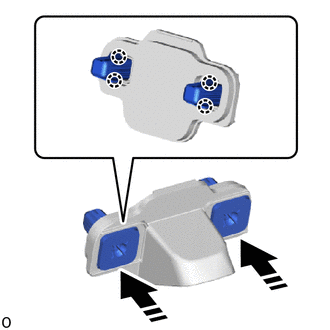

Attach the claw to install the 2 screw grommets.

0,0 0,0 false

Install in this Direction

Attach the claw and install the back door outside garnish protector.

Install the 2 screws.

Hide Display 84840G 23.INSTALL BACK DOOR OPENER SWITCH ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR OPENER SWITCH>INSTALLATION201910,999999,_59,_083093,_0403693,RM100000001JUGT_01_0002,

Hide Display 81270 24.INSTALL LICENSE PLATE LIGHT ASSEMBLY

HINT:: Use the same procedure for the RH and LH sides.; Click hereVehicle Exterior>LIGHTING (EXT)>LICENSE PLATE LIGHT ASSEMBLY>INSTALLATION202004,999999,_59,_083096,_0402636,RM100000001MOE1_01_0078,

Hide Display 76801 25.INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

for Type A

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>BACK DOOR OUTSIDE GARNISH (for Upper Side)>INSTALLATION202004,999999,_59,_083111,_0400768,RM100000001MENM_01_0095,

for Type B

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>BACK DOOR OUTSIDE GARNISH (for Upper Side)>INSTALLATION202004,999999,_59,_083111,_0400768,RM100000001MENM_01_0122,

Hide Display 67372A 26.INSTALL BACK DOOR WEIGHT

Attach the guide.

Install the back door weight with the 3 bolts.

Torque:: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

Hide Display 89222A 27.INSTALL MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR CLOSER ECU>INSTALLATION202304,999999,_59,_083093,_0403698,RM1000000029P8O_01_0018,

Hide Display 69350P 28.INSTALL BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY (w/o Power Back Door)

Click hereVehicle Interior>DOOR LOCK>BACK DOOR LOCK>INSTALLATION202304,999999,_58,_083092,_0403682,RM1000000029UUC_01_0001,

Hide Display 69350P 29.INSTALL BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY (w/ Power Back Door)

Click hereVehicle Interior>DOOR LOCK>BACK DOOR LOCK>INSTALLATION202304,999999,_58,_083092,_0403682,RM1000000029UUC_01_0003,

Hide Display 85143R 30.INSTALL REAR WIPER MOTOR GROMMET

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>INSTALLATION201910,999999,_59,_083109,_0402376,RM100000001JI3Z_01_0010,

Hide Display 85110R 31.INSTALL REAR WIPER MOTOR ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>INSTALLATION201910,999999,_59,_083109,_0402376,RM100000001JI3Z_01_0002,

Hide Display 32.INSTALL REAR WIPER ARM AND BLADE ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>INSTALLATION201910,999999,_59,_083109,_0402376,RM100000001JI3Z_01_0003,

Hide Display 85292A 33.INSTALL REAR WIPER ARM HEAD CAP

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>INSTALLATION201910,999999,_59,_083109,_0402376,RM100000001JI3Z_01_0004,

Hide Display 85345R 34.INSTALL REAR WASHER NOZZLE

Attach the claw and install the rear washer nozzle.

Connect the rear washer hose to the rear washer nozzle.

Hide Display 867C0 35.INSTALL INNER MIRROR CAMERA ASSEMBLY (w/ Digital inner mirror)

Click hereVehicle Interior>MIRROR (INT)>INNER MIRROR MONITOR CAMERA>INSTALLATION201910,999999,_58,_083098,_0400606,RM100000001J8OH_01_0001,

Hide Display 76085 36.INSTALL REAR SPOILER SUB-ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR SPOILER>INSTALLATION201910,999999,_59,_083111,_0400753,RM100000001J9LG_01_0084,

Hide Display 84280D 37.INSTALL POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR TOUCH SENSOR>INSTALLATION201910,999999,_59,_083093,_0403696,RM100000001JUH5_02_0001,

Hide Display 84270G 38.INSTALL POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)

HINT:: Use the same procedure described for the LH side.

Hide Display 84966A 39.INSTALL NO. 1 POWER BACK DOOR CONTROL SWITCH (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR CLOSER SWITCH>INSTALLATION201910,999999,_59,_083093,_0403695,RM100000001JUH1_01_0007,

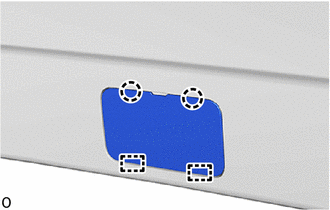

Hide Display 67766 40.INSTALL BACK DOOR NO. 2 SERVICE HOLE COVER

Attach the guide and claw to install the back door No. 2 service hole cover.

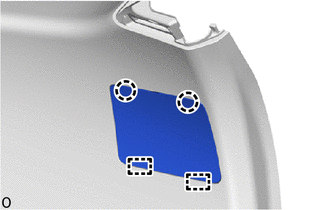

Hide Display 67848 41.INSTALL BACK DOOR SERVICE HOLE COVER LH

Attach the guide and claw to install the back door service hole cover LH.

Hide Display 67847 42.INSTALL BACK DOOR SERVICE HOLE COVER RH

HINT:: Use the same procedure described for the LH side.

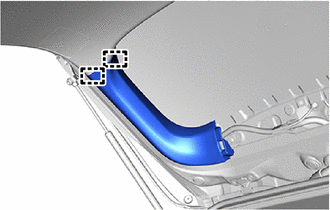

Hide Display 74654A 43.INSTALL BACK DOOR ASSIST GRIP LH

Attach the guide and claw to install the back door assist grip LH.

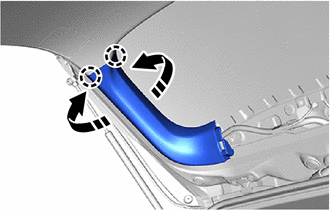

Hide Display 74653 44.INSTALL BACK DOOR ASSIST GRIP RH

HINT:: Use the same procedure described for the LH side.

Hide Display 67750 45.INSTALL BACK DOOR TRIM BOARD ASSEMBLY

Attach the clip and install the back door trim board assembly.

Install the 4 bolts.

Hide Display 67199 46.INSTALL BACK DOOR HANDLE COVER

0,0 0,0 false

Install in this Direction

Attach the claw and clip to install the back door handle cover as shown in the illustration.

HINT:: Use the same procedure for the RH and LH sides.

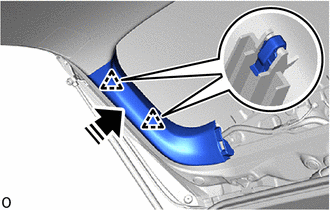

Hide Display 67938A 47.INSTALL BACK DOOR SIDE GARNISH LH

Install 2 new clips to the back door side garnish LH.

NOTICE:: If the back door side garnish LH has been removed, replace the clip with a new one.

Attach the guide.

0,0 0,0 false

Install in this Direction

Attach the clip and install the back door side garnish LH as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the claw as shown in the illustration.

Hide Display 67937B 48.INSTALL BACK DOOR SIDE GARNISH RH

HINT:: Use the same procedure described for the LH side.

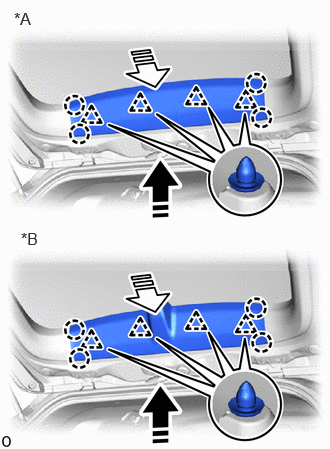

Hide Display 67939B 49.INSTALL BACK DOOR CENTER GARNISH

0.146,0.094 0.583,0.396 0.438,0.302 12 false *A 0.219,2.385 0.656,2.688 0.438,0.302 12 false *B

*A	w/o Digital Inner Mirror
*B	w/ Digital Inner Mirror
	Install in this Direction (1)
	Install in this Direction (2)

Attach the claw and clip to install the back door center garnish as shown in the illustration.

Hide Display 50. INITIALIZE POWER BACK DOOR SYSTEM (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR SYSTEM>INITIALIZATION202304,999999,_59,_083093,_0584672,RM1000000029PGT,

Hide Display 51.INSPECT POWER BACK DOOR SYSTEM (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR SYSTEM>DATA LIST / ACTIVE TEST202304,202405,_59,_083093,_0584672,RM1000000029PGX,202405,202409,_59,_083093,_0584672,RM100000002LRWN,202409,999999,_59,_083093,_0584672,RM100000002NT2L,

Hide Display 86790D 52.ADJUST REAR TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PANORAMIC VIEW MONITOR SYSTEM>CALIBRATION202304,999999,_56,_083082,_0586733,RM1000000029R9F,
