RM36D0EC _58 Vehicle Interior _083095 LIGHTING (INT) _0400591 LUGGAGE COMPARTMENT ROOM LIGHT A

LIGHTING (INT)  LUGGAGE COMPARTMENT ROOM LIGHT  REMOVAL


PROCEDURE

Hide 81330 1.REMOVE LUGGAGE COMPARTMENT LIGHT ASSEMBLY

a.
E481265C01
0,0 0,0 false
V113147

Remove in this Direction

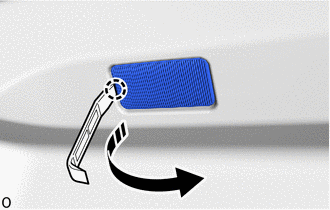

Using moulding remover A, insert it between the luggage compartment light assembly and deck trim side panel RH to detach the claw as shown in the illustration.


b.
E481266C01
0,0 0,0 false
V113147

Remove in this Direction

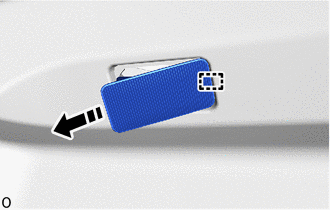

Pull out the luggage compartment light assembly to detach the guide as shown in the illustration.


c.
E481267

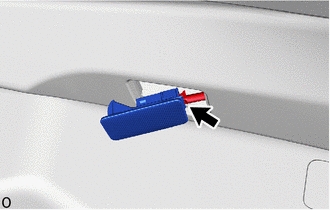

Disconnect the connector and remove the luggage compartment light assembly.
