RM36D0EC _58 Vehicle Interior _083095 LIGHTING (INT) _0400589 ROOM LIGHT A

LIGHTING (INT)  ROOM LIGHT  REMOVAL


PROCEDURE

Hide 81240 1.REMOVE NO. 1 ROOM LIGHT ASSEMBLY

a.

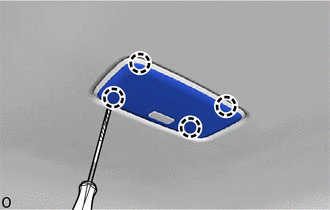

E482678C01
0,0 0,0 false
V100155

Protective Tape


Using a screwdriver with its tip wrapped in protective tape, detach the claw and remove the No. 1 room light lens.


b.

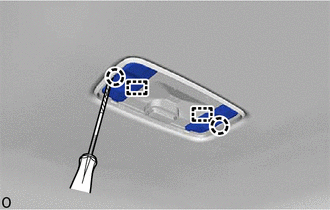

E482679C01
0,0 0,0 false
V100155

Protective Tape


Using a screwdriver with its tip wrapped in protective tape, detach the claw and guide and remove the 2 inner covers.


c.

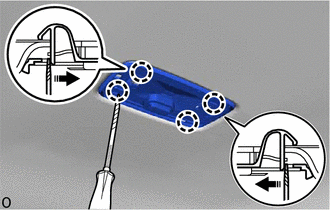

E482680C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a screwdriver with its tip wrapped in protective tape, detach the claw as shown in the illustration.


d.

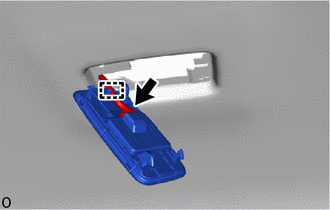

E481263

Detach the clamp.


e.

Disconnect the connector and remove the No. 1 room light housing.
