RM36D0EC _58 Vehicle Interior _083095 LIGHTING (INT) _0400585 VANITY LIGHT A

LIGHTING (INT)  VANITY LIGHT  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81340 1.INSTALL VANITY LIGHT ASSEMBLY

a.
E481256

Connect the connector to install the vanity light assembly.


b.

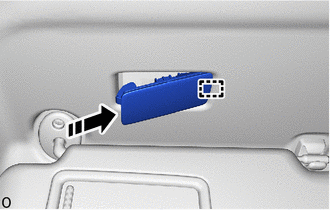

E481257C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide to set the vanity light assembly to the roof headlining assembly as shown in the illustration.


c.

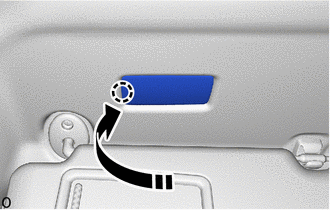

E481258C01
0,0 0,0 false
V113147

Install in this Direction


Lift up the vanity light assembly upward to attach the claw to install it as shown in the illustration.
