RM36D0EC _58 Vehicle Interior _083095 LIGHTING (INT) _0400585 VANITY LIGHT A

LIGHTING (INT)  VANITY LIGHT  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81340 1.REMOVE VANITY LIGHT ASSEMBLY

a.

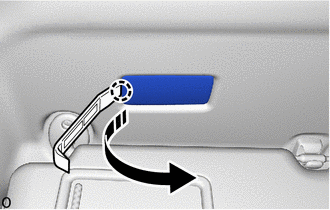

E481254C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, insert it between the vanity light assembly and roof headlining assembly to detach the claw as shown in the illustration.


b.

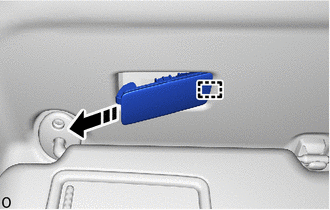

E481255C02
0,0 0,0 false
V113147

Remove in this Direction


Pull out the vanity light assembly to detach the guide as shown in the illustration.


c.

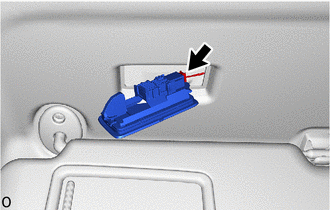

E481256

Disconnect the connector and remove the vanity light assembly.
