INTERIOR PANELS / TRIM  ROOF HEADLINING  REASSEMBLY

Attach the claw to install the deck side trim cover RH.

for Normal Roof:

i.

Apply double-sided butyl tape as shown in the illustration.

HINT:

Place the tape securely so that it is not misaligned or peeling.

0,0 0,0 false

Double-sided Butyl Tape

-

-

ii.

0,0 0,0 false

Install in this Direction

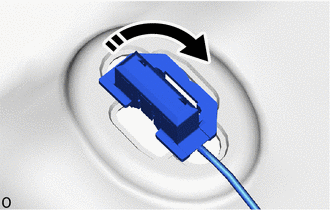

Turn the visor connectors approximately 90° clockwise to install them to the roof headlining.

iii.

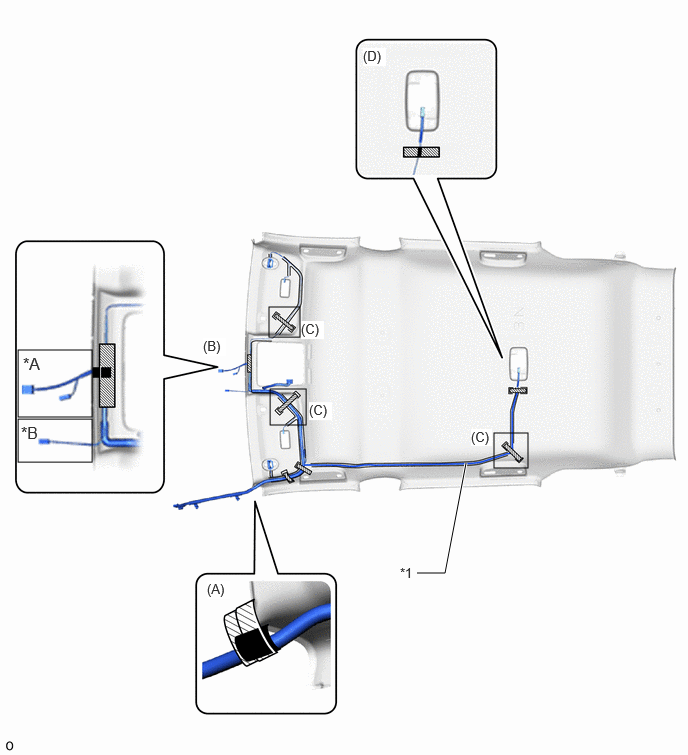

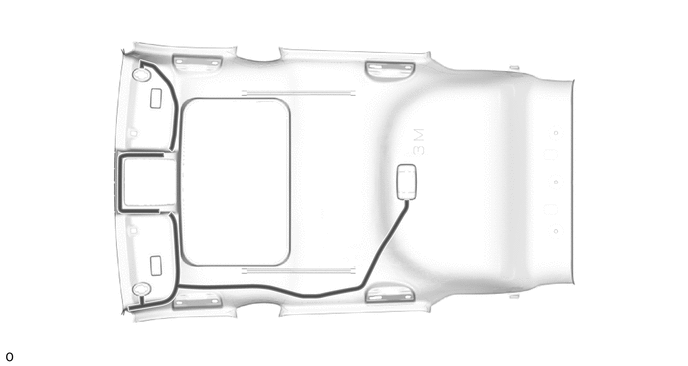

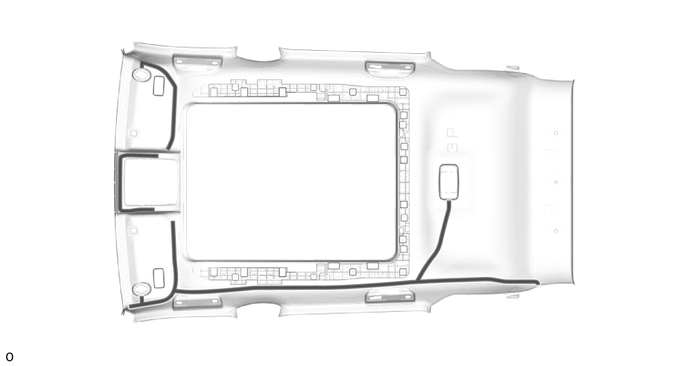

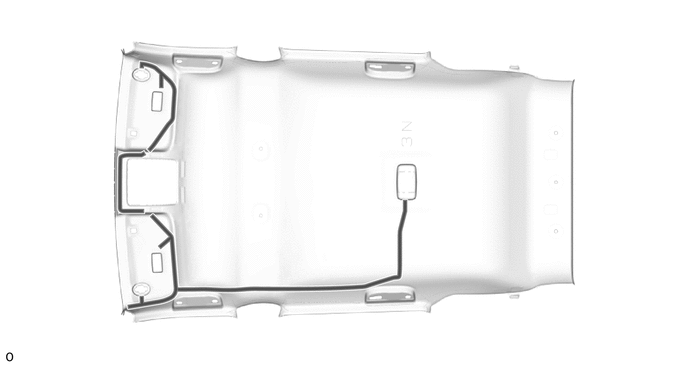

Attach the No. 1 roof wire to the double-sided butyl tape as shown in the illustration and secure the No. 1 roof wire with pieces of fastening tape.

HINT:

·

Align the positioning tape of the No. 1 roof wire with the protrusion of the roof headlining and wrap fastening tape around them as shown in the part of the illustration labeled (A).

·

Secure the No. 1 roof wire so that the positioning tape does not protrude from the cutout of the roof headlining as shown in the part of the illustration labeled (B).

·

Adjust the extra length of the No. 1 roof wire in the part of the illustration labeled (C) and apply fastening tape.

·

Align the positioning tape of the No. 1 roof wire with the marking on the roof headlining and apply tape as shown in the part of the illustration labeled (D).

·

Apply the No. 1 roof wire so that it is securely attached and not twisted.

2.802,3.198 3.125,3.51 0.323,0.313 2.813,4.052 3.188,4.427 0.375,0.375 5.146,4.51 5.5,4.875 0.354,0.365 0.188,3.646 0.958,4.344 0.771,0.698 0.188,4.365 0.958,4.813 0.771,0.448 4.344,5.969 4.635,5.969 4.635,5.969 4.854,4.823 true 4.167,5.885 4.406,6.094 0.24,0.208 10 false *1 2.156,6.052 2.396,6.24 0.24,0.188 10 true (A) 2.115,3.521 2.354,3.708 0.24,0.188 10 true (B) 3.781,0.5 4.021,0.688 0.24,0.188 10 true (D) 4.906,4.469 5.125,4.646 0.219,0.177 10 true (C) 3.135,3.344 3.375,3.531 0.24,0.188 10 true (C) 3.219,4.188 3.458,4.375 0.24,0.188 10 true (C) 0.24,3.688 0.479,3.875 0.24,0.188 12 false *A 0.219,4.406 0.458,4.594 0.24,0.188 12 false *B

*A	w/ Pre-collision System	*B	w/ ETC System
*1	No. 1 Roof Wire	-	-
	Fastening Tape		Positioning Tape

for Moon Roof:

i.

Apply double-sided butyl tape as shown in the illustration.

HINT:

Place the tape securely so that it is not misaligned or peeling.

0,0 0,0 false

Double-sided Butyl Tape

-

-

ii.

0,0 0,0 false

Install in this Direction

Turn the visor connectors approximately 90° clockwise to install them to the roof headlining.

iii.

Attach the No. 1 roof wire to the double-sided butyl tape as shown in the illustration and secure the No. 1 roof wire with pieces of fastening tape.

HINT:

·

Align the positioning tape of the No. 1 roof wire with the protrusion of the roof headlining and wrap fastening tape around them as shown in the part of the illustration labeled (A).

·

Secure the No. 1 roof wire so that the positioning tape does not protrude from the cutout of the roof headlining as shown in the part of the illustration labeled (B).

·

Adjust the extra length of the No. 1 roof wire in the part of the illustration labeled (C) and apply fastening tape.

·

Align the positioning tape of the No. 1 roof wire with the marking on the roof headlining and apply tape as shown in the part of the illustration labeled (D).

·

Apply the No. 1 roof wire so that it is securely attached and not twisted.

5,4.375 5.396,4.688 0.396,0.313 2.99,3.219 3.323,3.427 0.333,0.208 2.99,4.021 3.344,4.292 0.354,0.271 0.167,3.646 1.052,4.365 0.885,0.719 0.167,4.385 1.052,4.927 0.885,0.542 4.177,5.865 4.51,5.865 4.51,5.865 4.635,4.927 true 4,5.771 4.208,5.958 0.208,0.188 10 false *1 2.146,6.042 2.354,6.229 0.208,0.188 10 true (A) 2.156,3.521 2.375,3.719 0.219,0.198 10 true (B) 4.781,4.177 5,4.375 0.219,0.198 10 true (C) 3.844,0.563 4.063,0.76 0.219,0.198 10 true (D) 3.396,3.25 3.615,3.448 0.219,0.198 10 true (C) 3.385,4.094 3.604,4.292 0.219,0.198 10 true (C) 0.208,4.417 0.49,4.656 0.281,0.24 12 false *B 0.208,3.677 0.49,3.917 0.281,0.24 12 false *A

*A	w/ Pre-collision System	*B	w/ ETC System
*1	No. 1 Roof Wire	-	-
	Fastening Tape		Positioning Tape

for Panorama Moon Roof:

i.

Apply double-sided butyl tape as shown in the illustration.

HINT:

Place the tape securely so that it is not misaligned or peeling.

0,0 0,0 false

Double-sided Butyl Tape

-

-

ii.

0,0 0,0 false

Install in this Direction

Turn the visor connectors approximately 90° clockwise to install them to the roof headlining.

iii.

Attach the No. 1 roof wire to the double-sided butyl tape as shown in the illustration and secure the No. 1 roof wire with pieces of fastening tape.

HINT:

·

Align the positioning tape of the No. 1 roof wire with the protrusion of the roof headlining and wrap fastening tape around them as shown in the part of the illustration labeled (A).

·

Secure the No. 1 roof wire so that the positioning tape does not protrude from the cutout of the roof headlining as shown in the part of the illustration labeled (B).

·

Adjust the extra length of the No. 1 roof wire in the part of the illustration labeled (C) and apply fastening tape.

·

Align the positioning tape of the No. 1 roof wire with the marking on the roof headlining and apply tape as shown in the part of the illustration labeled (D).

·

Apply the No. 1 roof wire so that it is securely attached and not twisted.

5.323,4.385 5.719,4.719 0.396,0.333 5.885,4.375 6.281,4.708 0.396,0.333 2.854,2.729 3.219,2.979 0.365,0.25 2.813,4.073 3.177,4.323 0.365,0.25 0.188,4.115 1.021,4.74 0.833,0.625 0.177,2.958 1.01,3.583 0.833,0.625 4.156,5.802 4.552,5.802 4.552,5.802 4.802,4.635 true 3.99,5.708 4.219,5.938 0.229,0.229 10 false *1 0.219,3 0.458,3.219 0.24,0.219 12 false *A 0.229,4.156 0.573,4.365 0.344,0.208 12 false *B 2.042,5.854 2.271,6.052 0.229,0.198 10 false (A) 5.49,5.833 5.719,6.031 0.229,0.198 10 true (D) 2.042,3.313 2.271,3.51 0.229,0.198 10 false (B) 5.073,4.354 5.302,4.552 0.229,0.198 10 true (C) 4.167,0.323 4.396,0.521 0.229,0.198 10 true (D) 6.302,4.365 6.531,4.563 0.229,0.198 10 true (C) 3.25,2.76 3.479,2.958 0.229,0.198 10 true (C) 3.219,4.094 3.448,4.292 0.229,0.198 10 true (C)

*A	w/ Digital Inner Mirror	*B	w/ ETC System
*1	No. 1 Roof Wire	-	-
	Fastening Tape		Positioning Tape

1.375,1.552 0.802,1.146 0.802,1.146 1.375,0.667 true 0.51,1.063 0.75,1.25 0.24,0.188 10 false *a

*a

Marking

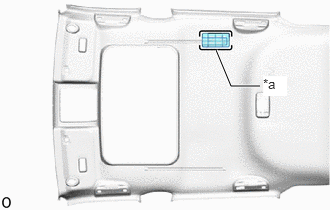

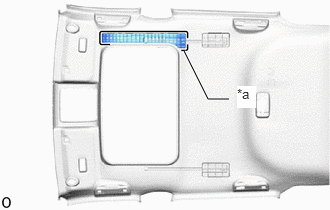

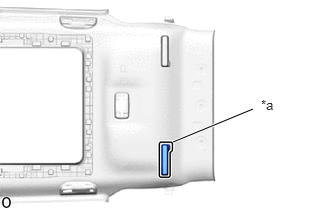

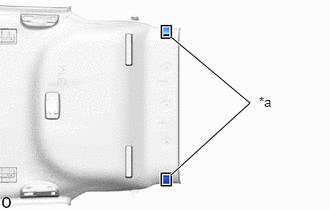

Align the 2 roof headlining front side pads with the markings on the roof headlining assembly and install them as shown in the illustration.

1.813,0.677 2.542,0.958 true 2.604,0.875 2.854,1.104 0.25,0.229 10 false *a

*a

Marking

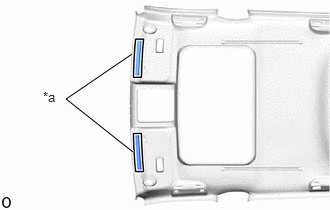

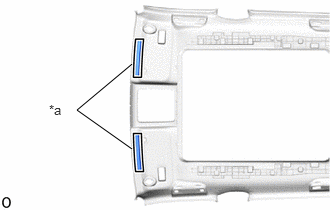

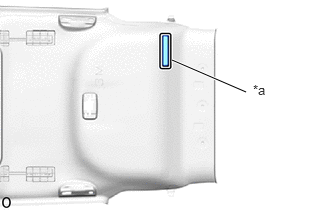

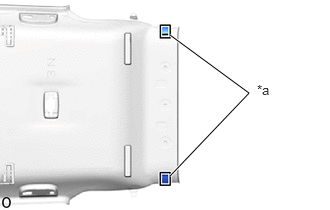

Align the markings on the roof headlining assembly with the roof headlining pad RH and install them using hot-melt glue as shown in the illustration.

1.802,1.479 2.635,1.135 true 2.719,1.01 2.969,1.229 0.25,0.219 10 false *a

*a

Marking

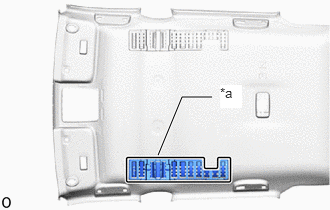

Align the markings on the roof headlining assembly with the roof headlining pad LH and install them using hot-melt glue as shown in the illustration.

1.781,1.813 2.729,1.094 2.729,1.094 1.792,0.396 true 2.813,1 3.031,1.208 0.219,0.208 10 false *a

*a

Marking

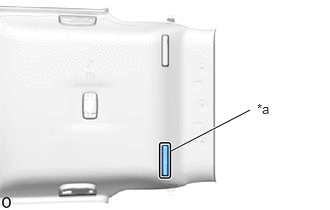

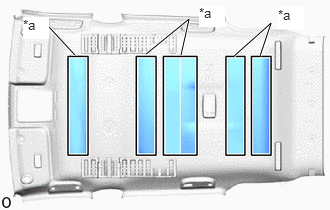

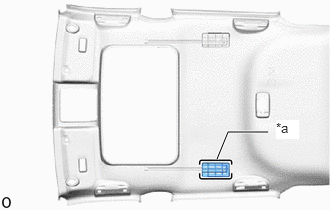

Align the 2 rear roof silencer pads with the markings on the roof headlining assembly and install them as shown in the illustration.

1.385,1.583 0.688,1.031 0.688,1.031 1.375,0.563 true 0.448,0.927 0.688,1.115 0.24,0.188 10 false *a

*a

Marking

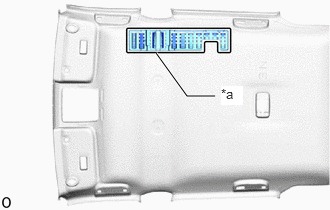

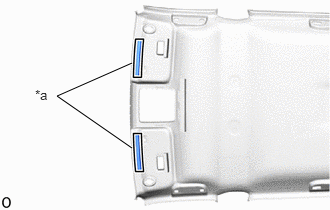

Align the 2 roof headlining front side pads with the markings on the roof headlining assembly and install them as shown in the illustration.

2.25,0.521 2.406,0.896 2.406,0.896 2.708,0.896 true 2.74,0.792 2.99,1 0.25,0.208 10 true *a

*a

Marking

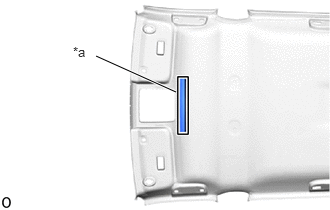

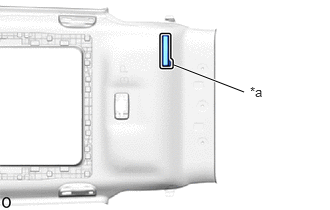

Align the markings on the roof headlining assembly with the No. 3 roof headlining support and install them using hot-melt glue as shown in the illustration.

2.26,1.656 2.375,1.375 2.375,1.375 2.792,1.375 true 2.875,1.25 3.115,1.448 0.24,0.198 10 true *a

*a

Marking

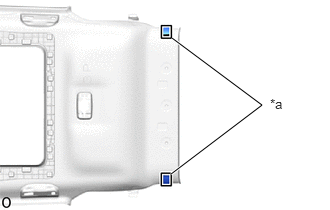

Align the markings on the roof headlining assembly with the No. 4 roof headlining support and install them using hot-melt glue as shown in the illustration.

1.917,0.531 2.167,1.031 2.167,1.031 2.385,1.031 true 2.469,0.896 2.667,1.125 0.198,0.229 10 true *a

*a

Marking

Align the markings on the roof headlining assembly with the No. 1 roof headlining support and install them using hot-melt glue as shown in the illustration.

1.917,1.646 2.125,1.188 2.125,1.188 2.385,1.188 true 2.438,1.073 2.677,1.25 0.24,0.177 10 true *a

*a

Marking

Align the markings on the roof headlining assembly with the No. 2 roof headlining support and install them using hot-melt glue as shown in the illustration.

1.792,0.625 2.563,0.958 true 2.635,0.854 2.906,1.073 0.271,0.219 10 false *a

*a

Marking

Align the markings on the roof headlining assembly with the roof headlining pad RH and install them using hot-melt glue as shown in the illustration.

1.781,1.552 2.469,1.031 true 2.531,0.927 2.771,1.135 0.24,0.208 10 false *a

*a

Marking

Align the markings on the roof headlining assembly with the roof headlining pad LH and install them using hot-melt glue as shown in the illustration.

1.781,1.823 2.604,1.073 2.604,1.073 1.781,0.385 true 2.698,0.979 2.906,1.188 0.208,0.208 10 false *a

*a

Marking

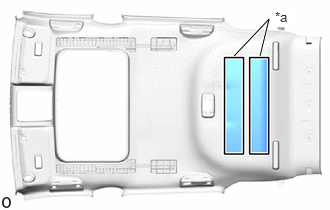

Align the 2 rear roof silencer pads with the markings on the roof headlining assembly and install them as shown in the illustration.

2.438,0.583 2.802,0.198 2.802,0.198 2.708,0.583 true 2.865,0.094 3.073,0.281 0.208,0.188 10 true *a

*a

Marking

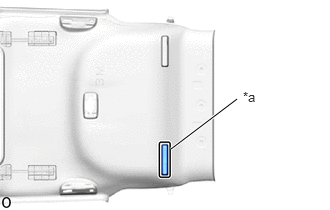

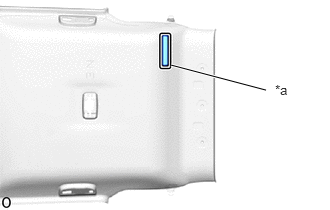

Align 2 new No. 1 roof silencer pads with the silencer marking on the roof headlining assembly and install the 2 No. 1 roof silencer pads using hot-melt glue as shown in the illustration.

1,0.583 1.833,0.958 true 0.76,0.458 1.01,0.656 0.25,0.198 10 false *a

*a

Marking

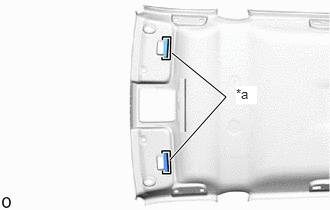

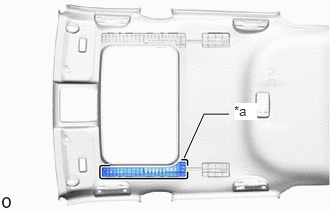

Align the No. 11 roof silencer pad with the markings on the roof headlining assembly and install them as shown in the illustration.

1.771,1.667 2.354,1.01 2.354,1.01 1.792,0.552 true 2.458,0.896 2.677,1.083 0.219,0.188 10 true *a

*a

Marking

Align the 2 No. 10 roof silencer pads with the markings on the roof headlining assembly and install them as shown in the illustration.

1.375,1.542 0.594,1 0.594,1 1.375,0.656 true 0.365,0.906 0.583,1.094 0.219,0.188 10 false *a

*a

Marking

Align the 2 roof headlining front side pads with the markings on the roof headlining assembly and install them as shown in the illustration.

1.781,0.677 2.771,0.938 true 2.865,0.854 3.115,1.104 0.25,0.25 10 false *a

*a

Marking

Align the markings on the roof headlining assembly with the roof headlining pad RH and install them using hot-melt glue as shown in the illustration.

1.781,1.573 2.604,1.146 true 2.677,1.052 2.917,1.25 0.24,0.198 10 false *a

*a

Marking

Align the markings on the roof headlining assembly with the roof headlining pad LH and install them using hot-melt glue as shown in the illustration.

1.625,0.552 1.948,1 1.948,1 2.24,1 true 2.302,0.896 2.531,1.094 0.229,0.198 10 true *a

*a

Marking

Align the markings on the roof headlining assembly with the No. 1 roof headlining support and install them using hot-melt glue as shown in the illustration.

1.646,1.615 1.896,1.01 1.896,1.01 2.208,1.01 true 2.292,0.885 2.521,1.125 0.229,0.24 10 true *a

*a

Marking

Align the markings on the roof headlining assembly with the No. 2 roof headlining support and install them using hot-melt glue as shown in the illustration.

1.771,1.833 2.594,0.969 2.594,0.969 1.771,0.365 true 2.677,0.854 2.865,1.063 0.188,0.208 10 false *a

*a

Marking

Align the 2 rear roof silencer pads with the markings on the roof headlining assembly and install them as shown in the illustration.

0.51,0.281 0.781,0.573 true 1.521,0.563 1.969,0.198 1.969,0.198 1.885,0.573 true 2.438,0.583 2.823,0.24 2.823,0.24 2.708,0.583 true 0.24,0.177 0.51,0.406 0.271,0.229 10 true *a 2.896,0.073 3.167,0.302 0.271,0.229 10 true *a 2.073,0.052 2.344,0.281 0.271,0.229 10 true *a

*a

Marking

Align 6 new No. 1 roof silencer pads with the silencer marking on the roof headlining assembly and install the 6 No. 1 roof silencer pads using hot-melt glue as shown in the illustration.
