INTERIOR PANELS / TRIM  ROOF HEADLINING  DISASSEMBLY

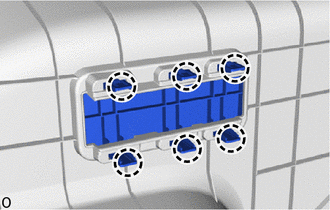

81340 1.REMOVE VANITY LIGHT ASSEMBLY

63341 2.REMOVE NO. 1 ROOF SILENCER PAD (for Normal Roof, SFTM Made)

a.

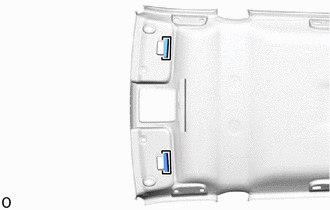

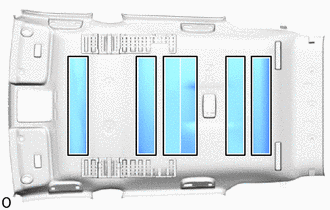

Remove the 6 No. 1 roof silencer pads.

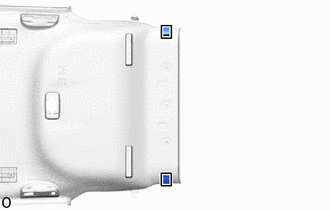

63343B 3.REMOVE REAR ROOF SILENCER PAD (for Normal Roof, SFTM Made)

a.

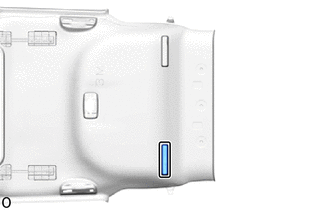

Remove the 2 rear roof silencer pads.

63362 4.REMOVE NO. 2 ROOF HEADLINING SUPPORT (for Normal Roof, SFTM Made)

a.

Remove the No. 2 roof headlining support.

63361 5.REMOVE NO. 1 ROOF HEADLINING SUPPORT (for Normal Roof, SFTM Made)

a.

Remove the No. 1 roof headlining support.

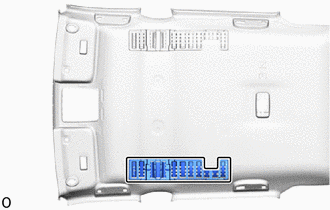

63356B 6.REMOVE ROOF HEADLINING PAD LH (for Normal Roof, SFTM Made)

a.

Remove the roof headlining pad LH.

63355C 7.REMOVE ROOF HEADLINING PAD RH (for Normal Roof, SFTM Made)

a.

Remove the roof headlining pad RH.

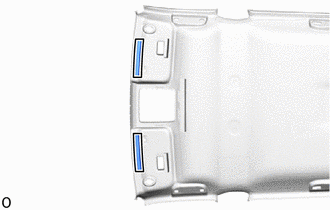

63354C 8.REMOVE ROOF HEADLINING FRONT SIDE PAD (for Normal Roof, SFTM Made)

a.

Remove the 2 roof headlining front side pads.

63351A 9.REMOVE NO. 10 ROOF SILENCER PAD (for Normal Roof, SFTM Made)

a.

Remove the 2 No. 10 roof silencer pads.

63352A 10.REMOVE NO. 11 ROOF SILENCER PAD (for Normal Roof, SFTM Made)

a.

Remove the No. 11 roof silencer pad.

63341 11.REMOVE NO. 1 ROOF SILENCER PAD (for Moon Roof, SFTM Made)

a.

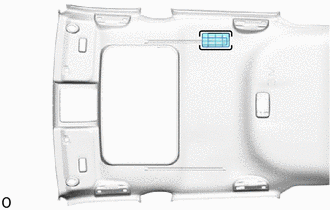

Remove the 2 No. 1 roof silencer pads.

63343B 12.REMOVE REAR ROOF SILENCER PAD (for Moon Roof, SFTM Made)

a.

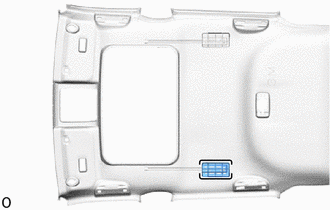

Remove the 2 rear roof silencer pads.

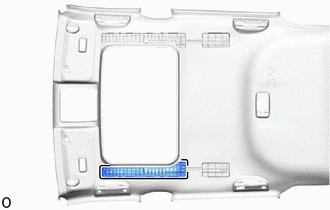

63356B 13.REMOVE ROOF HEADLINING PAD LH (for Moon Roof, SFTM Made)

a.

Remove the roof headlining pad LH.

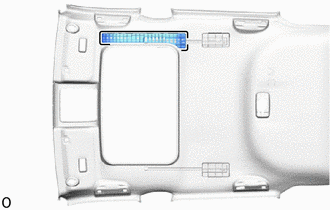

63355C 14.REMOVE ROOF HEADLINING PAD RH (for Moon Roof, SFTM Made)

a.

Remove the roof headlining pad RH.

63362 15.REMOVE NO. 2 ROOF HEADLINING SUPPORT (for Moon Roof, SFTM Made)

a.

Remove the No. 2 roof headlining support.

63361 16.REMOVE NO. 1 ROOF HEADLINING SUPPORT (for Moon Roof, SFTM Made)

a.

Remove the No. 1 roof headlining support.

63364 17.REMOVE NO. 4 ROOF HEADLINING SUPPORT (for Moon Roof, SFTM Made)

a.

Remove the No. 4 roof headlining support.

63363 18.REMOVE NO. 3 ROOF HEADLINING SUPPORT (for Moon Roof, SFTM Made)

a.

Remove the No. 3 roof headlining support.

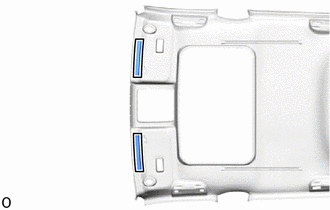

63354C 19.REMOVE ROOF HEADLINING FRONT SIDE PAD (for Moon Roof, SFTM Made)

a.

Remove the 2 roof headlining front side pads.

63343B 20.REMOVE REAR ROOF SILENCER PAD (for Panoramic Moon Roof, SFTM Made)

a.

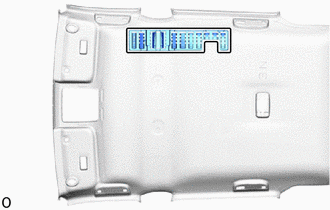

Remove the 2 rear roof silencer pads.

63356B 21.REMOVE ROOF HEADLINING PAD LH (for Panoramic Moon Roof, SFTM Made)

a.

Remove the roof headlining pad LH.

63355C 22.REMOVE ROOF HEADLINING PAD RH (for Panoramic Moon Roof, SFTM Made)

a.

Remove the roof headlining pad RH.

63354C 23.REMOVE ROOF HEADLINING FRONT SIDE PAD (for Panoramic Moon Roof, SFTM Made)

a.

Remove the 2 roof headlining front side pads.

82171 24.REMOVE NO. 1 ROOF WIRE

a.

for Normal Roof:

i.

0,0 0,0 false

Remove in this Direction

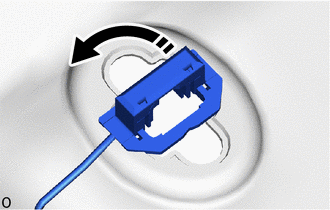

Turn the visor connectors approximately 90° counterclockwise and remove them from the roof headlining.

ii.

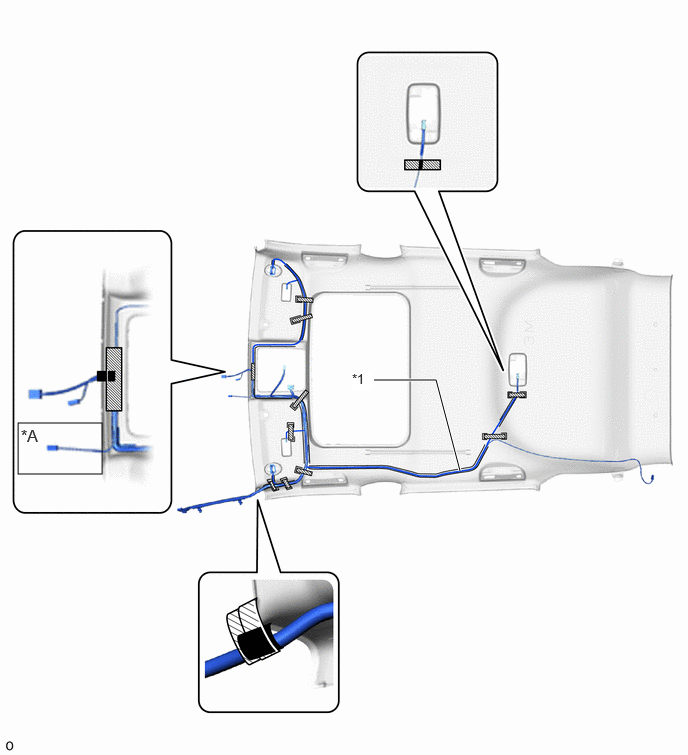

Remove each piece of tape and the No. 1 roof wire from the roof headlining.

0.208,3.531 0.958,4.229 0.75,0.698 0.208,4.313 0.958,4.896 0.75,0.583 3.813,3.896 4.188,3.896 4.188,3.896 4.5,4.833 true 3.594,3.781 3.792,3.99 0.198,0.208 10 true *1 0.24,3.573 0.49,3.823 0.25,0.25 12 false *A 0.219,4.354 0.469,4.604 0.25,0.25 12 false *B

*A	w/ Pre-collision System	*B	w/ ETC System
*1	No. 1 Roof Wire	-	-
	Tape	-	-

iii.

Remove the butyl tape remaining on the roof headlining.

b.

for Moon Roof:

i.

0,0 0,0 false

Remove in this Direction

Turn the visor connectors approximately 90° counterclockwise and remove them from the roof headlining.

ii.

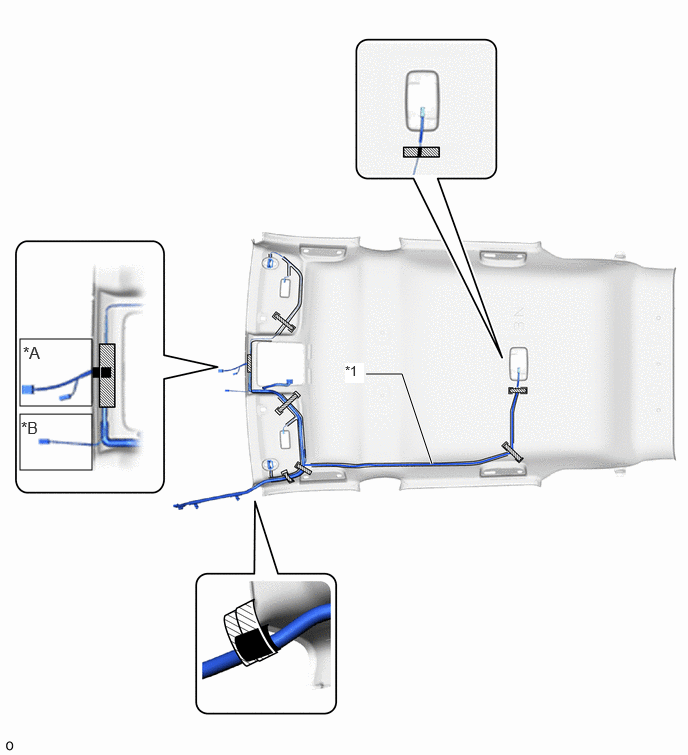

Remove each piece of tape and the No. 1 roof wire from the roof headlining.

0.188,4.406 1.063,4.938 0.875,0.531 3.896,3.958 4.542,3.958 4.542,3.958 4.792,4.906 true 3.667,3.865 3.885,4.063 0.219,0.198 10 true *1 0.219,4.438 0.448,4.667 0.229,0.229 12 false *A

*A	w/ ETC System	-	-
*1	No. 1 Roof Wire	-	-
	Tape	-	-

iii.

Remove the butyl tape remaining on the roof headlining.

c.

for Panoramic Moon Roof:

i.

0,0 0,0 false

Remove in this Direction

Turn the visor connectors approximately 90° counterclockwise and remove them from the roof headlining.

ii.

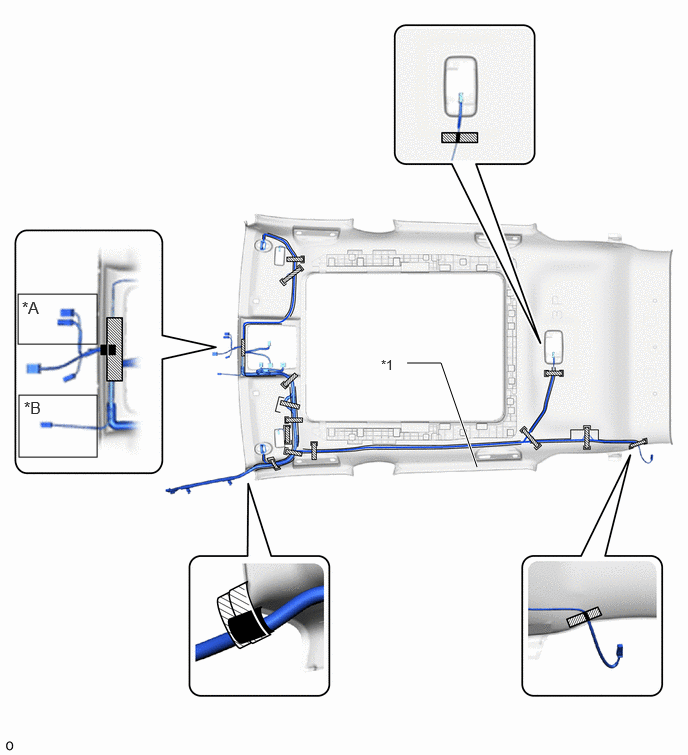

Remove each piece of tape and the No. 1 roof wire from the roof headlining.

0.188,3.063 1.01,3.583 0.823,0.521 0.198,4.115 1.01,4.76 0.813,0.646 4.24,3.781 4.594,3.781 4.594,3.781 4.969,4.865 true 0.25,4.146 0.521,4.354 0.271,0.208 12 false *B 3.969,3.719 4.198,3.948 0.229,0.229 10 false *1 0.229,3.104 0.469,3.323 0.24,0.219 12 false *A

*A	w/ Digital Inner Mirror	*B	w/ ETC System
*1	No. 1 Roof Wire	-	-
	Tape	-	-

iii.

Remove the butyl tape remaining on the roof headlining.

86101D 25.REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY

64714J 26.REMOVE DECK SIDE TRIM COVER RH

HINT:

Perform this procedure only when replacing the deck side trim cover RH.

a.

Detach the claw and remove the deck side trim cover RH.
