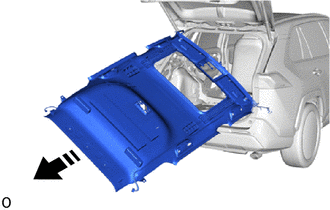

INTERIOR PANELS / TRIM ROOF HEADLINING REMOVAL

Hide Display 58410B 1.REMOVE DECK BOARD ASSEMBLY

a.

Remove the deck board assembly.

Hide Display 58416K 2.REMOVE REAR NO. 2 FLOOR BOARD

a.

Detach the clip and guide and remove the rear No. 2 floor board.

Hide Display 58417H 3.REMOVE REAR NO. 3 FLOOR BOARD

a.

Detach the clip and guide and remove the rear No. 3 floor board.

Hide Display 64779K 4.REMOVE SPARE WHEEL COVER STOPPER

a.

Remove the spare wheel cover stopper.

Hide Display 5.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

·

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0022,

·

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0022,

Hide Display 72693 6.REMOVE REAR SEAT CUSHION LOCK HOOK

·

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0001,

·

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0001,

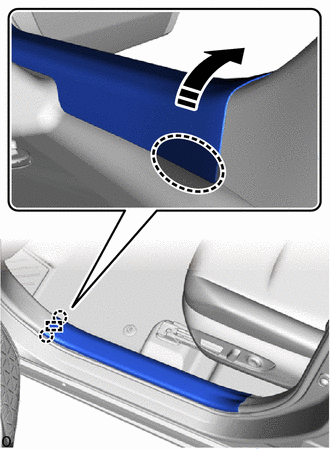

Hide Display 67918E 7.REMOVE REAR DOOR SCUFF PLATE LH

a.

for Gasoline Model:

i.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the removal direction to detach the claw and guide.

ii.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

Place both hands at the position shown in the illustration and lift in the direction indicated by the arrow to detach the clamp and claw and remove the rear door scuff plate LH.

b.

for HV Model:

i.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the removal direction to detach the claw and guide.

ii.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

Place both hands at the position shown in the illustration and lift in the direction indicated by the arrow to detach the clamp, claw and clip and remove the rear door scuff plate LH.

Hide Display 67917C 8.REMOVE REAR DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 58386 9.REMOVE REAR FLOOR FINISH PLATE

a.

Detach the claw and clip and remove the rear floor finish plate.

Hide Display 10.REMOVE REAR SEATBACK ASSEMBLY LH

·

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0012,

·

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0012,

Hide Display 73350C 11.REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

·

for SFTM Made:

Click hereVehicle Interior>SEAT BELT>REAR CENTER SEAT OUTER BELT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083103,_0419079,RM100000001MO7O_01_0085,

·

for GTMC Made:

Click hereVehicle Interior>SEAT BELT>REAR CENTER SEAT OUTER BELT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083103,_0419080,RM100000001MO7S_01_0085,

Hide Display 12.REMOVE REAR SEATBACK ASSEMBLY RH

·

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0011,

·

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0011,

Hide Display 58466J 13.REMOVE NO. 2 BATTERY SERVICE COVER BOARD (for HV Model)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY BLOWER>REMOVAL202004,999999,_51,_083048,_0400707,RM100000001MYUR_02_0132,

Hide Display 58467H 14.REMOVE NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY BLOWER>REMOVAL202004,999999,_51,_083048,_0400707,RM100000001MYUR_02_0130,

Hide Display 58464D 15.REMOVE BATTERY SERVICE COVER BOARD (for HV Model)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY BLOWER>REMOVAL202004,999999,_51,_083048,_0400707,RM100000001MYUR_02_0133,

Hide Display 71304C 16.REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH

·

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0032,

·

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0032,

Hide Display 71303C 17.REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 73706 18.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>REMOVAL202004,999999,_58,_083103,_0401777,RM100000001MO7X_01_0002,

Hide Display 73705 19.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 58577E 20.REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

a.

Remove the 2 screws.

b.

Detach the clip and claw and remove the rear No. 1 floor mat support side plate.

Hide Display 62332C 21.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201910,999999,_59,_083093,_0403690,RM100000001JUGH_02_0002,

Hide Display 62331C 22.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure described for the LH side.

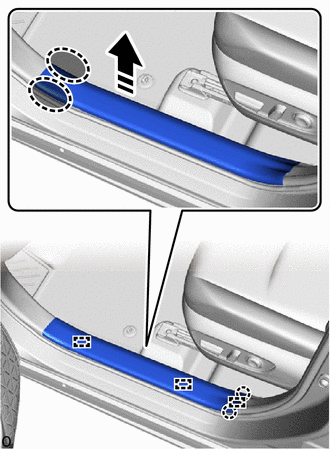

Hide Display 67914B 23.REMOVE FRONT DOOR SCUFF PLATE LH

a.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the removal direction to detach the claw and guide.

b.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

Place both hands at the position shown in the illustration and lift in the direction indicated by the arrow to detach the clamp and claw and remove the front door scuff plate LH.

Hide Display 67913B 24.REMOVE FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 62112 25.REMOVE COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0028,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0028,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0028,

Hide Display 62111C 26.REMOVE COWL SIDE TRIM BOARD RH

HINT:: Use the same procedure described for the LH side.

Hide Display 62312B 27.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201910,999999,_59,_083093,_0403688,RM100000001JUGA_02_0003,

Hide Display 62311B 28.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure described for the LH side.

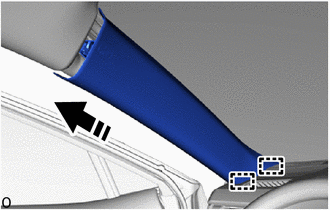

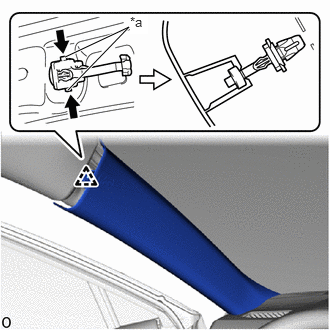

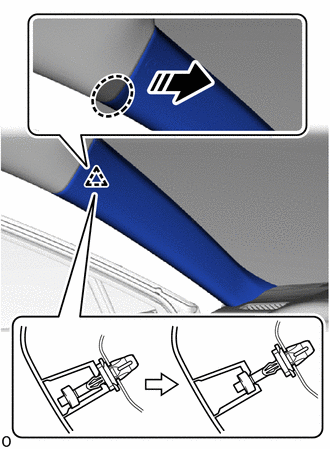

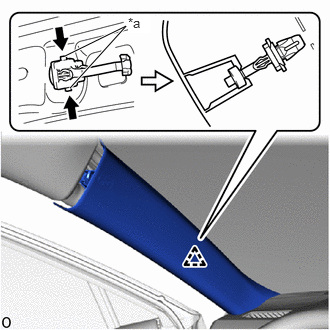

Hide Display 62212 29.REMOVE FRONT PILLAR GARNISH LH

a.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the front pillar garnish clip.

b.

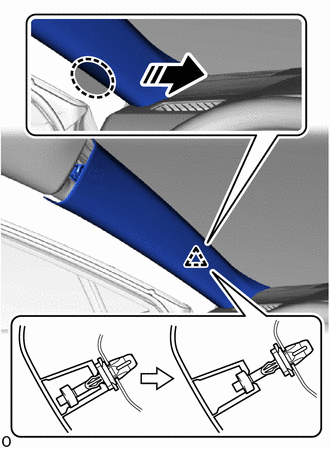

0.708,0.938 1.344,0.281 1.344,0.281 0.677,0.594 true 1.354,0.146 1.542,0.354 0.188,0.208 10 true *a

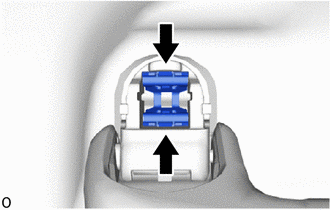

*a	Release Lever
	Push

Push in the release lever with your finger and remove the front pillar garnish clip from the vehicle.

c.

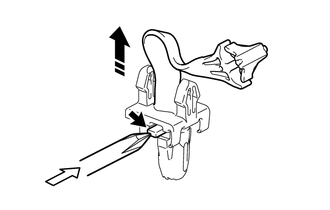

When the front pillar garnish clip cannot be detached by pressing the knobs with the fingers:

i.

0,0 0,0 false

	Direction (A)
	Push

Lift up the front pillar garnish clip in the direction (A) while pressing the portion indicated by the arrow in the illustration with your fingers.

ii.

0,0 0,0 false

	Direction (B)
	Release Lever
	Push

Push in the portion indicated by the arrow in the illustration with the screwdriver end while pulling the front pillar garnish clip with your fingers in the direction (B) to detach the front pillar garnish clip.

d.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the front pillar garnish clip.

e.

0.729,0.917 1.313,0.271 1.313,0.271 0.677,0.583 true 1.333,0.156 1.563,0.344 0.229,0.188 10 true *a

*a	Release Lever
	Push

Push in the release lever with your finger and remove the front pillar garnish clip from the vehicle.

f.

When the front pillar garnish clip cannot be detached by pressing the knobs with the fingers:

i.

0,0 0,0 false

	Direction (A)
	Push

Lift up the front pillar garnish clip in the direction (A) while pressing the portion indicated by the arrow in the illustration with your fingers.

ii.

0,0 0,0 false

	Direction (B)
	Release Lever
	Push

Push in the portion indicated by the arrow in the illustration with the screwdriver end while pulling the front pillar garnish clip with your fingers in the direction (B) to detach the front pillar garnish clip.

g.

0,0 0,0 false

Remove in this Direction

Pull in the direction of the arrow shown in the illustration to detach the guide and remove the front pillar garnish LH.

h.

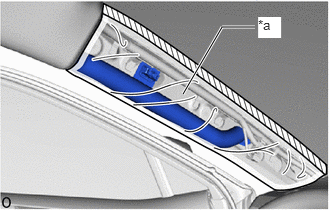

1.906,0.979 2.313,0.281 2.313,0.281 2.656,0.281 true 2.688,0.177 2.927,0.396 0.24,0.219 10 true *a

*a	Protective Cover
	Adhesive Tape

Protect curtain shield airbag assembly:

i.

Cover the airbag with a cloth or piece of nylon and secure both ends of the cover with adhesive tape as shown in the illustration.

NOTICE:: Cover the curtain shield airbag assembly with a protective cover as soon as the front pillar garnish assembly LH is removed.

Hide Display 62211 30.REMOVE FRONT PILLAR GARNISH RH

HINT:: Use the same procedure described for the LH side.

Hide Display 73233 31.REMOVE OUTER LAP BELT ANCHOR COVER

HINT:: Use the same procedure for both outer lap belt anchor covers.

a.

Detach the claw and guide and remove the outer lap belt anchor cover.

Hide Display 73220 32.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH

a.

Remove the bolt and remove the front seat outer belt assembly LH.

Hide Display 73210 33.REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 62414A 34.REMOVE LOWER CENTER PILLAR GARNISH LH

a.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

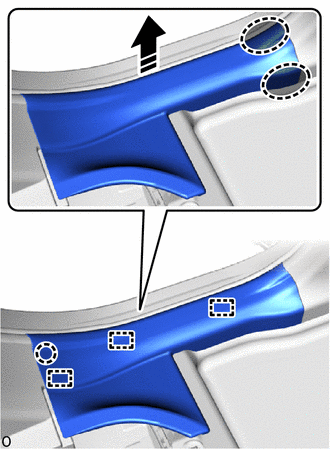

Pull both sides of the lower center pillar garnish LH outward to detach the claw as shown in the illustration.

b.

Detach the clip and remove the lower center pillar garnish LH.

Hide Display 62413A 35.REMOVE LOWER CENTER PILLAR GARNISH RH

HINT:: Use the same procedure described for the LH side.

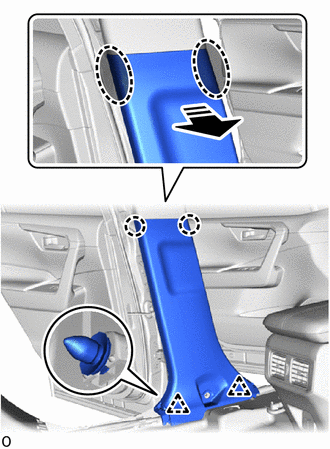

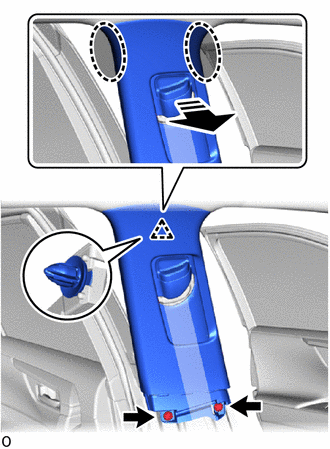

Hide Display 62412 36.REMOVE CENTER PILLAR GARNISH LH

a.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

Remove the 2 clips.

b.

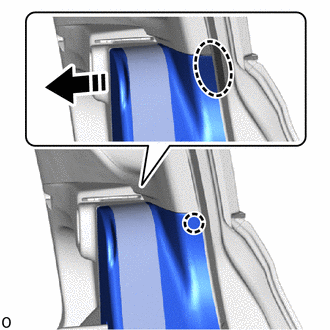

Place both hands at the position shown in the illustration, detach the clip and remove the center pillar garnish LH.

c.

When reusing the center pillar garnish LH:

i.

Remove the clip.

Hide Display 62411 37.REMOVE CENTER PILLAR GARNISH RH

HINT:: Use the same procedure described for the LH side.

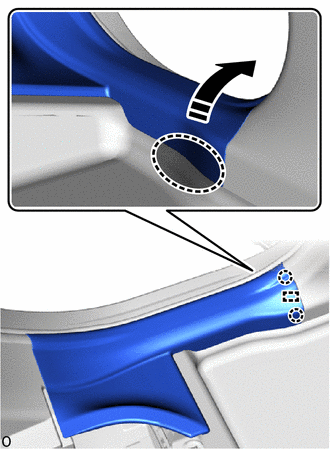

Hide Display 62552F 38.REMOVE REAR SEAT SIDE GARNISH LH

a.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration, and detach the claw.

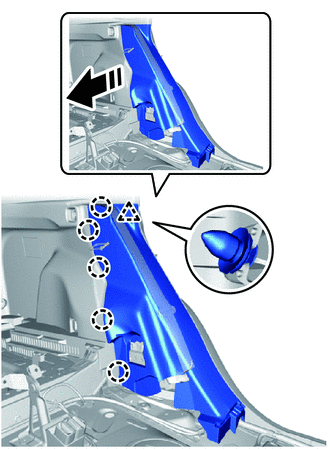

b.

0,0 0,0 false

Remove in this Direction

Detach the clip and claw and remove the rear seat side garnish LH as shown in the illustration.

Hide Display 62551F 39.REMOVE REAR SEAT SIDE GARNISH RH

HINT:: Use the same procedure described for the LH side.

Hide Display 73708A 40.REMOVE TETHER ANCHOR BRACKET SET

HINT:: Use the same procedure for the opposite side.

a.

0,0 0,0 false

Turn Up in this Direction

Detach the claw and turn the cover up as shown in the illustration.

b.

Loosen the bolt and remove the tether anchor bracket set.

Hide Display 58460D 41.REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

HINT:: Use the same procedure for the opposite side.

a.

Remove the bolt.

b.

Detach the guide and remove the luggage hold belt striker assembly.

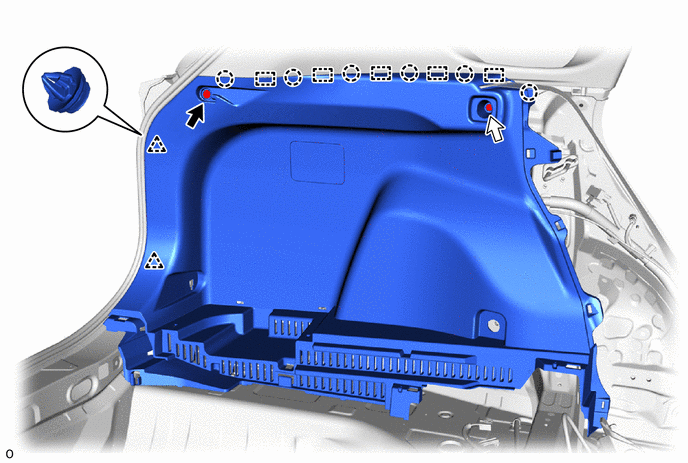

Hide Display 64740E 42.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

a.

Remove the clip.

b.

except "TORX" Screw:

i.

Remove the screw.

c.

for "TORX" Screw:

i.

Using a T30 "TORX" socket wrench, remove the "TORX" screw.

d.

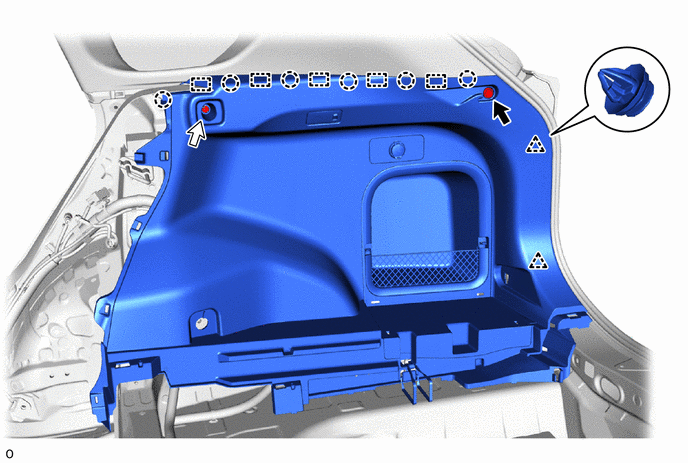

Detach the clip, claw and guide and remove the deck trim side panel assembly LH.

0,0 0,0 false

Clip

Screw or "TORX" Screw

Hide Display 64730J 43.REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

a.

Remove the clip.

b.

except "TORX" Screw:

i.

Remove the screw.

c.

for "TORX" Screw:

i.

Using a T30 "TORX" socket wrench, remove the "TORX" screw.

d.

Detach the clip, claw and guide and remove the deck trim side panel assembly RH.

0,0 0,0 false

Clip

Screw or "TORX" Screw

e.

Disconnect each connector.

Hide Display 62480A 44.REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

a.

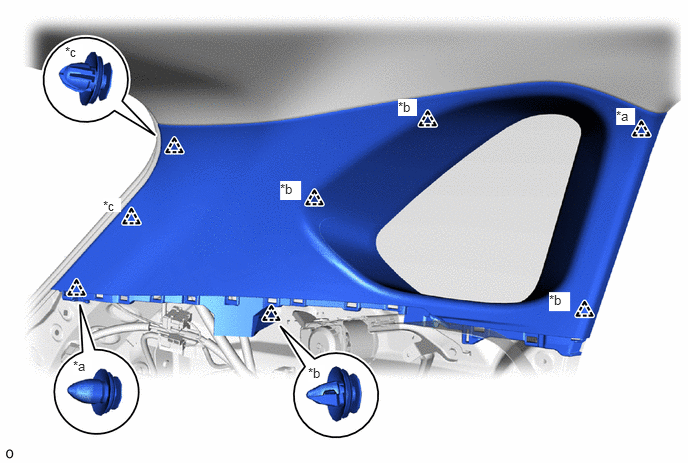

Detach the clip and remove the inner roof side garnish assembly LH.

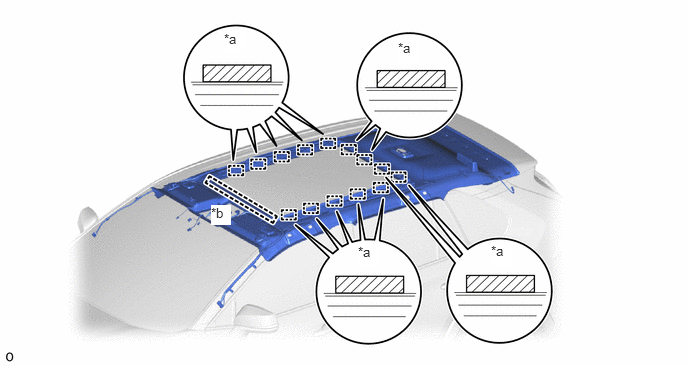

0.76,3.729 0.958,3.906 0.198,0.177 10 true *a 2.917,1.885 3.135,2.083 0.219,0.198 10 true *b 0.677,0.458 0.865,0.604 0.188,0.146 10 true *c 6.417,1.125 6.615,1.302 0.198,0.177 10 true *a 4.146,1.031 4.344,1.208 0.198,0.177 10 true *b 1.073,2.063 1.26,2.208 0.188,0.146 10 true *c 5.719,3.042 5.938,3.24 0.219,0.198 10 true *b 3.208,3.802 3.385,3.979 0.177,0.177 10 true *b

*a	Clip A	*b	Clip B
*c	Clip C	-	-

b.

When reusing the inner roof side garnish assembly LH:

i.

Remove the 8 clips.

0.615,0.26 0.813,0.458 0.198,0.198 10 false *a 5.302,2.906 5.531,3.094 0.229,0.188 10 false *b 5.427,0.26 5.646,0.448 0.219,0.188 10 false *c 6.26,2.427 6.458,2.625 0.198,0.198 10 true *a 5.792,2.01 6.01,2.198 0.219,0.188 10 true *c 1.948,2.25 2.177,2.438 0.229,0.188 10 true *b 3.958,1.344 4.188,1.531 0.229,0.188 10 true *b 3.396,0.625 3.625,0.813 0.229,0.188 10 true *b

*a	Clip A	*b	Clip B
*c	Clip C	-	-

Hide Display 62470A 45.REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

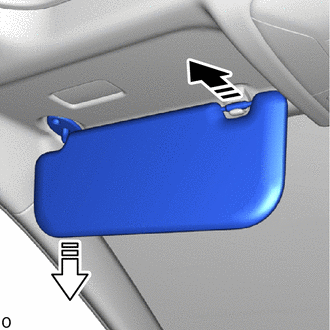

Hide Display 74320 46.REMOVE VISOR ASSEMBLY LH

a.

Remove the 2 screws.

b.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Pull in the direction of the arrow shown in the illustration (1) to detach the visor assembly LH from the visor holder LH.

c.

Pull in the direction of the arrow shown in the illustration (2) and remove the visor assembly LH.

NOTICE:: Do not twist or remove the visor assembly in any direction other than downwards as the connector may become damaged.

Hide Display 74310 47.REMOVE VISOR ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

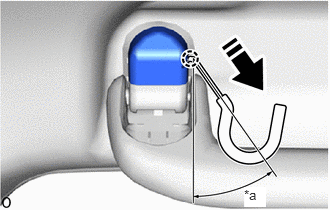

Hide Display 74348 48.REMOVE VISOR HOLDER

HINT:: Use the same procedure for the opposite side.

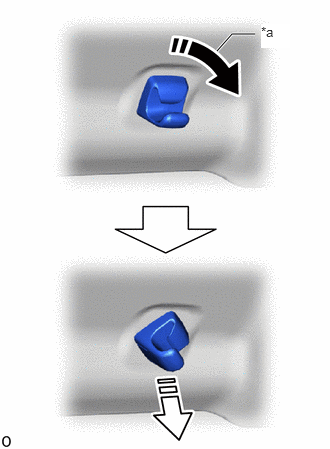

a.

2.26,0.531 2.417,0.354 2.417,0.354 2.656,0.354 true 2.719,0.25 3.021,0.5 0.302,0.25 10 true *a

*a	45°
	Remove in this Direction (1)
	Remove in this Direction (2)

Turn the visor holder end approximately 45° in the direction (1) indicated by the arrow shown in the illustration, and pull it out in the direction (2) indicated by the arrow.

b.

Detach the claw and remove the visor holder base.

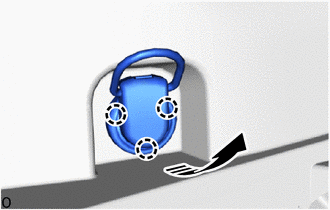

Hide Display 74610A 49.REMOVE ASSIST GRIP SUB-ASSEMBLY

HINT:: Use the same procedure for all assist grip sub-assemblies.

a.

1.938,0.604 2.448,0.604 true 2.594,2.906 2.885,2.906 true 2.51,0.5 2.74,0.719 0.229,0.219 10 true *a 2.906,2.813 3.25,3 0.344,0.188 10 true SST

*a

Cutout

Insert SST into the cutout of the assist grip cover LH as shown in the illustration.

SST: 09813-00010

NOTICE:: To prevent the assist grip sub-assembly from being damaged, make sure to insert SST straight into the cutout.

b.

2.542,1.948 2.771,2.156 0.229,0.208 10 true *a

*a	30 to 45°
	Remove in this Direction

Pull SST as shown in the illustration to detach the claw.

NOTICE:: To prevent the assist grip sub-assembly from being damaged, make sure to only pull SST as shown in the illustration.

HINT:: Use the same procedure for the claw on the other side of the assist grip cover LH.

c.

Remove the assist grip cover LH.

HINT:: Use the same procedure for the LH side and RH side.

d.

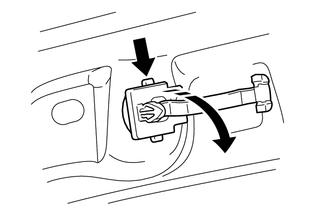

Pinch the clip with needle-nose pliers.

HINT:: Use the same procedure for both clips.

e.

0,0 0,0 false

Remove in this Direction

Hold the handle and pull in the direction indicated by the arrow shown in the illustration to remove the assist grip sub-assembly.

f.

Using needle-nose pliers, remove the clip.

Hide Display 74630E 50.REMOVE REAR ASSIST GRIP ASSEMBLY LH

HINT:: Use the same procedure as for the assist grip sub-assembly.

Hide Display 74620C 51.REMOVE REAR ASSIST GRIP ASSEMBLY RH

HINT:: Use the same procedure as for the assist grip sub-assembly.

Hide Display 52.REMOVE MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL201910,999999,_58,_083095,_0400587,RM100000001J8MD_01_0001,

Hide Display 81240 53.REMOVE NO. 1 ROOM LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>ROOM LIGHT>REMOVAL202304,999999,_58,_083095,_0400589,RM1000000029RUC_01_0003,

Hide Display 86466E 54.REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)

Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>REMOVAL202304,202405,_51,_083055,_0401005,RM1000000029L6J_02_0001,202405,999999,_51,_083055,_0401005,RM100000002LEFV_02_0001,

Hide Display 86466D 55.REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>REMOVAL202304,202405,_51,_083055,_0401005,RM1000000029L6J_02_0002,202405,999999,_51,_083055,_0401005,RM100000002LEFV_02_0002,

Hide Display 86981 56.REMOVE TOLL COLLECTION COVER (w/ ETC System)

Click hereAudio / Visual / Telematics>CELLULAR COMMUNICATION>TOLL COLLECTION ECU (Production date from 2021/08)>REMOVAL202304,999999,_56,_105208,_0482465,RM1000000029SY2_01_0004,

Hide Display 63318C 57.REMOVE SUN ROOF OPENING TRIM MOULDING (for Moon Roof)

a.

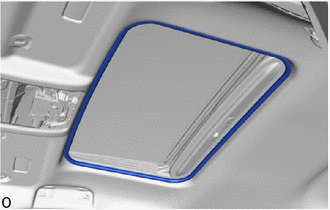

Remove the sun roof opening trim moulding.

Hide Display 58.REMOVE ROOF HEADLINING ASSEMBLY (for Normal Roof)

a.

for Windshield Glass Side:

i.

Disconnect each connector.

b.

w/ ETC System:

i.

Disconnect the connector.

c.

for Front Pillar LH Side:

i.

Remove the protective cover installed to the front pillar LH.

ii.

Disconnect the 2 connectors.

iii.

Using a clip remover, detach the wire harness clamp.

iv.

Install the protective cover to the front pillar LH.

d.

for Front Pillar RH Side:

i.

Remove the protective cover installed to the front pillar RH.

ii.

Disconnect the connector.

iii.

Using a clip remover, detach the wire harness clamp.

iv.

Install the protective cover to the front pillar RH.

e.

for Rear Pillar RH Side:

i.

Disconnect the connector.

f.

Remove the 5 clips.

g.

0,0 0,0 false

Remove in this Direction

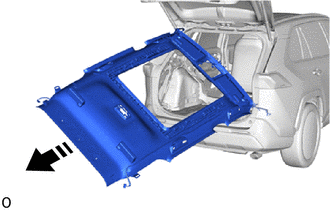

Turn the roof headlining diagonally and bend slightly to remove it from the back door.

NOTICE:: ·

Make sure that wrinkles do not form in the roof headlining assembly during removal.

·

Make sure that the roof headlining assembly does not get caught on anything as it may become bent or damaged.

·

Do not damage the roof headlining assembly or vehicle interior.

·

2 or more people are required when carrying the roof headlining assembly out of the vehicle, as it may become deformed.

Hide Display 59.REMOVE ROOF HEADLINING ASSEMBLY (for Moon Roof)

a.

for Windshield Glass Side:

i.

Disconnect the 2 connectors.

b.

w/ ETC System:

i.

Disconnect the connector.

c.

for Front Pillar LH Side:

i.

Remove the protective cover installed to the front pillar LH.

ii.

Disconnect the 2 connectors.

iii.

Using a clip remover, detach the wire harness clamp.

iv.

Install the protective cover to the front pillar LH.

d.

for Front Pillar RH Side:

i.

Remove the protective cover installed to the front pillar RH.

ii.

Disconnect the connector.

iii.

Using a clip remover, detach the wire harness clamp.

iv.

Install the protective cover to the front pillar RH.

e.

for Rear Pillar RH Side:

i.

Disconnect the connector.

f.

Disconnect the connector.

g.

Remove the 3 clips.

h.

0,0 0,0 false

Remove in this Direction

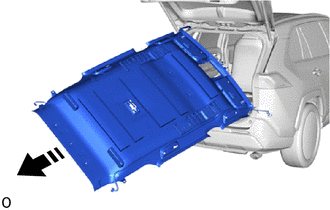

Turn the roof headlining assembly diagonally and bend slightly to remove it from the back door.

NOTICE:: ·

Make sure that wrinkles do not form in the roof headlining assembly during removal.

·

Make sure that the roof headlining assembly does not get caught on anything as it may become bent or damaged.

·

Do not damage the roof headlining assembly or vehicle interior.

·

2 or more people are required when carrying the roof headlining assembly out of the vehicle, as it may become deformed.

Hide Display 60.REMOVE ROOF HEADLINING ASSEMBLY (for Panoramic Moon Roof)

a.

for Windshield Glass Side:

i.

Disconnect each connector.

b.

w/ ETC System:

i.

Disconnect the connector.

c.

for Front Pillar LH Side:

i.

Remove the protective cover installed to the front pillar LH.

ii.

Disconnect the 2 connectors.

iii.

Using a clip remover, detach the wire harness clamp.

iv.

Install the protective cover to the front pillar LH.

d.

for Front Pillar RH Side:

i.

Remove the protective cover installed to the front pillar RH.

ii.

Disconnect the connector.

iii.

Using a clip remover, detach the wire harness clamp.

iv.

Install the protective cover to the front pillar RH.

e.

for Rear Pillar LH Side:

i.

Disconnect the connector.

f.

for Rear Pillar RH Side:

i.

Disconnect the connector.

g.

Disconnect the 2 connectors.

h.

Remove the 3 clips.

i.

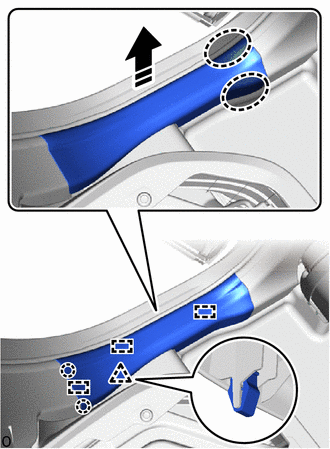

Detach the fastener and guide.

2.333,0.323 2.563,0.563 0.229,0.24 10 true *a 2.198,2.135 2.406,2.344 0.208,0.208 10 true *b 4.146,0.417 4.375,0.656 0.229,0.24 10 true *a 5.115,2.531 5.344,2.771 0.229,0.24 10 true *a 3.729,2.542 3.958,2.781 0.229,0.24 10 true *a

*a

Fastener

*b

Guide

j.

0,0 0,0 false

Remove in this Direction

Turn the roof headlining assembly diagonally and bend slightly to remove it from the back door.

NOTICE:: ·

Make sure that wrinkles do not form in the roof headlining assembly during removal.

·

Make sure that the roof headlining assembly does not get caught on anything as it may become bent or damaged.

·

Do not damage the roof headlining assembly or vehicle interior.

·

2 or more people are required when carrying the roof headlining assembly out of the vehicle, as it may become deformed.

Hide Display 66425B 61.REMOVE REAR NO. 2 SIDE RAIL SPACER LH

HINT:: Perform this procedure only when replacing the rear No. 2 side rail spacer LH.

a.

Detach the claw and remove the rear No. 2 side rail spacer LH.

Hide Display 66415B 62.REMOVE REAR NO. 2 SIDE RAIL SPACER RH

HINT:: ·

Perform this procedure only when replacing the rear No. 2 side rail spacer RH.

·

Use the same procedure described for the LH side.

Hide Display 64230A 63.REMOVE ROOM PARTITION NET ASSEMBLY

HINT:: Perform this procedure only when replacing the room partition net assembly.

a.

0.031,0.042 0.333,0.333 0.302,0.292 12 false *A 0.042,2.479 0.292,2.708 0.25,0.229 12 false *B

*A	for HV Model
*B	for Gasoline Model

Detach the claw and guide and remove the room partition net assembly.

Hide Display 65351A 64.REMOVE BATTERY HOLE COVER (for HV Model)

HINT:: Perform this procedure only when replacing the battery hole cover.

a.

Detach the claw and remove the battery hole cover.

INTERIOR PANELS / TRIM ROOF HEADLINING REMOVAL

PROCEDURE
