EXTERIOR PANELS / TRIM WHEEL OPENING MOULDING(for Rear) DISASSEMBLY
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
75697

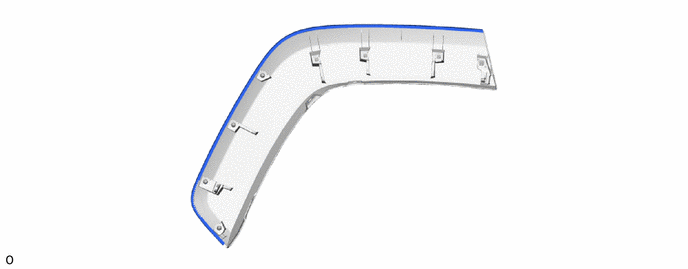

1.REMOVE NO. 2 BODY OUTSIDE MOULDING PAD (except Off Road Package)
- HINT:
-
When removing the No. 2 body outside moulding pad, if it is difficult to remove, heat the adhesive of the No. 2 body outside moulding pad using a heat light.
- Standard:
Item Temperature No. 2 Body Outside Moulding Pad 40 to 60°C (104 to 140°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
- NOTICE:
-
Do not heat No. 2 body outside moulding pad excessively.
Remove the No. 2 body outside moulding pad.
75697

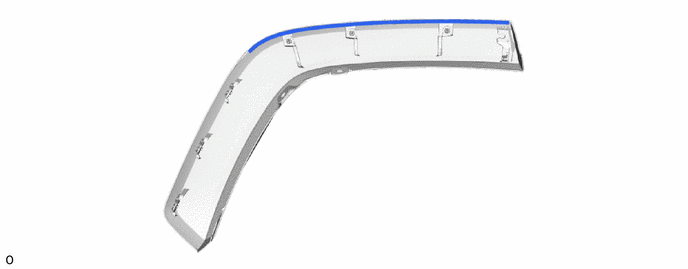

2.REMOVE NO. 2 BODY OUTSIDE MOULDING PAD (for Off Road Package)
- HINT:
-
When removing the No. 2 body outside moulding pad, if it is difficult to remove, heat the adhesive of the No. 2 body outside moulding pad and quarter outside moulding sub-assembly LH using a heat light.
- Standard:
Item Temperature Quarter Outside Moulding Sub-assembly LH 40 to 60°C (104 to 140°F) No. 2 Body Outside Moulding Pad 40 to 60°C (104 to 140°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
- NOTICE:
-
Do not heat the quarter outside moulding sub-assembly LH and No. 2 body outside moulding pad excessively.
Remove the No. 2 body outside moulding pad.
