EXTERIOR PANELS / TRIM  REAR BUMPER(for Type A)  DISASSEMBLY

891B1 1.REMOVE KICK DOOR CONTROL BRACKET (w/ Hands Free Power Back Door)

89342 2.REMOVE REAR CORNER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

89342A 3.REMOVE REAR CENTER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

89348R 4.REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

89348S 5.REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

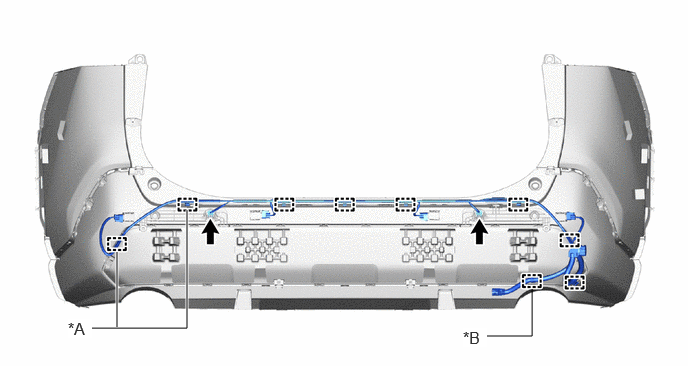

82182 6.REMOVE NO. 2 LUGGAGE ROOM WIRE

a.

Disconnect the 2 connectors.

b.

Detach the clamp and remove the No. 2 luggage room wire.

5.073,3.5 5.542,3.5 5.542,3.5 5.542,3.01 false 0.948,3.417 1.948,3.417 1.948,3.417 1.948,2.188 true 1.219,3.406 1.219,2.625 true 0.708,3.323 0.958,3.521 0.25,0.198 12 true *A 4.823,3.417 5.073,3.615 0.25,0.198 12 true *B

*A

w/ TOYOTA Parking Assist-sensor System

*B

w/ Hands Free Power Back Door

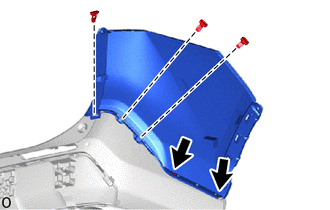

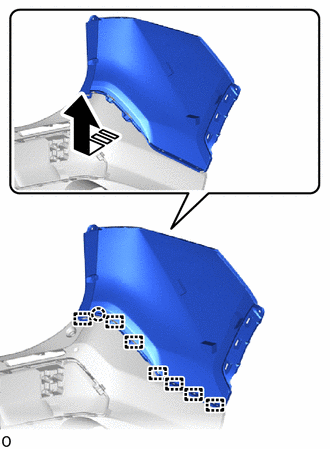

52162A 7.REMOVE REAR BUMPER PIECE LH

a.

Remove the 2 screws.

b.

Remove the 3 outside moulding retainers.

c.

0,0 0,0 false

Remove in this Direction

Detach the guide and claw to remove the rear bumper piece LH.

52161A 8.REMOVE REAR BUMPER PIECE RH

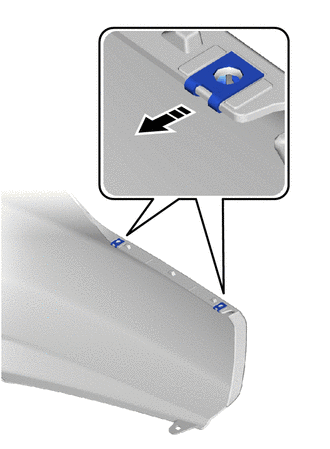

9.REMOVE SPRING NUT

a.

0,0 0,0 false

Remove in this Direction

Remove the 2 spring nuts.

HINT:

Use the same procedure on the other side.

81490C 10.REMOVE REAR FOG LIGHT ASSEMBLY LH

81480A 11.REMOVE REAR FOG LIGHT ASSEMBLY RH

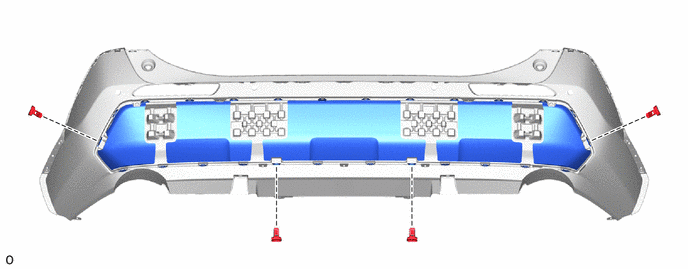

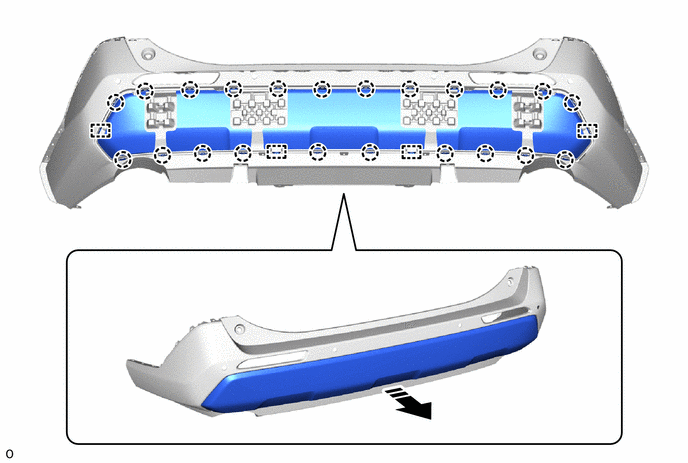

52453 12.REMOVE REAR BUMPER CENTER GUARD

a.

Remove the 4 outside moulding retainers.

b.

Detach the guide and claw to remove the rear bumper center guard.

0,0 0,0 false

Remove in this Direction

-

-

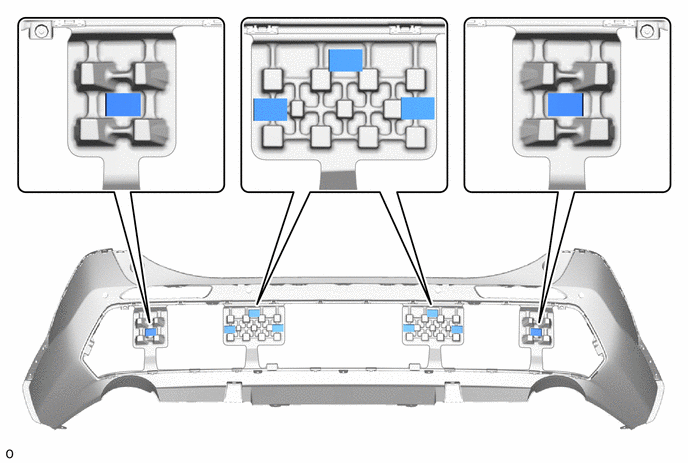

52461F 13.REMOVE REAR BUMPER CENTER PAD

HINT:

When removing the rear bumper center pad, if the double-sided tape is difficult to remove, heat the adhesive of the rear bumper center pad using a heat light.

Standard:

Item	Temperature
Rear Bumper Center Pad	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:

Do not heat the rear bumper center pad excessively.

a.

Remove the 8 rear bumper center pads.

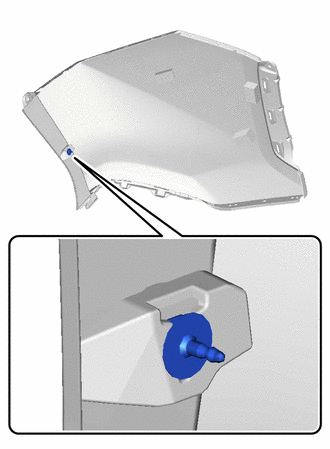

76829A 14.REMOVE BACK DOOR GARNISH RETAINER

a.

Remove the back door garnish retainer.

HINT:

Use the same procedure on the other side.

15.REMOVE REAR COMBINATION LIGHT ASSEMBLY LH

16.REMOVE REAR COMBINATION LIGHT ASSEMBLY RH

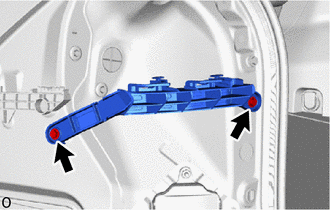

52563A 17.REMOVE REAR BUMPER UPPER RETAINER LH

a.

Remove the 2 screws and rear bumper upper retainer LH.

52562B 18.REMOVE REAR BUMPER UPPER RETAINER RH

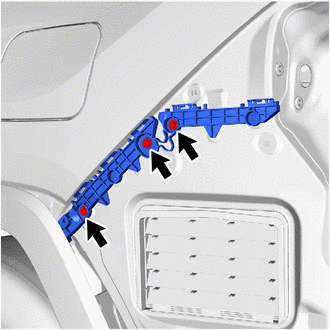

52156A 19.REMOVE REAR BUMPER SIDE SUPPORT LH

a.

Remove the 3 screws.

b.

0,0 0,0 false

Remove in this Direction

Detach the guide and claw to remove the rear bumper side support LH as shown in the illustration.

52155A 20.REMOVE REAR BUMPER SIDE SUPPORT RH

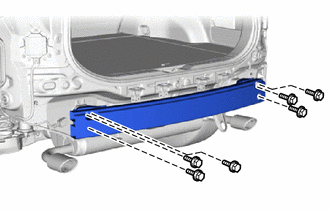

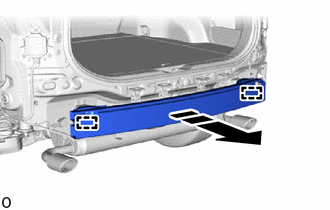

52023 21.REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

a.

Remove the 6 bolts.

b.

0,0 0,0 false

Remove in this Direction

Detach the guide and remove the rear bumper reinforcement sub-assembly as shown in the illustration.
