SEAT  FRONT SEAT ASSEMBLY(for SFTM Made Power Seat)  INSPECTION

0.115,0.115 0.427,0.271 0.313,0.156 10 false *a

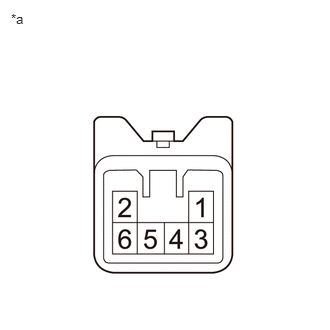

*a	Component without harness connected (Slide Motor (Front Seat Adjuster Assembly LH))

Check that the front seat adjuster assembly LH moves smoothly when the Auxiliary battery is connected to the slide motor connector terminals.

OK:

Auxiliary Battery Connection	Operational Direction
Auxiliary battery positive (+) → Terminal 4 Auxiliary battery negative (-) → Terminal 3	Forward
Auxiliary battery positive (+) → Terminal 3 Auxiliary battery negative (-) → Terminal 4	Backward

If the result is not as specified, replace the front seat adjuster assembly LH.

0.146,0.094 0.458,0.25 0.313,0.156 10 false *a

*a	Component without harness connected (Tilt Motor (Front Seat Adjuster Assembly LH))

Check that the front seat adjuster assembly LH moves smoothly when the Auxiliary battery is connected to the tilt motor connector terminals.

OK:

Auxiliary Battery Connection	Operational Direction
Auxiliary battery positive (+) → Terminal 3 Auxiliary battery negative (-) → Terminal 1	Upward
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Terminal 3	Downward

If the result is not as specified, replace the front seat adjuster assembly LH.

0.156,0.167 0.469,0.323 0.313,0.156 10 false *a

*a	Component without harness connected (Lifter Motor (Front Seat Adjuster Assembly LH))

Check that the front seat adjuster assembly LH moves smoothly when the Auxiliary battery is connected to the lifter motor connector terminals.

OK:

Auxiliary Battery Connection	Operational Direction
Auxiliary battery positive (+) → Terminal 3 Auxiliary battery negative (-) → Terminal 1	Upward
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Terminal 3	Downward

If the result is not as specified, replace the front seat adjuster assembly LH.

0.156,0.104 0.469,0.26 0.313,0.156 10 false *a

*a	Component without harness connected (Reclining Motor (Separate Type Front Seatback Spring Assembly))

Check that the separate type front seatback spring assembly moves smoothly when the Auxiliary battery is connected to the reclining motor connector terminals.

OK:

Auxiliary Battery Connection	Operational Direction
Auxiliary battery positive (+) → Terminal 3 Auxiliary battery negative (-) → Terminal 1	Forward
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Terminal 3	Backward

If the result is not as specified, replace the separate type front seatback spring assembly.

0.115,0.115 0.427,0.271 0.313,0.156 10 false *a

*a	Component without harness connected (Slide Motor (Front Seat Adjuster Assembly RH))

Check that the front seat adjuster assembly LH moves smoothly when the Auxiliary battery is connected to the slide motor connector terminals.

OK:

Auxiliary Battery Connection	Operational Direction
Auxiliary battery positive (+) → Terminal 3 Auxiliary battery negative (-) → Terminal 4	Forward
Auxiliary battery positive (+) → Terminal 4 Auxiliary battery negative (-) → Terminal 3	Backward

If the result is not as specified, replace the front seat adjuster assembly RH.

0.156,0.104 0.469,0.26 0.313,0.156 10 false *a

*a	Component without harness connected (Reclining Motor (Separate Type Front Seatback Spring Assembly))

Check that the separate type front seatback spring assembly moves smoothly when the Auxiliary battery is connected to the reclining motor connector terminals.

OK:

Auxiliary Battery Connection	Operational Direction
Auxiliary battery positive (+) → Terminal 3 Auxiliary battery negative (-) → Terminal 1	Forward
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Terminal 3	Backward

If the result is not as specified, replace the separate type front seatback spring assembly.
