INTERIOR PANELS / TRIM INSTRUMENT PANEL SAFETY PAD REASSEMBLY

Hide Display 55557A 1.INSTALL GLOVE COMPARTMENT DOOR CHECK CUSHION

a.

0,0 0,0 false

Install in this Direction

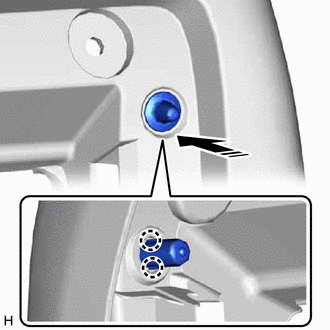

Attach the claw to install the glove compartment door check cushion.

HINT:: Use the same procedure to install the glove compartment door check cushion on the other side.

Hide Display 55349C 2.INSTALL INSTRUMENT PANEL CUSHION

a.

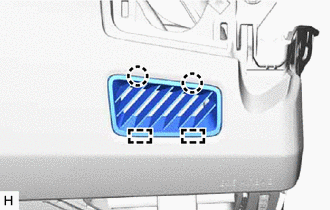

Install a new instrument panel cushion in the location shown in the illustration.

Hide Display 83107A 3.INSTALL NO. 1 METER BRACKET SUB-ASSEMBLY

a.

0,0 0,0 false

Screw <A>

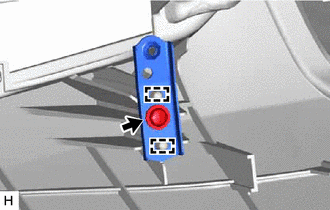

for LH Side:

Attach the guide to install the No. 1 meter bracket sub-assembly with the screw <A>.

b.

0,0 0,0 false

Screw <A>

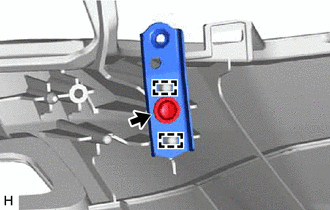

for RH Side:

Attach the guide to install the No. 1 meter bracket sub-assembly with the screw <A>.

Hide Display 55328 4.INSTALL NO. 1 INSTRUMENT PANEL PIN

a.

Attach the guide.

b.

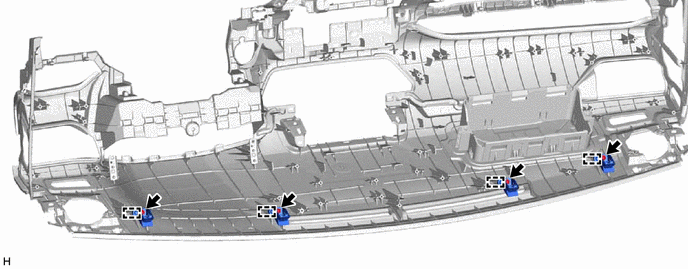

Install the 4 No. 1 instrument panel pins with the 4 screws <A>.

0,0 0,0 false

Screw <A>

-

Hide Display 55982 5.INSTALL NO. 2 DEFROSTER NOZZLE GARNISH

a.

Attach the guide and claw to install the No. 2 defroster nozzle garnish.

Hide Display 55981 6.INSTALL NO. 1 DEFROSTER NOZZLE GARNISH

a.

Attach the guide and claw to install the No. 1 defroster nozzle garnish.

Hide Display 82143 7.INSTALL NO. 3 INSTRUMENT PANEL WIRE

a.

Attach the clamp to install the No. 3 instrument panel wire.

Hide Display 89120A 8.INSTALL AUTOMATIC LIGHT CONTROL SENSOR

Click hereVehicle Exterior>LIGHTING (EXT)>AUTOMATIC LIGHT CONTROL SENSOR>INSTALLATION202304,202405,_59,_083096,_0402644,RM100000002MECS_01_0001,202405,202409,_59,_083096,_0402644,RM100000002MEBP_01_0001,202409,999999,_59,_083096,_0402644,RM100000002NTET_01_0001,

Hide Display 55041B 9.INSTALL NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY

a.

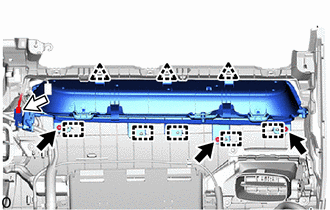

w/ Interior Illumination:

i.

0,0 0,0 false

	Screw <A>
	Connector

Attach the guide and clip to install the No. 1 instrument panel box door sub-assembly with the 3 screws <A>.

ii.

Connect the connector.

b.

0,0 0,0 false

Screw <A>

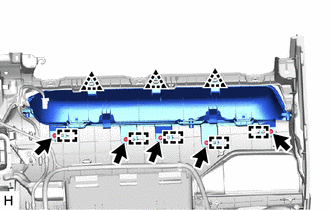

w/o Interior Illumination:

Attach the guide and clip to install the No. 1 instrument panel box door sub-assembly with the 5 screws <A>.

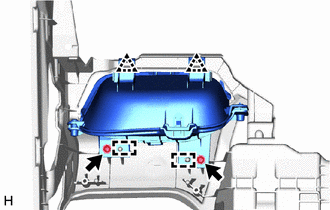

Hide Display 55042B 10.INSTALL NO. 2 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY

a.

0,0 0,0 false

Screw <A>

Attach the guide and clip to install the No. 2 instrument panel box door sub-assembly with the 2 screws <A>.

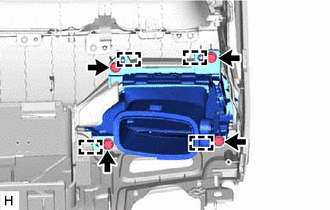

Hide Display 55670A 11.INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

a.

0,0 0,0 false

Screw <A>

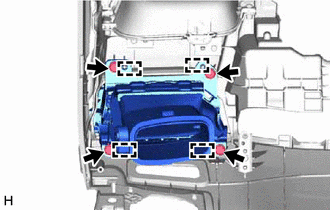

Attach the guide to install the center instrument panel register assembly with the 5 screws <A>.

Hide Display 86713 12.INSTALL TELEPHONE ECU WIRE (for Type A)

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE ANTENNA CORD>INSTALLATION202304,202405,_56,_083087,_0418276,RM1000000029SYD_02_0010,202405,999999,_56,_083087,_0418276,RM100000002LRB6_02_0010,

Hide Display 86203W 13.INSTALL RADIO WIRING SUB-ASSEMBLY (for Type B)

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE ANTENNA CORD>INSTALLATION202304,202405,_56,_083087,_0418276,RM1000000029SYD_02_0012,202405,999999,_56,_083087,_0418276,RM100000002LRB6_02_0012,

Hide Display 86101 14.INSTALL ANTENNA CORD SUB-ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO ANTENNA CORD (for Instrument Panel)>INSTALLATION202304,202405,_56,_083086,_0400675,RM1000000029SZO_01_0002,202405,999999,_56,_083086,_0400675,RM100000002LRB2_01_0002,

Hide Display 15.INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE ANTENNA (for Instrument Panel)>INSTALLATION202304,202405,_56,_083087,_0402583,RM1000000029SYJ_02_0003,202405,999999,_56,_083087,_0402583,RM100000002LRB4_02_0003,

Hide Display 73960A 16.INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT PASSENGER AIRBAG ASSEMBLY>INSTALLATION202304,202405,_58,_083100,_0400496,RM1000000029RS6_01_0294,202405,999999,_58,_083100,_0400496,RM100000002LW6S_01_0294,

Hide Display 55660 17.INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

a.

0,0 0,0 false

Screw <A>

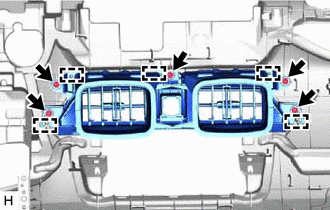

Attach the guide to install the No. 2 instrument panel register assembly with the 4 screws <A>.

Hide Display 55972C 18.INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT

a.

0,0 0,0 false

Screw <A>

Attach the guide to install the No. 2 side defroster nozzle duct with the screw <A>.

Hide Display 88995 19.INSTALL NO. 1 ION GENERATOR BRACKET (w/ Ion Generator)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>ION GENERATOR>INSTALLATION202304,202405,_58,_083104,_0586997,RM1000000029RL6_01_0022,202405,999999,_58,_083104,_0586997,RM100000002M71F_01_0022,

Hide Display 88051A 20.INSTALL ION GENERATOR SUB-ASSEMBLY (w/ Ion Generator)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>ION GENERATOR>INSTALLATION202304,202405,_58,_083104,_0586997,RM1000000029RL6_01_0031,202405,999999,_58,_083104,_0586997,RM100000002M71F_01_0031,

Hide Display 88905 21.INSTALL NO. 1 AIR PURIFIER WIRE SUB-ASSEMBLY (w/ Ion Generator, for SFTM Made)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>ION GENERATOR>INSTALLATION202304,202405,_58,_083104,_0586997,RM1000000029RL6_01_0032,202405,999999,_58,_083104,_0586997,RM100000002M71F_01_0032,

Hide Display 82144 22.INSTALL NO. 4 INSTRUMENT PANEL WIRE (w/ Ion Generator, for GTMC Made)

HINT:: Use the same procedure described as for the No. 1 air purifier wire sub-assembly.

Hide Display 87201N 23.INSTALL AIR DUCT SUB-ASSEMBLY (w/ Ion Generator)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>ION GENERATOR>INSTALLATION202304,202405,_58,_083104,_0586997,RM1000000029RL6_01_0023,202405,999999,_58,_083104,_0586997,RM100000002M71F_01_0023,

Hide Display 55086 24.INSTALL NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY

a.

w/o Ion Generator:

i.

0,0 0,0 false

Screw <A>

Attach the guide to install the No. 3 heater to register duct sub-assembly with the 2 screws <A>.

b.

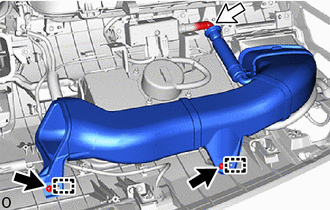

w/ Ion Generator:

i.

0,0 0,0 false

	Screw <A>
	Hose

Attach the hose.

ii.

Attach the guide to install the No. 3 heater to register duct sub-assembly with the 2 screws <A>.

Hide Display 55962D 25.INSTALL NO. 2 SIDE DEFROSTER NOZZLE

a.

Attach the guide and claw to install a new No. 2 side defroster nozzle.

Hide Display 55650 26.INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

a.

0,0 0,0 false

Screw <A>

Attach the guide to install the No. 1 instrument panel register assembly with the 4 screws <A>.

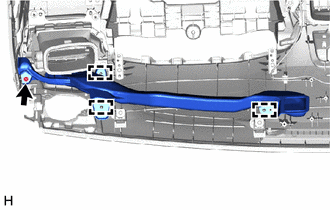

Hide Display 55971C 27.INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT

a.

0,0 0,0 false

Screw <A>

Attach the guide to install the No. 1 side defroster nozzle duct with the screw <A>.

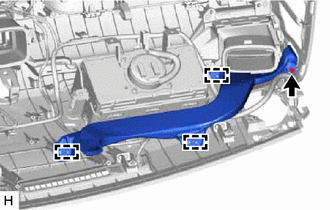

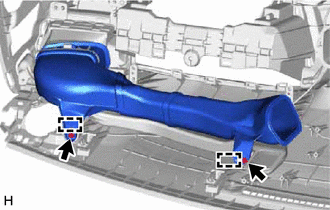

Hide Display 55084E 28.INSTALL NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY

a.

0,0 0,0 false

Screw <A>

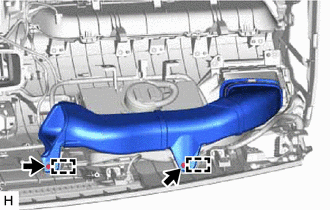

Attach the guide to install the No. 1 heater to register duct sub-assembly with the 2 screws <A>.

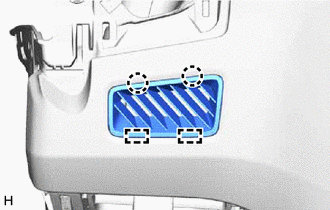

Hide Display 55961B 29.INSTALL NO. 1 SIDE DEFROSTER NOZZLE

a.

Attach the guide and claw to install a new No. 1 side defroster nozzle.

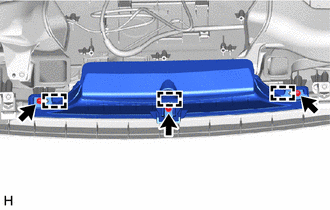

Hide Display 55950G 30.INSTALL DEFROSTER NOZZLE ASSEMBLY

a.

0,0 0,0 false

Screw <A>

Attach the guide to install the defroster nozzle assembly with the 3 screws <A>.
