RM36D0EC _52 Drivetrain _138817 K121F CVT _0584996 DIFFERENTIAL CASE A

K121F CVT  DIFFERENTIAL CASE  REASSEMBLY


PROCEDURE

Hide 41221 1.INSTALL FRONT DIFFERENTIAL RING GEAR

a.

Temporarily install the front differential ring gear to the differential case sub-assembly with the 12 bolts.


b.
C399101

Secure the front differential ring gear in a vise between aluminum plates.

NOTICE:

Be careful not to damage the front differential ring gear in the vise.



c.

Tighten the 12 bolts.

Torque:
102 N*m (1040 kgf*cm, 75 ft.*lbf)


Hide 2.INSTALL FRONT DRIVE SHAFT OIL SEAL RH

a.

Coat the lip of a new front drive shaft oil seal RH with MP grease.


b.

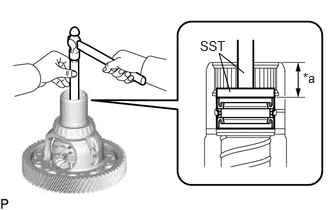

C402347C01
2.396,0.958 2.281,0.552 2.281,0.552 2.542,0.76 false 2.083,0.396 2.542,0.594 0.458,0.198 10 false SST 3.156,0.729 3.427,0.927 0.271,0.198 10 false *a
*a Depth


Using SST and a hammer, install the front drive shaft oil seal RH.

SST
09950-60011  (09951-00410)
09950-70010  (09951-07200)

Oil seal drive in depth:

24.5 to 25.5 mm (0.965 to 1.004 in.)


NOTICE:
·

Make sure to install the front drive shaft oil seal RH as specified, otherwise malfunctions such as a fluid leak will occur.

·

Do not damage the lip of the front drive shaft oil seal RH.

·

Do not remove the grease from the lip of the front drive shaft oil seal RH.
